                                                                                  POE 1*FE(802.3at) Fiber Media Converter

                                                                                  Type:POE2001-at Message

                                                                                  Description:1 *FE fiber optic transceivers，802.3at POE function，Output power ＞25.5W

                                                                                  Product Description
                                                                                                This series of products are IEEE802.3 Ethernet media converter, can realize transformation between 1 10/100Base-T twisted pair and 100Base-FX fiber optic medium or extension of the network transmission, mainly used for fiber optic network distance (20/40/60/80/120 km) transmission.
                                                                                                 Ethernet port to provide IEEE802.3at power supply function, supported by the wireless access point 5 Ethernet cable (AP) power supply or IP phones and other devices.
                                                                                  Functional Properties
                                                                                  ? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
                                                                                  ? device provides an Ethernet port, an Ethernet optical port;
                                                                                  ? PSE power company for Ti chip, high stability;
                                                                                  ? Ethernet port supports standard IEEE802.3at Power;
                                                                                  ? Ethernet port maximum power 15.4W;
                                                                                  ? support full and half duplex network communication, with auto-negotiation capability;

                                                                                  ? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching

                                                                                        switches used to support up to 1600-byte Ethernet packets;


                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm, 1550nm

                                                                                      Interface rate:              100 M, half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u Ethernet POE characteristics
                                                                                      PoE standard: IEEE 802.3af (port output power 15.4W)
                                                                                      PoE type: the end of cross connection (optional for mid span)

                                                                                      PoE port: port output power of 15.4W (IEEE802.3af)
                                                                                      PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)

                                                                                  u   Power

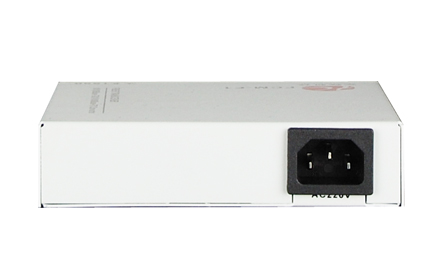

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       136X131X31mm( WX DXH))

                                                                                     Piece Weight: 1KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

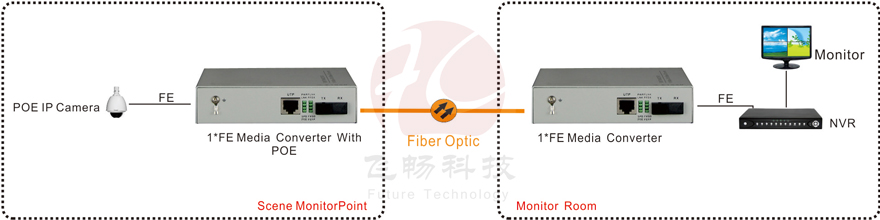

                                                                                  Application Scheme

                                                                                  Applications
