                                                                                  Industrial 5-port FE Switch

                                                                                  Type: FCJG-F5 Message

                                                                                  Description:This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail a

                                                                                  Product Description
                                                                                      This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail and wall mounted two kinds of installation.
                                                                                  Functional Properties
                                                                                  ◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
                                                                                  ◆ The device provides 5*100M Ethernet electrical interface supports 10/100M adaptive full/half duplex mode MDI / MDI-X automatic detection;
                                                                                  ◆ The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;
                                                                                  ◆ Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;
                                                                                  ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 1916 bytes of Ethernet packets;
                                                                                  ◆ Support a wide range of 9-55V AC and DC power input;
                                                                                  ◆ Support internal isolation redundant dual power input;
                                                                                  ◆ Power supply support overload protection anti-reverse protection;
                                                                                  ◆ Meet the requirements of industrial four electromagnetic compatibility;
                                                                                  ◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
                                                                                  ◆ No fan efficient cooling reduce the repair time;
                                                                                  ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

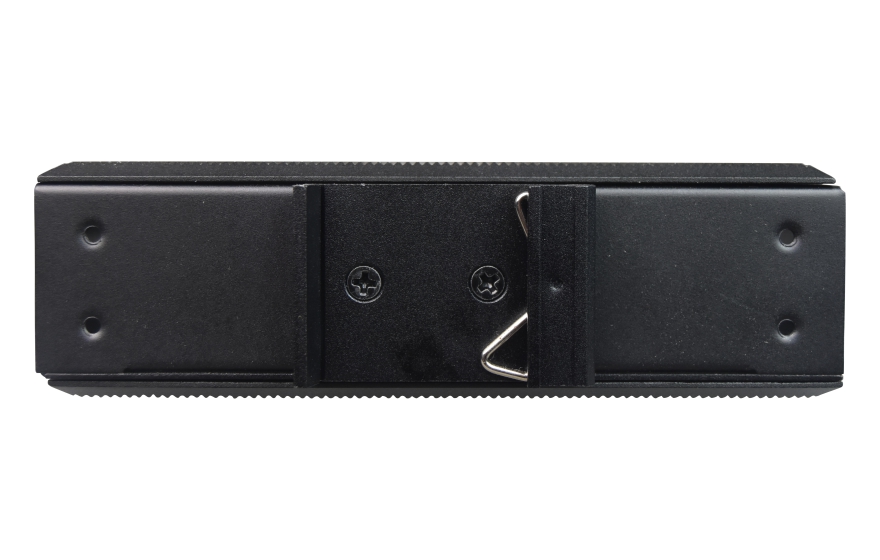

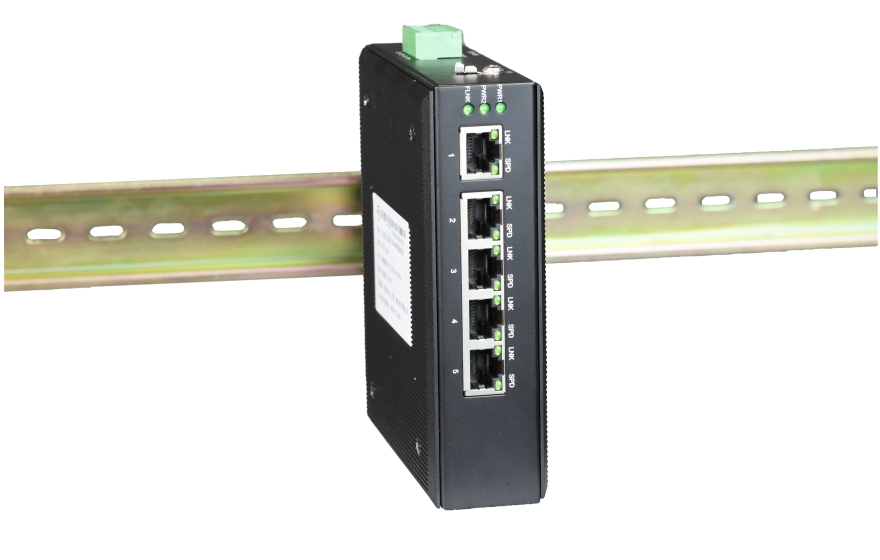

                                                                                  ◆ Rail or wall mounted;
                                                                                  ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
                                                                                  Technical Parameters
                                                                                  ◆  E1 Interface
                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;
                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Allowed Attenuation:   0~6dBm
                                                                                  ◆  Ethernet interface (10/100M)
                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation
                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                      MAC Address Capability: 4096
                                                                                      Connector:                  RJ45 support Auto-MDIX
                                                                                  ◆  Power
                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V
                                                                                      Power consumption: ≤10W
                                                                                  ◆  Dimension
                                                                                      Product Size: Mini Type    216X140X31mm(WXDXH)
                                                                                              Simple packaging:   274X193X84mm(WXDXH)
                                                                                              Piece Weight :    1.25KG
                                                                                  ◆  Working environment
                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)
                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

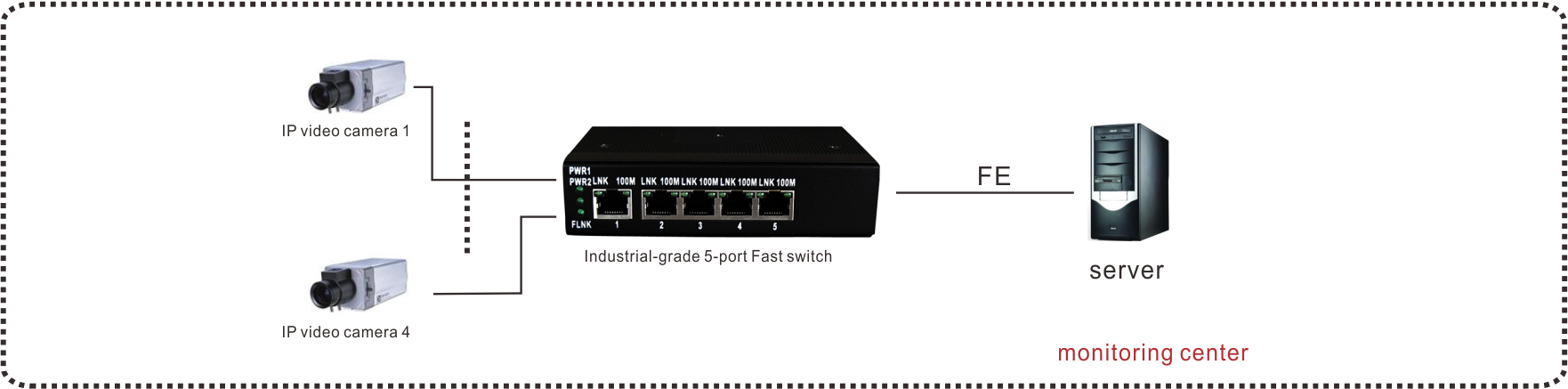

                                                                                  Application Scheme
                                                                                  DataSheet Download
                                                                                  ?
