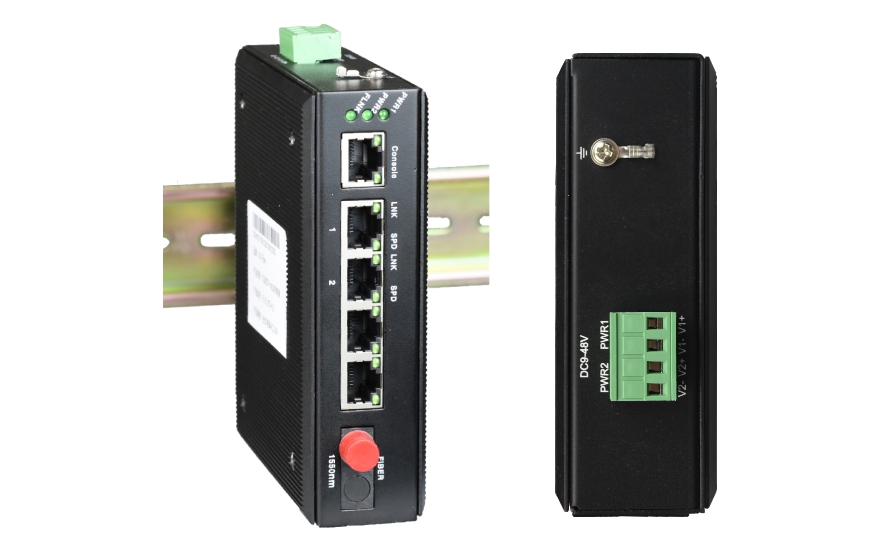

                                                                                  Managed 2* GE Fiber Media Converter

                                                                                  Type:FCMG-G2N Message

                                                                                  Description:This series of products are industrial grade conversion between 2*10/100/1000base-T and 1000base-X twisted pair fiber media or extended network transmission fiber conversion optical fiber network is mainly used for long-distance transmissi

                                                                                  Product Description
                                                                                      This series of products are industrial grade conversion between 2*10/100/1000base-T and 1000base-X twisted pair fiber media or extended network transmission fiber conversion optical fiber network is mainly used for long-distance transmission (20/40/60/80/100 km). This product provides 1 Gigabit ports 2 Gigabit Ethernet port. The utility model has the advantages of perfect alarm function stable and reliable work low power consumption high integration degree and small size.
                                                                                      Ethernet switch chip +FPGA scheme based on OAM frame with remote management function support Console  /WEB/Independent SNMP Manager and 2U can also be inserted with SNMP network 1*GE optical transceiver card 1 electrical interconnection energy management to the equipment in SNMP software;
                                                                                  Functional Properties
                                                                                  ◆ The industrial Ethernet series is designed for harsh industrial environments;

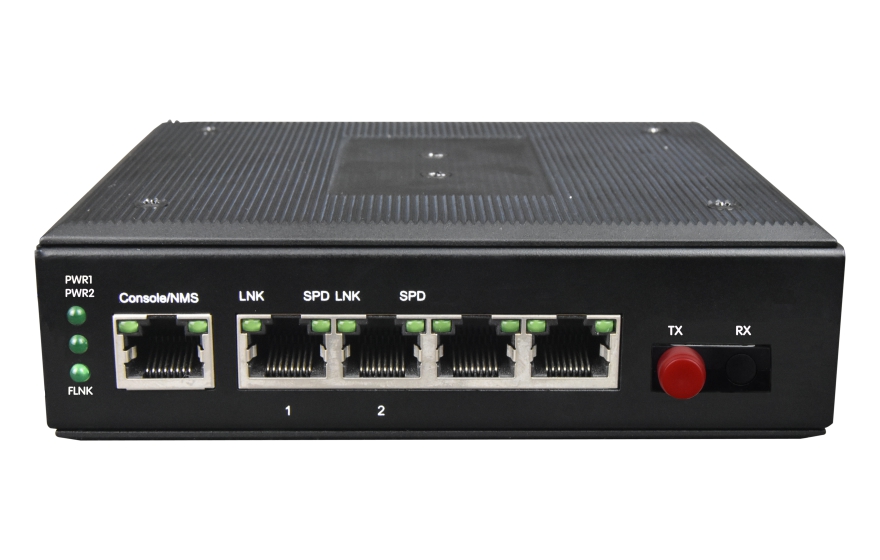

                                                                                  ◆ The equipment offers 2 Gigabit Ethernet port 1 Gigabit interface an optional Console/SNMP network port;
                                                                                  ◆ The electrical interface (RJ45 interface) supports 10/100/1000M adaptation full / half duplex mode and MDI/MDI-X automatic detection;
                                                                                  ◆ Optical interface supports multimode fiber single-mode fiber double double optical fiber transmission mode of three kinds of fiber the optional SC/ST/FC/LC interface;
                                                                                  ◆ It has the functions of broadcast storm protection balanced flow isolation conflict detection error and self reset of crash. It is suitable for video transmission and other large flow data applications;
                                                                                  ◆ The built-in 1MBits high-speed transceiver can transmit images to avoid caching stuck phenomenon IP camera monitoring screen in a rapidly changing environment caused by;
                                                                                  ◆ Support for VLAN ultra long packet transmission and can be used to support the IEEE802.1Q protocol switch products support for the largest 10K bytes of Ethernet package;
                                                                                  ◆ +FPGA scheme for Ethernet switch chip equipment with remote OAM management frame function and 2U card with SNMP network 1 optical transceiver card 1 electrical interconnection SNMP software can manage the equipment; can also support Console (CLI) /WEB / SNMPnetwork management independently;
                                                                                  ◆ The network management real-time view and management of the end and the end of the Ethernet interface state and settings; equipment with power down detection function can detect when the optical signal lost for the terminal device power loss or optical fiber impassability;
                                                                                  ◆ Supports wide range 9-55V AC and DC power input;
                                                                                  ◆ Support for internal isolation redundant dual power input;
                                                                                  ◆ The power supply supports overload protection and anti reverse connection protection;
                                                                                  ◆ Comply with industrial grade four electromagnetic compatibility requirements;
                                                                                  ◆ Super lightning protection function: against lightning resistance induction high voltage anti surge etc.;
                                                                                  ◆ No fan high heat dissipation reduced repair time;
                                                                                  ◆ Anodized aluminum housing IP40 protection level able to withstand the harsh environment test;

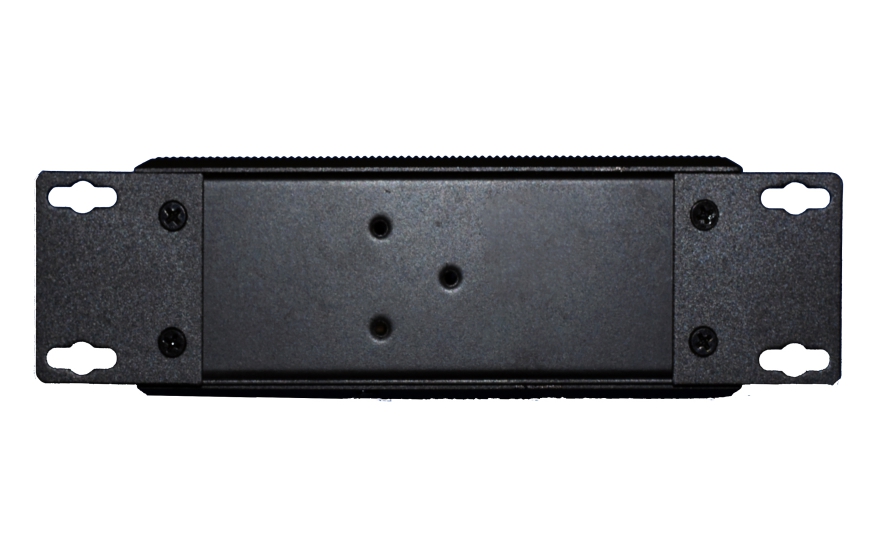

                                                                                  ◆ Rail or wall mounting;
                                                                                  ◆ Wide temperature range: working temperature -40 degrees ~ +85 degrees centigrade;
                                                                                  ◆ All models are tested by 100% toaster guarantee period: 5 years;
                                                                                  Technical Parameters
                                                                                  ◆  E1 Interface
                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;
                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Allowed Attenuation:   0~6dBm
                                                                                  ◆  Ethernet interface (10/100M)
                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation
                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                      MAC Address Capability: 4096
                                                                                      Connector:                  RJ45 support Auto-MDIX
                                                                                  ◆  Power
                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V
                                                                                      Power consumption: ≤10W
                                                                                  ◆  Dimension
                                                                                      Product Size: Mini Type    216X140X31mm(WXDXH)
                                                                                              Simple packaging:   274X193X84mm(WXDXH)
                                                                                              Piece Weight :    1.25KG
                                                                                  ◆  Working environment
                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)
                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

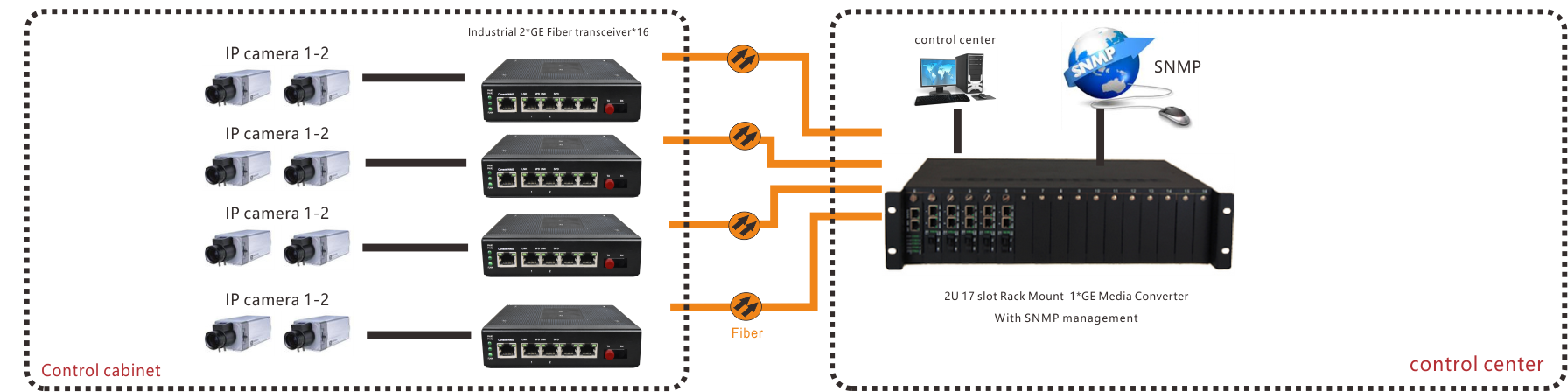

                                                                                  Application Scheme
