                                                                                  Managed 4*FE+4*100base-FX+1*1000base-X Ethernet Swi

                                                                                  Type: Message

                                                                                  Description:This series of products to provide industrial-grade 4*FE +4*100base-FX to 1*1000base-X conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission. share1000M bandwidth each channel can be set through the Con

                                                                                  Product Description
                                                                                      This series of products to provide industrial-grade 4*FE +4*100base-FX to 1*1000base-X conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission. share1000M bandwidth each channel can be set through the Console port (Ethernet interface for the exchange port can support VLAN division) that logic Isolation; 1 console port.
                                                                                  Functional Properties
                                                                                  ◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
                                                                                  ◆ Equipment to provide 4*FE 4*100base-FX 1 Gigabit optical port an optional Console / SNMP network management port;
                                                                                  ◆ Electrical interface (RJ45 interface) support 10 / 100M adaptive full / half duplex mode MDI / MDI-X automatic detection;
                                                                                  ◆ Optical interface to support multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode SC / ST / FC / LC interface optional;
                                                                                  ◆ With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;
                                                                                  ◆ Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
                                                                                  ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
                                                                                  ◆ Equipment for the Ethernet switch chip + FPGA program with remote OAM management frame function with 2U card with SNMP network management 1*GE optical transceiver card interconnection SNMP software can manage to the device; can also support the Console (CLI) /WEB/ independent SNMP network management;
                                                                                  ◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
                                                                                  ◆ Support a wide range of 9-55V AC and DC power input;
                                                                                  ◆ Support internal isolation redundant dual power input;
                                                                                  ◆ Power supply support overload protection anti-reverse protection;
                                                                                  ◆ Meet the requirements of industrial four electromagnetic compatibility;
                                                                                  ◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
                                                                                  ◆ No fan efficient cooling reduce repair time;
                                                                                  ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

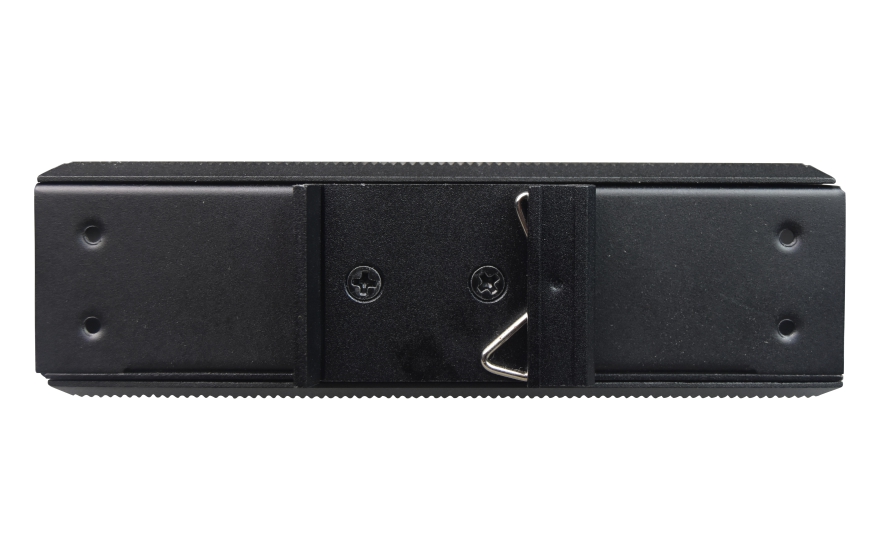

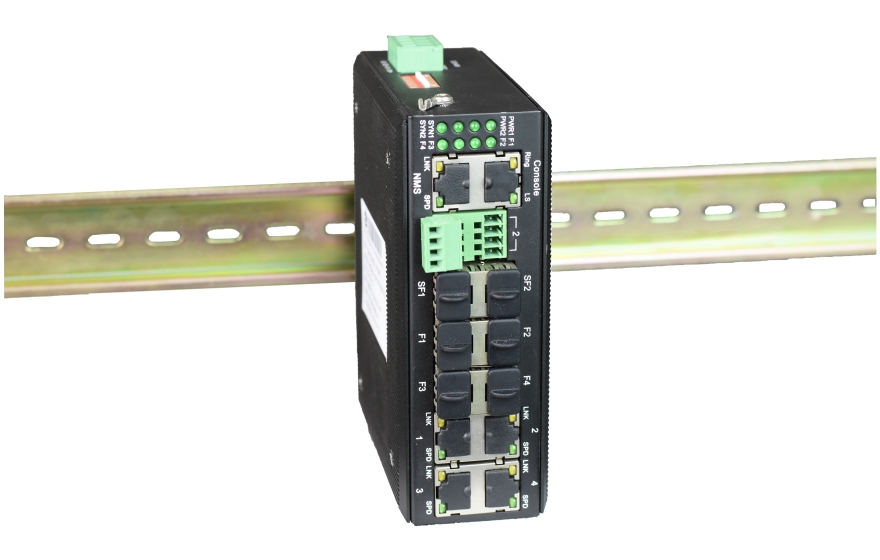

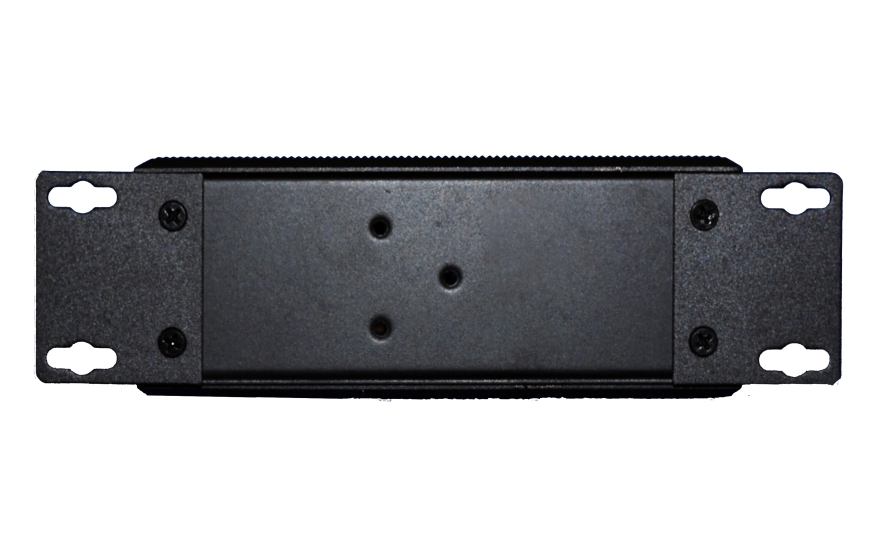

                                                                                  ◆ Rail or wall mounted;
                                                                                  ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
                                                                                  ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
                                                                                  Technical Parameters
                                                                                  ◆  E1 Interface
                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;
                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Allowed Attenuation:   0~6dBm
                                                                                  ◆  Ethernet interface (10/100M)
                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation
                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                      MAC Address Capability: 4096
                                                                                      Connector:                  RJ45 support Auto-MDIX
                                                                                  ◆  Power
                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V
                                                                                      Power consumption: ≤10W
                                                                                  ◆  Dimension
                                                                                      Product Size: Mini Type    216X140X31mm(WXDXH)
                                                                                              Simple packaging:   274X193X84mm(WXDXH)
                                                                                              Piece Weight :    1.25KG
                                                                                  ◆  Working environment
                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)
                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

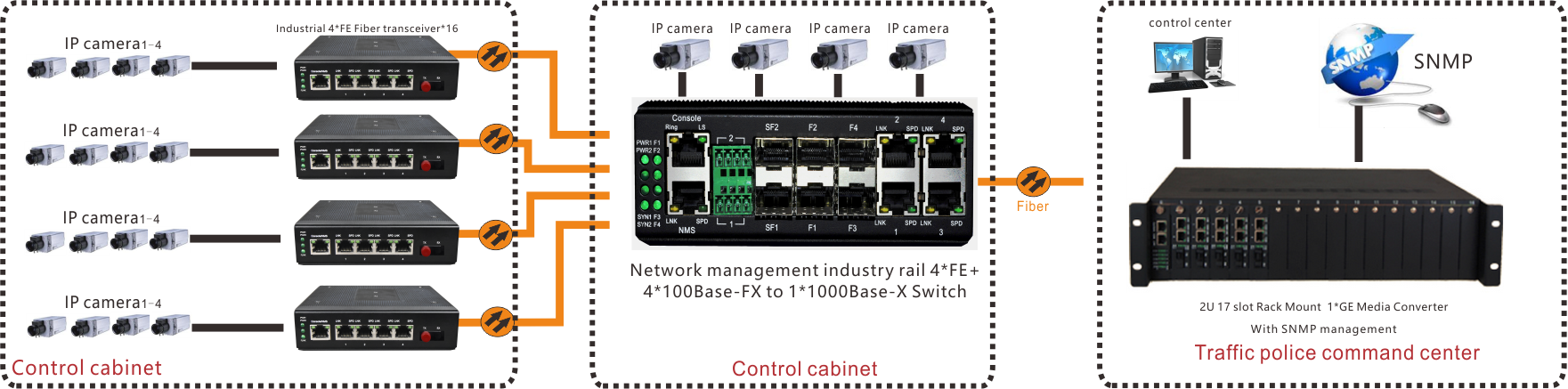

                                                                                  Application Scheme
