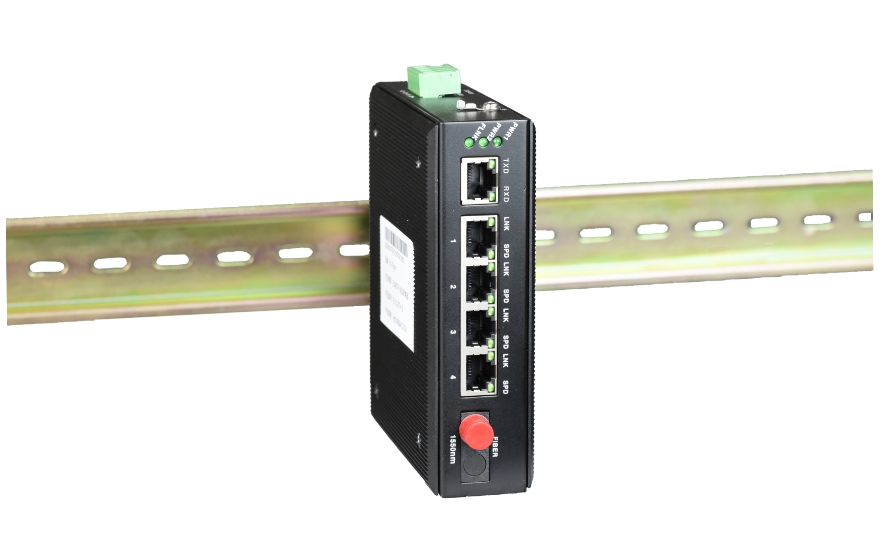

                                                                                  Managed Industrial 4*FE+1*Serial Switch

                                                                                  Type:FCMG-F4R1N Message

                                                                                  Description:This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission. The device is based on the Ethernet switching chip

                                                                                  Product Description
                                                                                      This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission.
                                                                                  The device is based on the Ethernet switching chip + FPGA program with a strong local and remote management functions;
                                                                                  Functional Properties
                                                                                  ◆ Industrial rail design designed for harsh and harsh industrial environments;
                                                                                  ◆ Equipment to provide 4*FE 1*RS232/422/485 serial interface 1 channel 100M optical Ethernet interface the total transmission bandwidth for the wire speed 100M;
                                                                                  ◆ Electrical port 10 / 100Mbps adaptive electrical port MDI / MDI-X adaptive without manual adjustment;
                                                                                  ◆ Switch built-in 512Kbit MP-SSRAM high-speed memory non-blocking design a crash from the reset function suitable for video transmission and other large traffic data applications;
                                                                                  ◆ based on FPGA + ARM design with a strong local and remote management functions can be connected with the 2U card device you can configure the SNMP network management card management;
                                                                                  ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
                                                                                  ◆ With broadcast storm protection balance flow isolation conflict and detection errors and other functions;
                                                                                  ◆ Ethernet interface with serial data with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short circuit current wave 10/700μs open peak output voltage 6KV standard;
                                                                                  ◆ Provide 1*RS232/485/422 interface optional RS232/485/422 channel can be transmitted from 0-115200 baud rate serial data;
                                                                                  ◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
                                                                                  ◆ Support a wide range of 9-55V AC and DC power input;
                                                                                  ◆ Support internal isolation redundant dual power input;
                                                                                  ◆ Power supply support overload protection anti-reverse protection;
                                                                                  ◆ Meet the requirements of industrial four electromagnetic compatibility;
                                                                                  ◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
                                                                                  ◆ No fan efficient cooling reduce repair time;
                                                                                  ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

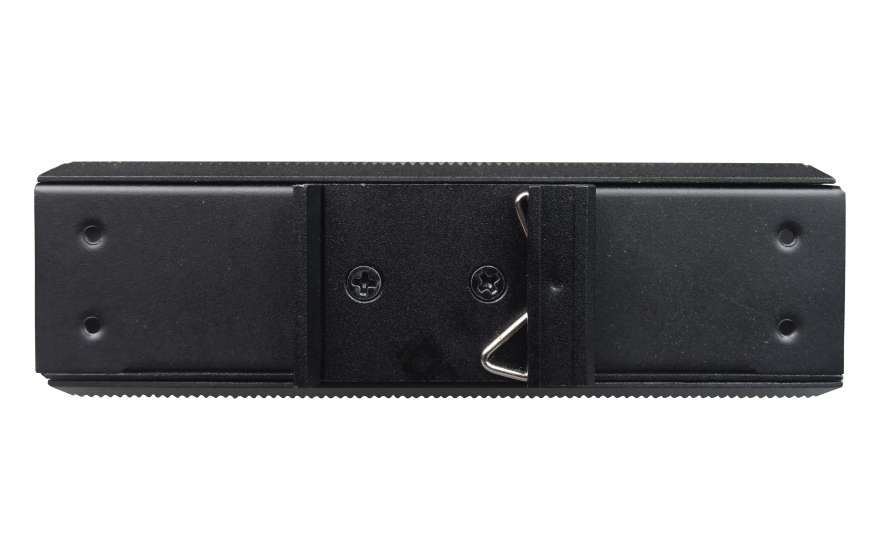

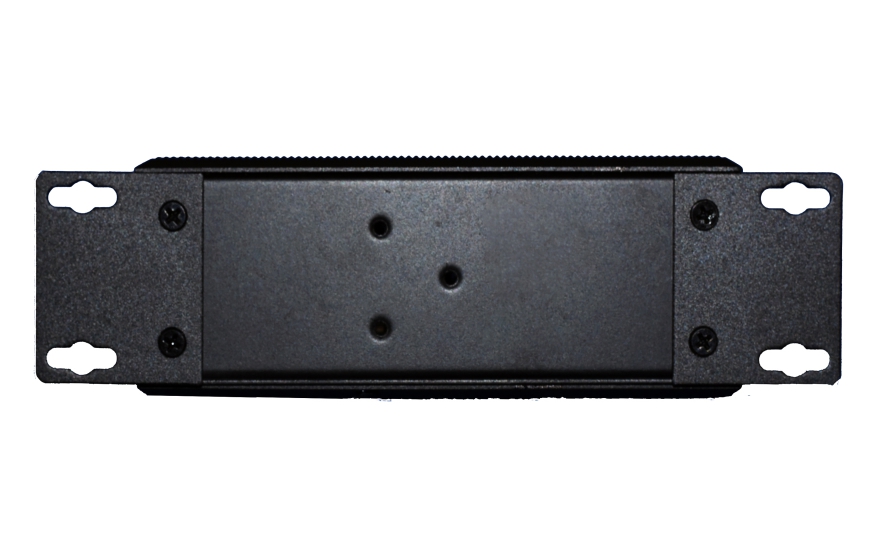

                                                                                  ◆ Rail or wall mounted;
                                                                                  ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
                                                                                  ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
                                                                                  Technical Parameters
                                                                                  ◆  E1 Interface
                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;
                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Allowed Attenuation:   0~6dBm
                                                                                  ◆  Ethernet interface (10/100M)
                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation
                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                      MAC Address Capability: 4096
                                                                                      Connector:                  RJ45 support Auto-MDIX
                                                                                  ◆  Power
                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V
                                                                                      Power consumption: ≤10W
                                                                                  ◆  Dimension
                                                                                      Product Size: Mini Type    216X140X31mm(WXDXH)
                                                                                              Simple packaging:   274X193X84mm(WXDXH)
                                                                                              Piece Weight :    1.25KG
                                                                                  ◆  Working environment
                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)
                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

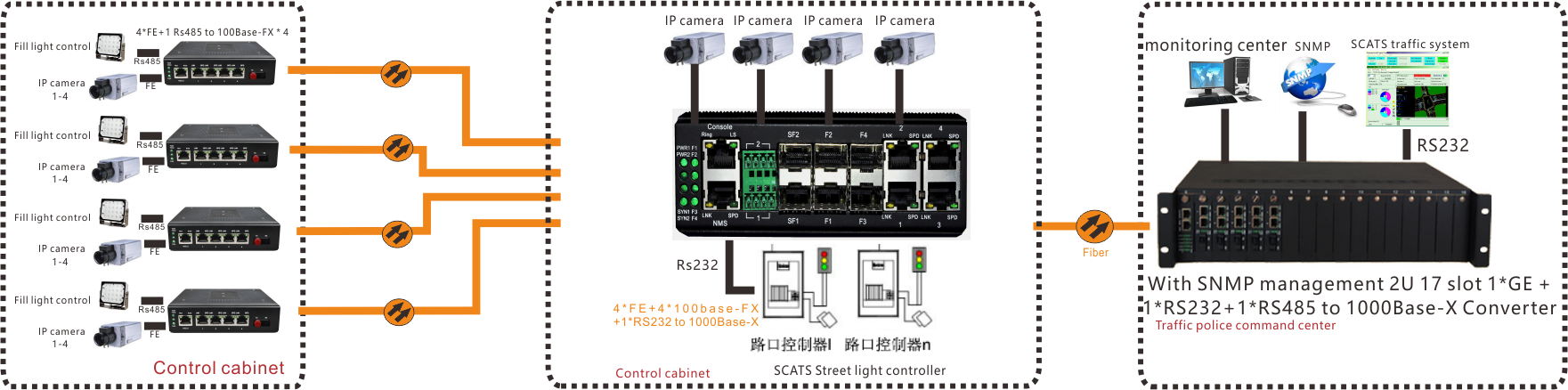

                                                                                  Application Scheme
                                                                                  DataSheet Download
                                                                                  ?
