                                                                                  Phy- Isolated 4* GE Fiber Media Converter

                                                                                  Type:FCMG-G4pN Message

                                                                                  Description:This equipment provides 4*isolated wire-speed 1000M Ethernet paths in one optical direction (single or dual fiber) providing a total bandwidth of bi-directional 4*1000M which is ideal for building both intranet and public information Netw

                                                                                  Product Description
                                                                                      This equipment provides 4*isolated wire-speed 1000M Ethernet paths in one optical direction (single or dual fiber) providing a total bandwidth of bi-directional 4*1000M which is ideal for building both intranet and public information Network and need 4 high degree of network isolation occasions but also particularly suitable for fiber optic cable resources are extremely tense at the same time require a lot of independent Ethernet path of the occasion.
                                                                                      The device is based on an Ethernet switch chip+FPGA solution with remote OAM frame management functions and supports Console/WEB/Independent SNMP management. It can also be interconnected with a 4U card-type  transceiver with SNMP  management SNMP software to manage this device;
                                                                                  Functional Properties
                                                                                  ◆ Industrial Ethernet series designed for harsh industrial environments
                                                                                  ◆ The device provides 4*GE ports 1*5G optical port an optional Console/SNMP network management port;
                                                                                  ◆ For network switches to provide link aggregation channel the two-way bandwidth of 4*1000M the same fiber optic line transmission of four GE network services;
                                                                                  ◆ Optical interface supports three optical fiber transmission modes of multimode dual fiber single mode dual fiber single mode single fiber SC / ST / FC / LC interface optional;
                                                                                  ◆ With broadcast storm protection balance of traffic isolation and conflict detection errors and crash self-reset and other functions suitable for video transmission and other large data applications;
                                                                                  ◆ Supports the transmission of long data packets in VLAN and can be used with switch products that support IEEE802.1Q protocol to support Ethernet packets up to 10K bytes.
                                                                                  ◆ The device is an Ethernet switch chip + FPGA solution with remote OAM management frame function and can be interconnected with a 4U card with SNMP network management. SNMP software can manage this device.
                                                                                  ◆ The NMS can view and manage the interface status and settings of the local Ethernet interface and the remote Ethernet interface in real time. The device can detect the power-off of the Ethernet interface when the optical signal is lost or the fiber fails.
                                                                                  ◆ Support a wide range of 9-55V AC and DC power input;
                                                                                  ◆ Support internal isolation redundant dual power input;
                                                                                  ◆ Power supply support overload protection anti-reverse protection
                                                                                  ◆ Meet the industrial four electromagnetic compatibility requirements;
                                                                                  ◆ Super lightning protection function: lightning protection anti-induced high voltage anti-surge and so on;
                                                                                  ◆ Fanless efficient cooling reduce repair time;
                                                                                  ◆ Anodized aluminum housing IP40 degree of protection able to withstand the harsh environment test;

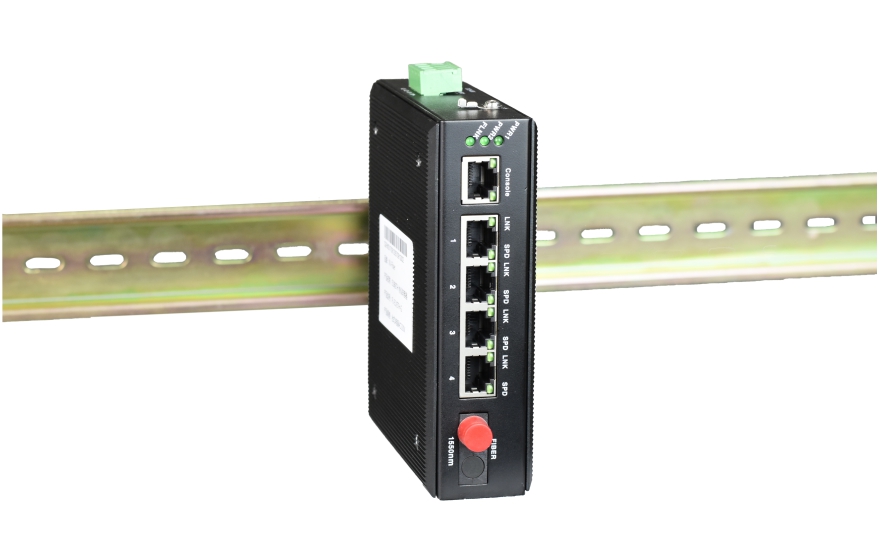

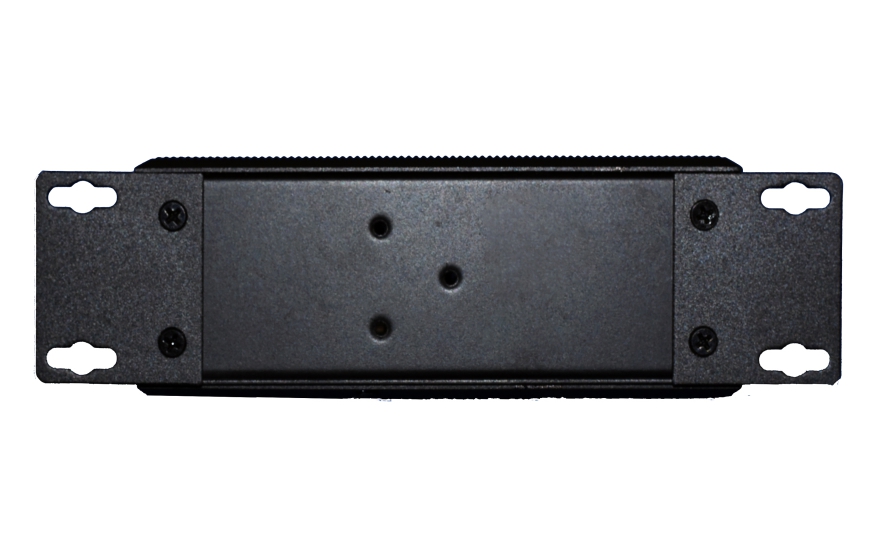

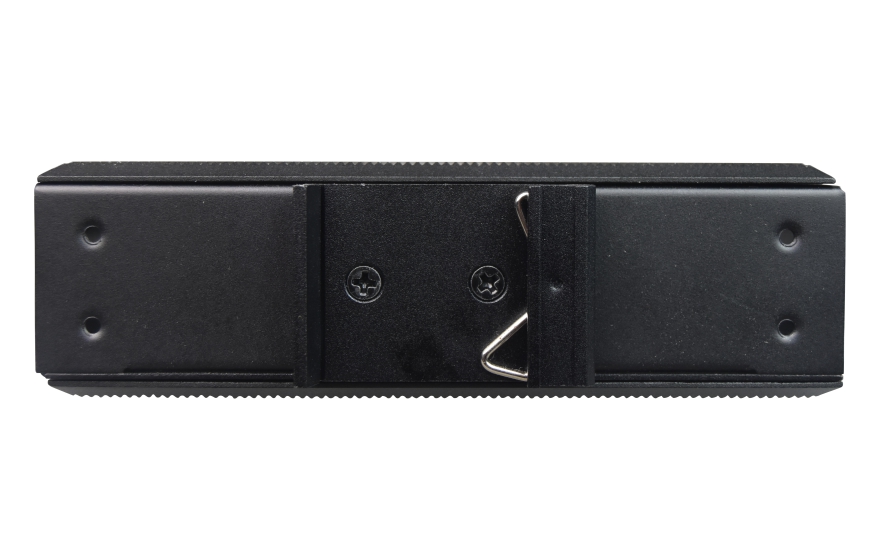

                                                                                  ◆ Rail or wall-mounted
                                                                                  ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
                                                                                  ◆ All models are 100% baked machine test the warranty period: 5 years;
                                                                                  Technical Parameters
                                                                                  ◆  E1 Interface
                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;
                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Allowed Attenuation:   0~6dBm
                                                                                  ◆  Ethernet interface (10/100M)
                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation
                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                      MAC Address Capability: 4096
                                                                                      Connector:                  RJ45 support Auto-MDIX
                                                                                  ◆  Power
                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V
                                                                                      Power consumption: ≤10W
                                                                                  ◆  Dimension
                                                                                      Product Size: Mini Type    216X140X31mm(WXDXH)
                                                                                              Simple packaging:   274X193X84mm(WXDXH)
                                                                                              Piece Weight :    1.25KG
                                                                                  ◆  Working environment
                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)
                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

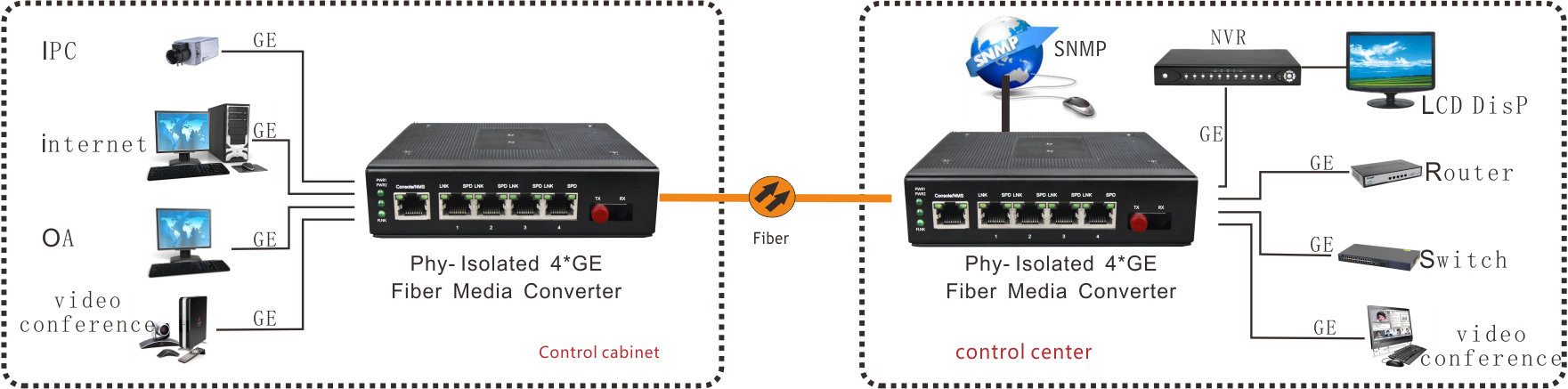

                                                                                  Application Scheme
                                                                                  DataSheet Download
                                                                                  ?
