                                                                                  E1-4 Channel RS232/RS422/RS485 Convertet

                                                                                  Type:FCC-E1D4/R4/Q4 Message

                                                                                  Description:E1-4RS232/422/485 Converter , provides three interfaces Optional ， Used in pairs , Serial port rate up to56.7Kbps

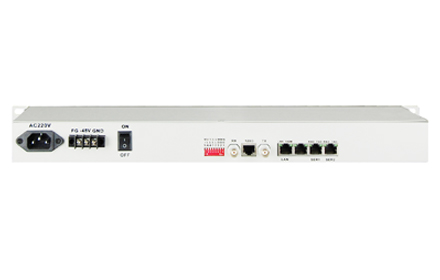

                                                                                  Product Description
                                                                                                This interface converter is based on FPGA, providing 4Channel RS232/485/422 transmission on E1 interface. The product breaks through contradictions between traditional serial interface communication distance and communication rate, besides, it also can solve electromagnetic interference, ground ring interference and lightning damage. The device greatly improves reliability, security and confidentiality of data communication. It is widely used for various industrial control, process control and traffic control occasions, especially for Bank, and Power and other sectors and systems which have special requirements of electromagnetic interference environment. RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud rate.
                                                                                  Functional Properties
                                                                                  ? Based on self -copyright IC
                                                                                  ?   Support 3 line RS232 (TXD,RXD,GND), support for flow control CD,DSR,CTS

                                                                                  ?   Have three Loop Back Mode: E1 interface Loop Back (ANA)、RS232/485/422 interface Loop  Back(DIG)、

                                                                                        Command the remote RS232/485/422 interface Loop Back(REM)

                                                                                  ?   RS232/RS485/RS422 supports hot-plug, supports DTE or DCE device interconnection
                                                                                  ?   RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud  rate
                                                                                  ?   Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester

                                                                                  ?   Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV,    Impedance (2 Ohm),

                                                                                       CM(Common Mode): 6KV, Impedance (2 Ohm) standard

                                                                                  ?  Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
                                                                                  ?  AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free
                                                                                  Technical Parameters

                                                                                  u   Ethernet interface

                                                                                      Interface Standard:  comply with protocol G.703;

                                                                                      Interface Rate:  2048Kbps±50ppm;

                                                                                      Interface Code: HDB3;

                                                                                      Impedance:   75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance: In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation: 0~6dBm

                                                                                  u   Serial interface

                                                                                      Standard

                                                                                      EIA/TIA-232 RS-232 (ITU-T V.28)

                                                                                      EIA/TIA-422 RS-422 (ITU-T V.11)

                                                                                      EIA/TIA-485 RS-485 (ISO/IEC8284)

                                                                                      Serial Interface

                                                                                      RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

                                                                                      RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

                                                                                      RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

                                                                                      RS-232: RXD, TXD, Signal Ground

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤3W

                                                                                  u   Dimension

                                                                                      Product size:        216X140X31mm(WXDXH)
                                                                                      Simple packaging:  274X193X84mm(WXDXH)
                                                                                      Piece weight : 1.25KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity: 5%~95 % (no condensation)
                                                                                      Storage temperature: -40°C ~ 80°C
                                                                                      Storage Humidity: 5%~95 % (no condensation)

                                                                                  Application Scheme

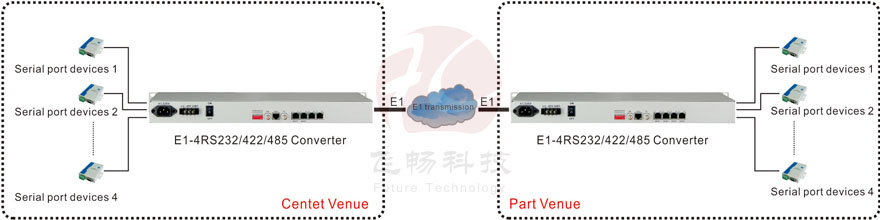

                                                                                  Applications 1

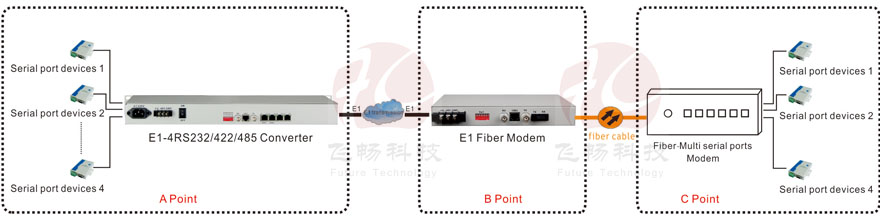

                                                                                  Applications 2




                                                                                  DataSheet Download
                                                                                  ?
