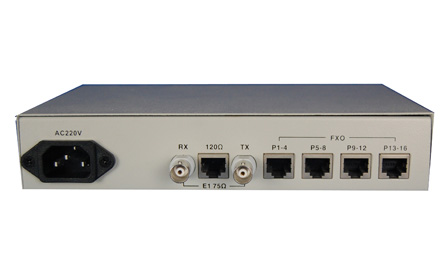

                                                                                  E1-16*POTS Fiber Mux(Desktop Tpye)

                                                                                  Type:FCC-E1O16/FCC-E1S16 Message

                                                                                  Description:E1-16 * telephoneDesktop Tpye Support 4U rackmount SNMP

                                                                                  Product Description
                                                                                                This device is a desktop there 4U rack card type which provides telephone outputs 1-16 Equipment electrical part for the whole digital circuits machine reliability stability low power consumption high integration small size easy installation and maintenance. Many customers are telecommunications operators E1 leased lines used in computer networking this equipment can be rented at the E1 line opened a few road phone you can make free calls between headquarters and branch offices of this.
                                                                                  Functional Properties

                                                                                  ◆   based on proprietary integrated circuits;

                                                                                  ◆   alarm status can be monitored on the end;

                                                                                  ◆   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;

                                                                                  ◆   support FXO port and  FXS ports wire 2  audio interface FXO port and PBX docking port and

                                                                                        the user is connected to FXS telephone;

                                                                                  ◆   16 * voice access support caller ID function and reverse polarity billing functions;

                                                                                  ◆   Support Telephone Number mutual function of each site;

                                                                                  ◆   E1 signal can be detected as a barrier to the end device is lost or shut E1;

                                                                                  ◆   provide two kinds of clock ways: E1 master clock E1 line clock;

                                                                                  ◆   multiple power mode options: AC220V DC-48V / DC24V etc;

                                                                                  Technical Parameters

                                                                                  ◆  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  ◆  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  ◆   Dimension

                                                                                      Product Size:    Mini Type    216X140X42mm(WXDXH)

                                                                                      Simple packaging:  mini   274X193X84mm(WXDXH)

                                                                                      Piece Weight :    mini 1KG / 19inch  2.4KG

                                                                                   ◆  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

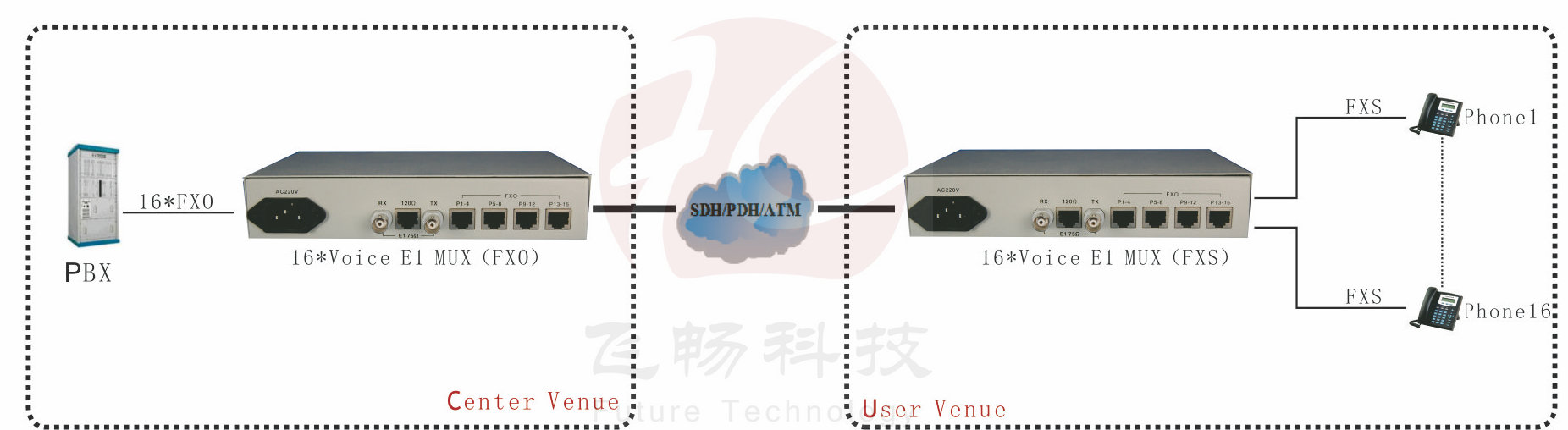

                                                                                  Application Scheme

                                                                                  Applications:

                                                                                  tle="POTS Fiber Mux" alt="POTS Fiber Mux" />
