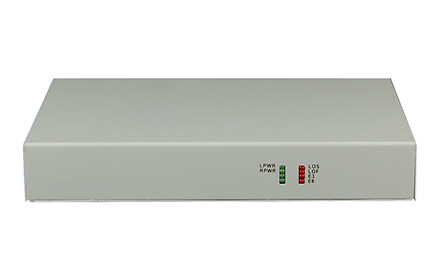

                                                                                  Fiber-4Voice+2GE multiplexer（Mini type)

                                                                                  Type:FCP-O4G2/S4G2 Message

                                                                                  Description:4FXS/FXO,2*1000M ethernet，Mini type.

                                                                                  Product Description
                                                                                    This series is based on the company's proprietary research on VLSI, developed point to point optical transmission equipment. This product provides 1~4channel FXO/FXS/2/4 wire audio, Magnet telephone Interface; two Gigabit Ethernet interface, support VLAN division. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.
                                                                                  Functional Properties
                                                                                  ? Based on self -copyright  IC;
                                                                                  ? 1 ~ 4channel voice access, support caller ID function and reverse polarity billing functions;
                                                                                  ? 2channel Ethernet interface, the rate of 10/100/1000M, full / half duplex adaptive, 2x Ethernet can be set to logical isolation;
                                                                                  ? Support FXO/FXS, EM2/4 audio, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
                                                                                  ? Support Telephone Number mutual function of each site;
                                                                                  ? optical port unrepeated transmission distance of up to 2 to 100 km;
                                                                                  ? Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs,the peak output voltage 6KV open standards.
                                                                                  ? Multiple power mode options: AC220V, DC-48V / DC24V, etc;
                                                                                  Technical Parameters
                                                                                  u Fiber
                                                                                  Multi-mode Fiber
                                                                                  50/125um, 62.5/125um,
                                                                                  Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)
                                                                                  Wave Length:    820nm
                                                                                  Transmitting power: -12dBm (Min) ~-9dBm (Max)
                                                                                  Receiver sensitivity: -28dBm (Min)
                                                                                  Link budget: 16dBm
                                                                                  Single-mode Fiber
                                                                                  8/125um, 9/125um
                                                                                  Maximum transmission distance:  40Km
                                                                                  Transmission distance:  40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
                                                                                  Wave Length:      1310nm
                                                                                  Transmitting power:  -9dBm (Min) ~-8dBm (Max)
                                                                                  Receiver sensitivity:  -27dBm (Min)
                                                                                  Link budget:  18dBm
                                                                                  u Ethernet interface(10/100/1000M)
                                                                                  Interface rate: 10/100/1000 Mbps, half/full duplex auto-negotiation
                                                                                  Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
                                                                                  MAC Address Capability: 4096
                                                                                  Connector: RJ45, support Auto-MDIX
                                                                                  u FXS Phone Interface
                                                                                  Ring voltage: 75V
                                                                                  Ring frequency: 25HZ
                                                                                  Two-line Impedance: 600 Ohm (pick up)
                                                                                  Return loss: 40 dB
                                                                                  u FXO Switch Interface
                                                                                  Ring detect voltage: 35V
                                                                                  Ring detection frequency: 17HZ-60HZ
                                                                                  Two-line Impedance: 600 Ohm (pick up)
                                                                                  Return loss: 40 dB
                                                                                  u Working environment
                                                                                  Working temperature: -10°C ~ 50°C
                                                                                  Working Humidity: 5%~95 % (no condensation)
                                                                                  Storage temperature: -40°C ~ 80°C
                                                                                  Storage Humidity: 5%~95 % (no condensation)

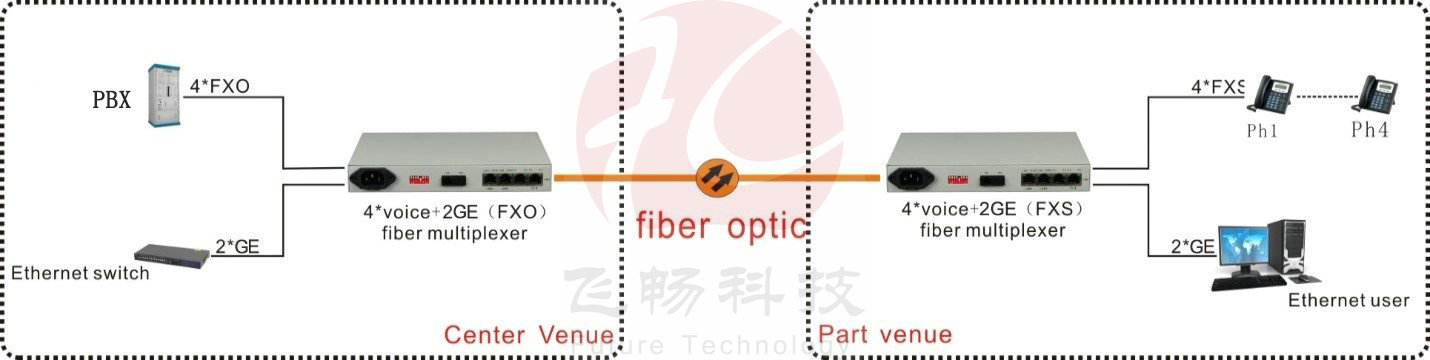

                                                                                  Application Scheme

                                                                                  Application:
