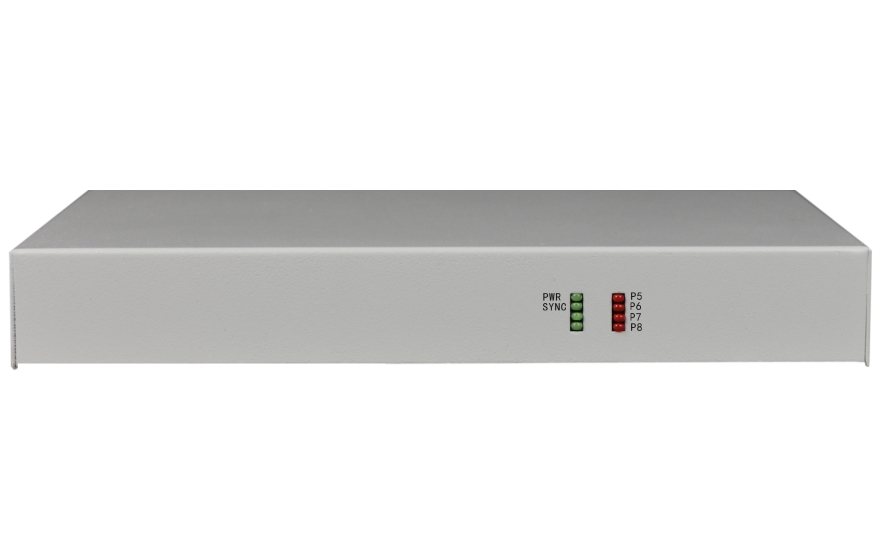

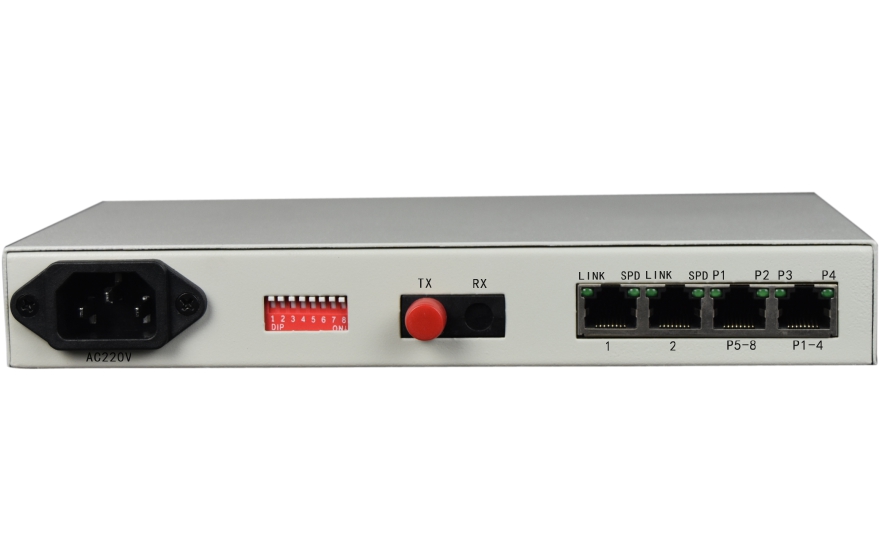

                                                                                  8*Voice+2GE Fiber Multiplexer

                                                                                  Type:FCP-O8G2/FCP-S8G2 Message

                                                                                  Description:This series of products is developed based on FPGA. This product provides 8*Voice; 2*Gigabit Ethernet interface (Wire Speed 1000M), can support VLAN division.

                                                                                  Product Description
                                                                                    This series of products is developed based on FPGA. This product provides 8*Voice; 2*Gigabit Ethernet interface (Wire Speed 1000M), can support VLAN division.
                                                                                  Functional Properties
                                                                                  ◆ Based on independent intellectual property rights of integrated circuits;

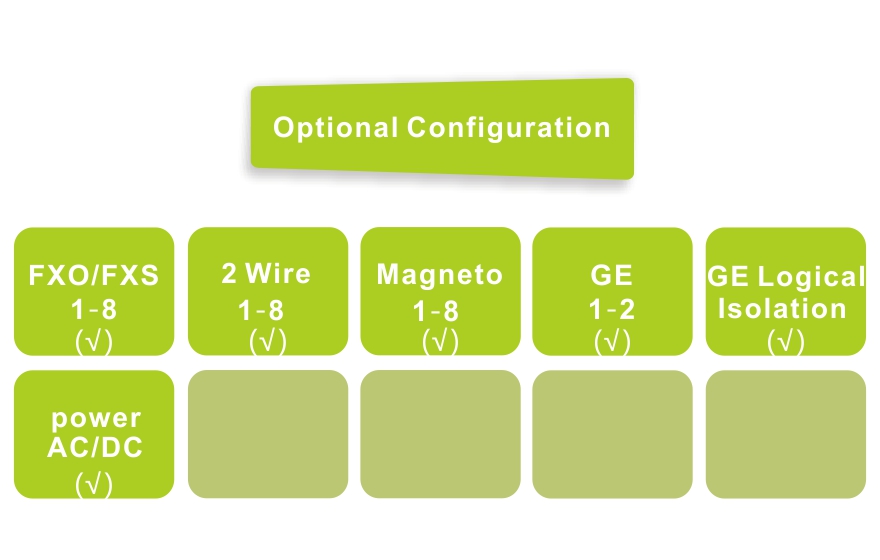

                                                                                  ◆ Voice port support FXO/FXS/2 Wire Audio/Magnet phone interface, FXO port plug into PBX,  FXS port is connected to the user's telephone;
                                                                                  ◆ FXO/FXS telephone interface, support caller ID / reverse polarity billing / fax function;
                                                                                  ◆ Both sides of the device support FXO+FXS hybrid access;
                                                                                  ◆ 2*Gigabit Ethernet interface, bandwidth for the Wire speed 1000M, interface 10/100/1000M, full-duplex / half-duplex adaptive, 2*GE  Ethernet can be set to logic isolation;
                                                                                  ◆ Optical port without relay transmission distance of up to 2 to 120 km;
                                                                                  ◆ A variety of power options: AC220V, DC-48V / DC24V;
                                                                                  ◆ DC-48V / DC24V power supply with automatic polarity detection, installation without distinction between positive and negative
                                                                                  ◆ Telephone/Ethernet interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
                                                                                  Technical Parameters

                                                                                  ◆  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um 62.5/125um

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  ◆  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  ◆  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  ◆  Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  ◆  Dimension

                                                                                      Product Size:         216X140X31mm(WXDXH)

                                                                                         Piece Weight :    1KG

                                                                                  ◆  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

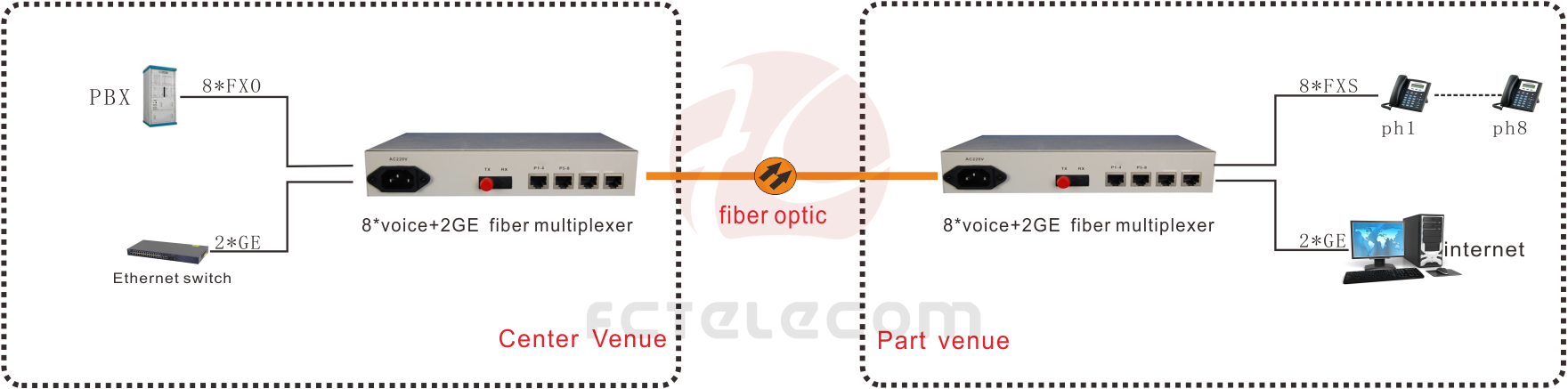

                                                                                  Application Scheme
                                                                                  DataSheet Download
                                                                                  ?
