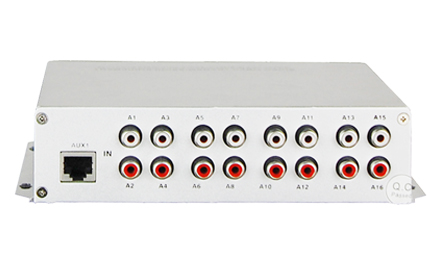

                                                                                  16 Channel Aduio Fiber Transceiver

                                                                                  Type:FCA-A16 Message

                                                                                  Description:16 Channel Aduio Fiber Transceiver , 24 bits Sampling , sampling precision 128K , Audio interface for RCA (lotus seat)

                                                                                  Product Description

                                                                                           This digital Audio optical transceiver adopts digital Audio encoding and optical fiber transmission technology. 16 channel Audio, and serial data, on the single-core optical fiber. Rack installation or desktop installation can be optional.


                                                                                  Functional Properties

                                                                                  ? Complete digital optical fiber transmission platform, same platform multi-service flexible configuration;

                                                                                  ? Provide General desktop, Mini desktop, insert-card Rack;
                                                                                  ? using 24Bit AD/DA audio, 128K sampling, studio grade transmission quality
                                                                                  ? Provide bi-directional asynchronous data (Forward Direction and Reverse Direction)
                                                                                  ? Asynchronous data, transmit rate more than 110-115.200Kbps
                                                                                  ? Asynchronous data can be RS232/RS485/RS422/Manchester code
                                                                                  ? Audio interface and Serial data interface provide three levels lightning-protection function，which can reach the ITU-T K.21 (10/700μs),

                                                                                       CM (6KV), Impedance (40 Ω) test;


                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u   Audio

                                                                                      Audio input & output Level: 0.5-4Vp-p
                                                                                      Audio input & output impedance: 600Ω (balance / imbalance)
                                                                                      Audio Bandwidth: 20Hz~20KHz
                                                                                      Nonlinear distortion coefficient: < 1 %
                                                                                      Audio signal-to-noise ratio (weighted): S/N>85dB

                                                                                      Interface Port: RJ45/RCA

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         132X140X31mm(WXDXH)

                                                                                      Piece Weight :      1.5KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

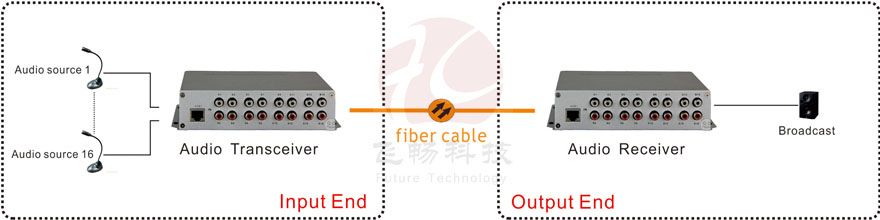

                                                                                  Application Scheme

                                                                                  Applications
