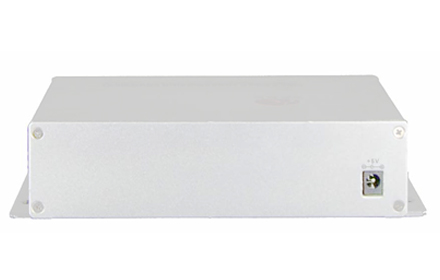

                                                                                  Star Network Aduio Fiber Transceiver

                                                                                  Type:FCVH8-A8 Message

                                                                                  Description: Star Network Aduio Fiber Transceiver ，8*light direction ， can ever under 8 8 Audio Receiver，The home court for the 1 way stereo audio to 8 breakout radio applications

                                                                                  Product Description
                                                                                                The star formation broadcast audio for broadcast audio Optical fiber networks to achieve a transparent stereo audio transmission over fiber optic star network. As a result of the fiber as a transmission medium, you can completely avoid the threat of harsh environments lightning, surges, electromagnetic interference to the device.
                                                                                                Central office all the way to eight stereo audio transmitter fiber direction, distal to eight stereo audio receiver, convenient outlet management for a home stereo audio to eight breakout broadcast applications.
                                                                                  Functional Properties
                                                                                  ? All-digital fiber optic transmission platform, multi-service platform with flexible configuration
                                                                                  ? proprietary large-scale ASIC core

                                                                                  ? data interface and audio interface provides three mine-protected, by ITU-T K.21 (10/700 μS),

                                                                                        common mode: 6KV, impedance (40 Ω) test

                                                                                  ? single fiber transmission, optional dual fiber
                                                                                  ? audio using 24Bit AD / DA, 64K sampling, studio-grade transmission quality
                                                                                  Technical Parameters

                                                                                  u   Audio

                                                                                      Audio input & output Level: 0.5-4Vp-p
                                                                                      Audio input & output impedance: 600Ω (balance / imbalance)
                                                                                      Audio Bandwidth: 20Hz~20KHz
                                                                                      Nonlinear distortion coefficient: < 1 %
                                                                                      Audio signal-to-noise ratio (weighted): S/N>85dB

                                                                                      Interface Port: RJ45/RCA

                                                                                  u  Optical

                                                                                      Respond Time: <0.5ms
                                                                                      Switch Signal: 30VDC/0.5

                                                                                      Ringing voltage：75V
                                                                                      Ringing frequency：25HZ
                                                                                      Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
                                                                                      Fiber：Single-mode Fiber 9/125um
                                                                                      Optical interface：FC 、SC、ST
                                                                                     Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         216X140X31mm(WXDXH)

                                                                                      Piece Weight :      2KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

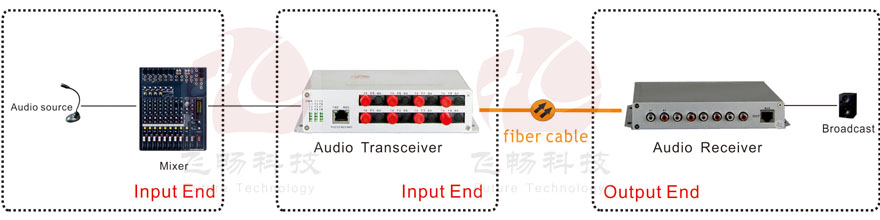

                                                                                  Application Scheme

                                                                                  Applications
