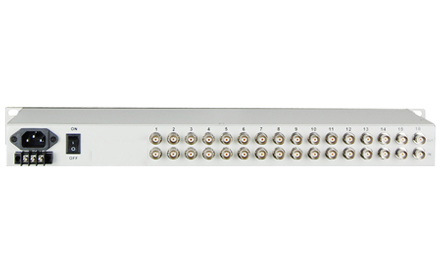

                                                                                  1 In 16 Out E1 Distributor

                                                                                  Type:FCC-E1/E16 Message

                                                                                  Description:E1 Assigned to 16*E1 ，Provided 1channel into ，16 channel out

                                                                                  Product Description
                                                                                                This device that is the company developed the PDH optical fiber transmission on the basis of special-purpose VLSI development E1 distributor. It provides 1Channel E1 in, 16Channel E1 out functions and has alarm function. The working is reliable, stable, and low power consumption, high integration, small size.

                                                                                  Functional Properties
                                                                                  ? Machine design for veneer
                                                                                  ? Using FPGA, digital codec and clock recovery technology, high integration, high stability
                                                                                  ? Based on self -copyright IC
                                                                                  ? AC220V, DC-48V/DC24V optional;
                                                                                  ? DC-48V/DC24V power supply polarity detection function, Polarity-Free

                                                                                  Technical Parameters

                                                                                  u   Ethernet interface

                                                                                      Interface Standard:  comply with protocol G.703;

                                                                                      Interface Rate:  2048Kbps±50ppm;

                                                                                      Interface Code: HDB3;

                                                                                      Impedance:   75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance: In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation: 0~6dBm

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤3W

                                                                                  u   Dimension

                                                                                      Product size:        216X138X31mm(WXDXH)
                                                                                      Simple packaging:  483X138X44mm(WXDXH)

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity: 5%~95 % (no condensation)
                                                                                      Storage temperature: -40°C ~ 80°C
                                                                                      Storage Humidity: 5%~95 % (no condensation)

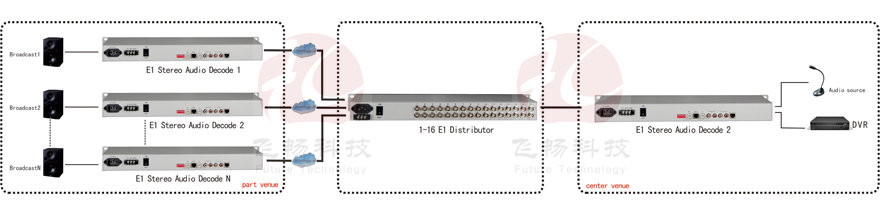

                                                                                  Application Scheme

                                                                                  Applications
