                                                                                  POE E1-FE Media Converter

                                                                                  Type: Message

                                                                                  Description:

                                                                                  Product Description

                                                                                                This interface converter is based on FPGA,providing one  E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

                                                                                                IEEE802.3af Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phones and other devices.

                                                                                  Functional Properties
                                                                                  ? Based on proprietary integrated circuit;
                                                                                  ? Ethernet data transmission in an E1 circuit;
                                                                                  ? Built-in dynamic Ethernet MAC address list (4096), with local data frame filtering;
                                                                                  ? PSE power company for Ti chip, high stability;
                                                                                  ? Ethernet port supports standard IEEE802.3af Power;
                                                                                  ? Ethernet port maximum power 15.4W;
                                                                                  ? There is no detectable E1 loopback, and is indicated by the indicator;
                                                                                  ? can distinguish E1 signal loss when the remote device is powered down or disconnected in the middle E1 transmission;
                                                                                  ? Ethernet 10 / 100M, full / half duplex fully adaptive, support VLAN protocol;
                                                                                  ? Ethernet port supports AUTO-MDIX (crossover cable and straight-line adaptive);
                                                                                  ? provide two kinds of clock ways: E1 master clock, E1 lines from the clock;
                                                                                  ? provides three kinds of loopback: E1 local loopback (ANA), Ethernet local loopback (DIG), command peer Ethernet loopback (REM);
                                                                                  ? support adaptive 120Ω / balance and 75Ω / Imbalance impedance, no need to make settings.

                                                                                  Technical Parameters

                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u Ethernet interface (10/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u Ethernet POE characteristics
                                                                                      PoE standard: IEEE 802.3af (port output power 15.4W)
                                                                                      PoE type: the end of cross connection (optional for mid span)

                                                                                      PoE port: port output power of 15.4W (IEEE802.3af)
                                                                                      PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)
                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                      Piece Weight: 1.3KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

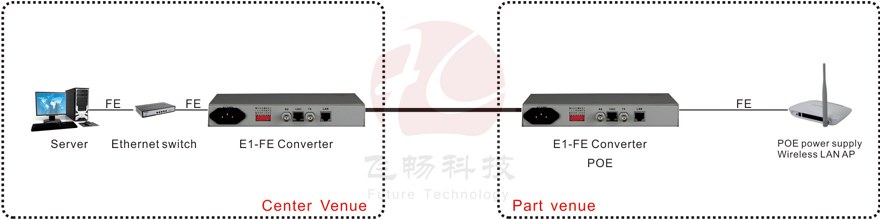

                                                                                  Application Scheme

                                                                                  Applications
