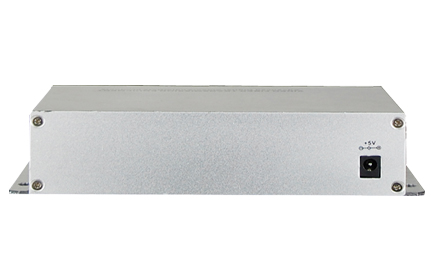

                                                                                  1 Channel Multi Service 3G HD-SDI Video Fiber Transceiver

                                                                                  Type:FCVH-V1T/R Message

                                                                                  Description:1 channel HD-SDI Or 3G SDI in the Light transmission , With data、Audio、Talkback、telephone、E1、Ethernet、dry connect……

                                                                                  Product Description
                                                                                                  Multiservice 3Gbps HD-SDI HD video optical transmitter / receiver uses digital coding technology, all the way 3Gbps HD -SDI video signals and data signals, audio signals, digital signals, the voice signal, E1 and Ethernet signals via a signal root achieve long-distance single-mode fiber bidirectional transmission, the maximum signal without distortion-free relay transmission 80Km. 3Gbps HD -SDI Optical high-definition digital TV signal format from 270Mbps to 2.97Gbps, 3Gbps HD -SDI video optical systems support signal SMPTE424M, SMPTE292, SMPTE344M, SMPTE259M and DVB-ASI (270M) and other digital television formats.
                                                                                  Functional Properties
                                                                                  ? can provide normal desktop, concentrated plug-in frame in a variety of ways

                                                                                  ? SD, HD, 3G automatically detects input, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate; support new FULL HD Full HD 1080P / 60HZ

                                                                                         3Gbps HD-SDI format signal,Transmission distances of up to 80KM;

                                                                                  ? support SMPTE 424M (2.97Gbps / s), SMPTE 292M (1.485Gbps / s), SMPTE 344M (540Mb / s), SMPTE 259M (360Mb / s)

                                                                                         and DVB-ASI (270Mb / s)

                                                                                  ? band transmitter automatic cable equalization, 80M: 2.97Gb / s, 140M: 1.485Gb / s 250M: 270Mb / s
                                                                                  ? transmitter and receiver with the way all the other SDI video output, and a LED indicates the status of SDI signal access
                                                                                  ? data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
                                                                                  ? asynchronous data available for RS232 / RS485 / RS422 / Manchester code
                                                                                  Technical Parameters

                                                                                  u   3Gbps HD-SDI Video

                                                                                      Video bandwidth：270Mb/s – 2.97Gb/s

                                                                                      TV signals：SMPTE 424M、SMPTE 292M、SMPTE 344M、SMPTE 259M和 DVB-ASI

                                                                                      Reflection loss：>15DB
                                                                                      Balanced： 250m @ 270Mbit/s,140m @ 1.485Gbit/s,80m @ 2.97Gbit/s

                                                                                       Interface: 75 BNC

                                                                                  u   Audio

                                                                                      Audio input & output Level: 0.5-4Vp-p
                                                                                      Audio input & output impedance: 600Ω (balance / imbalance)
                                                                                      Audio Bandwidth: 20Hz~20KHz
                                                                                      Nonlinear distortion coefficient: < 1 %
                                                                                      Audio signal-to-noise ratio (weighted): S/N>85dB

                                                                                      Interface Port: RJ45/RCA

                                                                                  u   Date interface

                                                                                      Data Interface:  RS-232、RS-422、RS-485、TTL
                                                                                      Data Mode:  NRZ、Manchester、Bi-phase
                                                                                      Data Rate:  110bps-115.200Kbps
                                                                                      Interface Port:  RJ45

                                                                                  u  Switch

                                                                                      Respond Time: <0.5ms
                                                                                      Switch Signal: 30VDC/0.5A

                                                                                  u  Optical

                                                                                      Respond Time: <0.5ms
                                                                                      Switch Signal: 30VDC/0.5

                                                                                      Ringing voltage：75V
                                                                                      Ringing frequency：25HZ
                                                                                      Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
                                                                                      Fiber：Single-mode Fiber 9/125um
                                                                                      Optical interface：FC 、SC、ST
                                                                                     Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
                                                                                     Transmission distance may also be limited by fiber optic bandwidth.
                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤5W

                                                                                  u   Dimension

                                                                                      Product Size:         186X138X31mm(WXDXH)

                                                                                      Piece Weight :      1.5KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

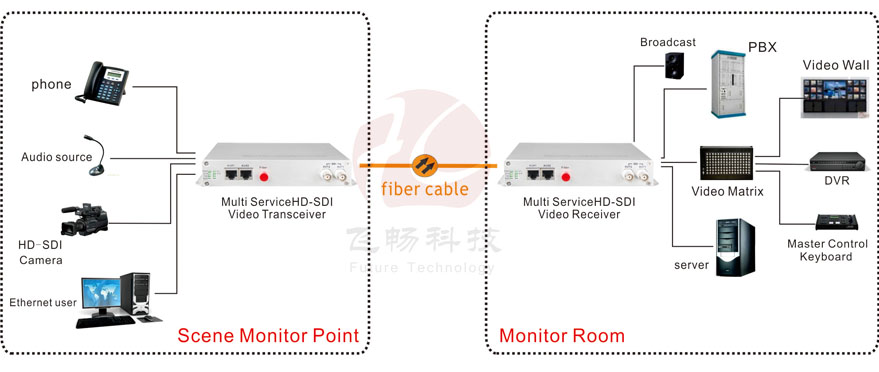

                                                                                  Application Scheme
