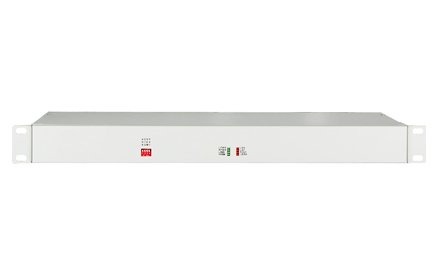

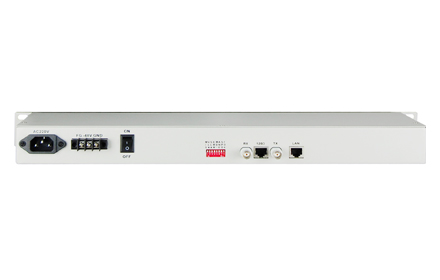

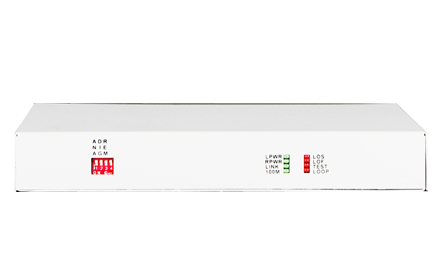

                                                                                  framed E1-FE Converter

                                                                                  Type:FCC-E1fF1 Message

                                                                                  Description:1channel framed E1 - FE converter ，N * 64k rate setting ，With E1 loopback detection function

                                                                                  Product Description
                                                                                                This interface converter is based on FPGAproviding one framed E1 interface and one Ethernet interface to achieve 10/100base-T Ethernet data transmission on the E1 channel. It is a high performance self-learning Ethernet bridge. This device is the extension device of Ethernet using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

                                                                                  Functional Properties
                                                                                  ◆   based on self -copyright  IC
                                                                                  ◆   Can realize monitor and control of remote equipment OAM management data did not  take up user’s timeslot and save E1 bandwidth
                                                                                  ◆   E1 supports any timeslot set the rate is 64K-2048K
                                                                                  ◆   The local device can forced the remote device rate follow it
                                                                                  Ø    Have the function of E1 interface loop back check avoid the converter crashed because of interface loop return;
                                                                                  Ø Have indicator  when the device is power-off or E1 line is broken or lose signal;
                                                                                  Ø Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
                                                                                  Ø The Ethernet interface supports jumbo frames (2036 Bytes);
                                                                                  Ø Inter-set dynamic Ethernet MAC address (4096) with local data frame filtering

                                                                                  Ø Ethernet interface supports10M/100M half/full duplex auto- Negotination and AUTO-MDIX

                                                                                        (crossed line and straightly connected line self-adaptable );

                                                                                  Ø Have Ethernet monitor self-reset function the equipment will not dead
                                                                                  Ø Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
                                                                                  Ø Provide 2 clock types: E1 master clock and E1 line clock;

                                                                                  Ø Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

                                                                                        Ethernet interface Loop Back(REM)

                                                                                  Ø Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
                                                                                  Ø Support SNMP Network Management;
                                                                                  Ø Can realize monitor of remote equipment temperature and voltage from local equipment;
                                                                                  Ø Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)

                                                                                  Ø   Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C)

                                                                                        can manage (B) and (C) at (A)


                                                                                  Technical Parameters

                                                                                  ◆   E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u Ethernet interface (10/100M)

                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension



                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                      Piece Weight: 1.1KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

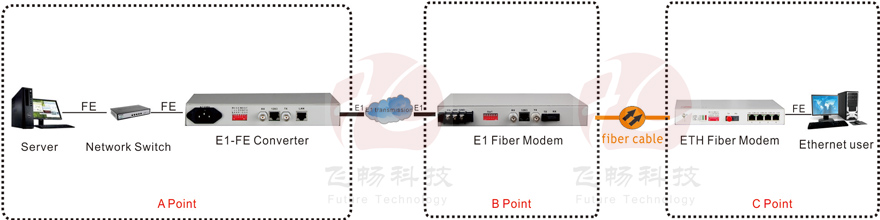

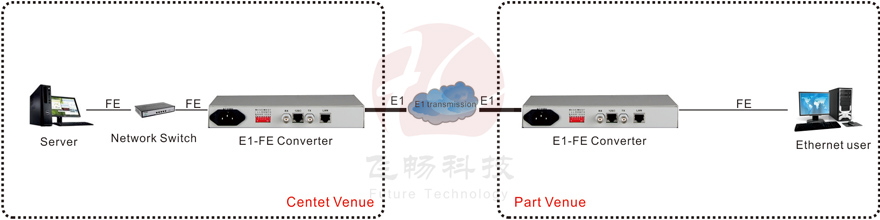

                                                                                  Application Scheme

                                                                                  Applications 1

                                                                                  Applications 2

                                                                                  Applications 3
