                                                                                  Unframed E1-FE Converter

                                                                                  Type:FCC-E1F1 Message

                                                                                  Description:1channel unframed E1 - FE converter，With E1 loopback detection function

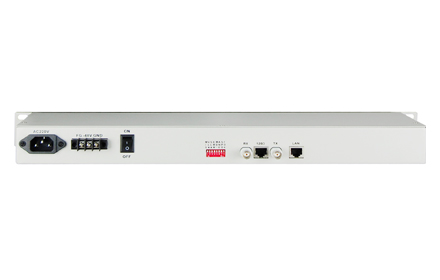

                                                                                  Product Description
                                                                                                  This interface converter provides one unframed 2048K E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

                                                                                  Functional Properties
                                                                                  ? Based on self -copyright  IC

                                                                                  ? Support unframed mode (2048K) set and can manage the remote device condition ,

                                                                                        OAM management data did not take up user’s timeslot

                                                                                  ? Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;
                                                                                  ? Have indicator when the device is power-off or E1 line is broken or lose signal;
                                                                                  ? Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
                                                                                  ? The Ethernet interface supports jumbo frames (2036 Bytes);
                                                                                  ? Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering

                                                                                  ? Ethernet interface supports10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX

                                                                                        (crossed line and straightly connected line self-adaptable );

                                                                                  ? Have Ethernet monitor self-reset function, the equipment will not dead
                                                                                  ? Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
                                                                                  ? Provide 2 clock types: E1 master clock and E1 line clock;
                                                                                  ? The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)

                                                                                  ? Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

                                                                                        Ethernet interface Loop Back(REM)

                                                                                  ? Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
                                                                                  ? Support SNMP Network Management;
                                                                                  ? Can realize monitor of remote equipment temperature and voltage from local equipment;
                                                                                  ? Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)

                                                                                  ? Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C),

                                                                                        can manage (B) and (C) at (A)


                                                                                  Technical Parameters
                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u Ethernet interface (10/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                      Piece Weight: 1.2KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C

                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)


                                                                                  Application Scheme

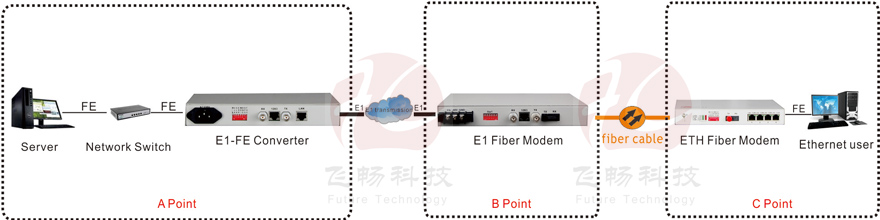

                                                                                  Applications 1

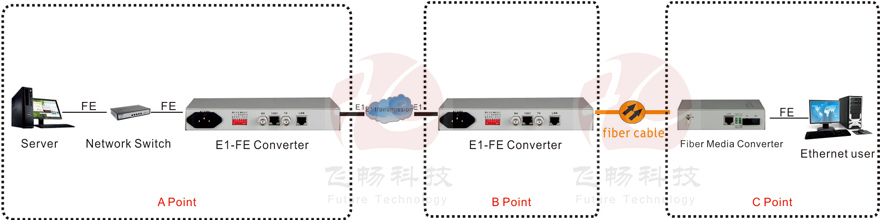

                                                                                  Applications 2

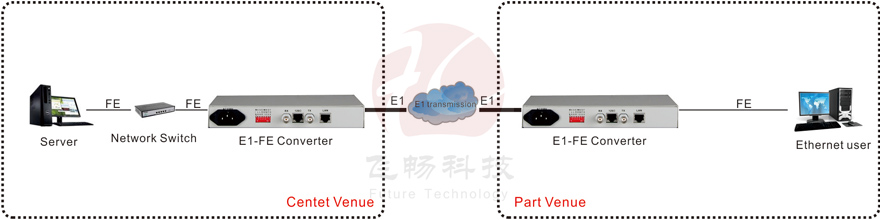

                                                                                  Applications 3
