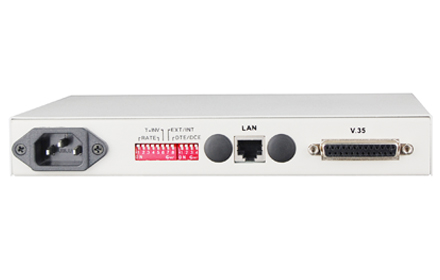

                                                                                  Ethernet V.35 interface converter

                                                                                  Type:FCC-V1F1 Message

                                                                                  Description:Ethernet V.35 interface converter ， Used in pairs

                                                                                  Product Description
                                                                                             This convertor provide conversion from V.35 channel to Ethernet interface and delivers Ethernet services over existing V.35 lines V35-ETH converter provides easy conversion from V.35 channel to standard 10/100 base T Ethernet interface Can used widely in connecting between WAN and LAN monitoring etc. The Ethernet interface is 10/100Mbps auto negotiation and can be full/half duplex.
                                                                                              Local management of the V35-ETH Converter is provided via DIP switches. Front panel LEDs monitor the V.35 link Ethernet LAN and other serial ports for status and Loss of Sync V35-ETH compact V.35 Access Converter provides V.35 Network Termination as well as serial or Ethernet LAN interface conversion in a standalone or rack mount package. V35-ETH terminates the V.35 Telco interface and converts the data for transmission to a user-oriented 10baseT interface.
                                                                                  Functional Properties
                                                                                  Ø based on self -copyright IC high software content (kernel chip based on software)
                                                                                  Ø   V.35 interface provide DTE and DCE type: DTE rate is 0 to 10M DCE rate is n x 64k(N=1 to 32)
                                                                                  Ø   Provide 2 loop functions: local V.35 loop local 10 base-T loop.
                                                                                  Ø   Have pseudo random code test function easy the installation and maintenance.
                                                                                  Ø   Power supply option: AC220V DC-48V. The positive and negative terminal can be exchanged for DC-48V easy for installation
                                                                                  Ø   Network manager interface SNMP management
                                                                                  Ø   Deliver Ethernet over V.35 line
                                                                                  Technical Parameters

                                                                                  u   Ethernet interface

                                                                                      Interface Standard:  comply with protocol G.703;

                                                                                      Interface Rate:  2048Kbps±50ppm;

                                                                                      Interface Code: HDB3;

                                                                                      Impedance:   75Ω (unbalance) 120Ω (balance);

                                                                                      Jitter tolerance: In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation: 0~6dBm

                                                                                  u   V.35 interface

                                                                                      Interface rate:              n*64Kbps
                                                                                      Interface Standard:      Compatible with V.35 Standard
                                                                                      Connector:                   DB25
                                                                                      Connect Mode:         DCE
                                                                                      Clock Type:                 G.703 restored clock Internal clock

                                                                                  u   Power

                                                                                      DC: -48V (-36 to -72V); +24 V (Optional)
                                                                                      AC: 90 to 260 VAC ; 47 ~ 63Hz
                                                                                      Power Interface: DC power terminal/AC socket
                                                                                      Power Consumption: 3 W maximum

                                                                                  u   Dimension

                                                                                      Product size:        216X140X31mm(WXDXH)
                                                                                      Simple packaging:  274X193X84mm(WXDXH)
                                                                                      Piece weight : 1.25KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity: 5%~95 % (no condensation)
                                                                                      Storage temperature: -40°C ~ 80°C
                                                                                      Storage Humidity: 5%~95 % (no condensation)

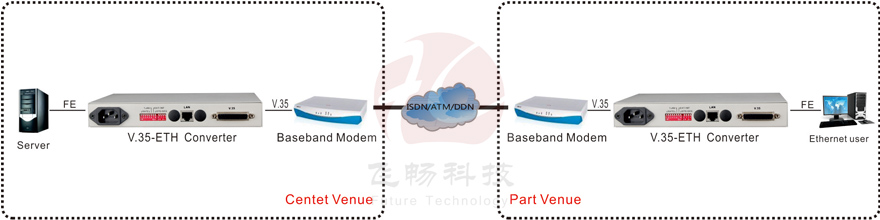

                                                                                  Application Scheme

                                                                                  Applications
