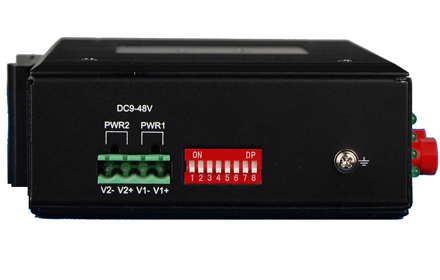

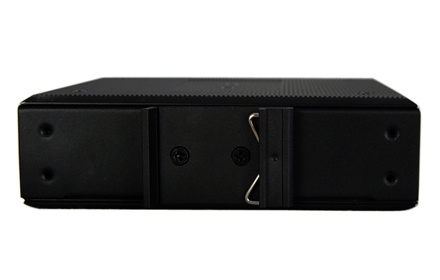

                                                                                  SRing-2004 Rail Type 4*RS232/422/485 Ring Network Fiber Mode

                                                                                  Type:SRing2004 Message

                                                                                  Description:SRing 2004 4 CHannel date Network Fiber Modem ,Support point to point communication ,Chain network, star network ,Redundant ring network protection topology

                                                                                  Product Description

                                                                                               Ring Optical data type provides 4 RS232 / 422/485 in the optical fiber transmission, support a variety of fiber optic network topologies: point to point communications, chain network, star and redundant ring network protection, self-healing network topology, and on this basis, the networking is more complex network topologies, with a self-healing ring network protection. The product breakthrough contradictory legacy serial interface communication distance and speed, but also to solve the electromagnetic interference, ground loop interference and lightning damage problems, greatly improving the reliability of data communications, security and confidentiality.

                                                                                  Functional Properties
                                                                                  ? Based on proprietary integrated circuit;

                                                                                  ? Provide 1-4 independent serial ports (RS232 / 422/485 optional) channel, physical isolation from each other,

                                                                                        there is no correspondence between the

                                                                                  ? provide two fiber optic lines, it can automatically switch when the line failure, ensuring communication is normal.

                                                                                  ? support a variety of fiber-optic network structure: point to point, star, chain, ring redundancy, and can be combined into

                                                                                        more complex network topologies to support a variety of fiber optic network architecture:  Point, star, chain, ring redundancy,

                                                                                        and can be combined into more complex network topologies to support a variety of fiber-optic network structure: point to point, star,

                                                                                        chain, ring redundancy, Can be combined into more complex network topologies

                                                                                  ? electrical interface uses a separate power supply module, completely isolated from the ground loop between the bus and the device;

                                                                                        while using optical isolation technology, isolation and internal communications bus data signal, Effective protection of the communications

                                                                                        equipment from power surges and ground loop interference and sabotage

                                                                                  ? RS232 / 485/422 interface, optional three data, RS232 supports 3-wire RS232 (TXD, RXD, GND), flow control support CD, DSR, CTS,
                                                                                  ? RS232 / 485/422 channels can be transmitted from 0-115200 baud asynchronous serial data adaptive
                                                                                  ? serial port interface lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard
                                                                                  ? optional AC 220V, DC -48V, DC + 24V, DC power no positive and negative points;
                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u   RS232/422/485  interface

                                                                                      Rate: 0-115200Kbps

                                                                                      Interface characteristics: EIA RS232 RS422 RS485
                                                                                      Connector: Phoenix terminal

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         133X120X40mm(WXDXH)

                                                                                      Piece Weight :      0.685KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)





                                                                                  Application Scheme


                                                                                      The product supports a variety of fiber optic network topologies: point to point communications, chain network, star and redundant ring network protection, self-healing topologies, and networking for more complex network topologies on this basis

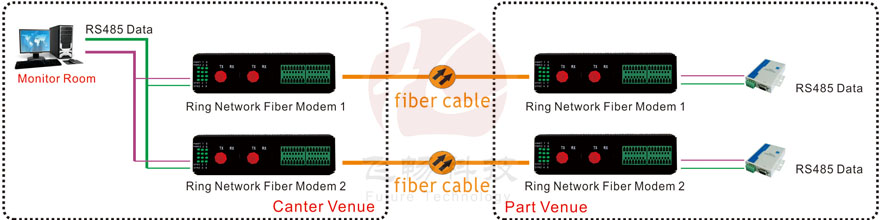

                                                                                  u Point (Point to Point) Applications: distributed among some individual bus node requires long-distance communication, or serious interference require electrical isolation:

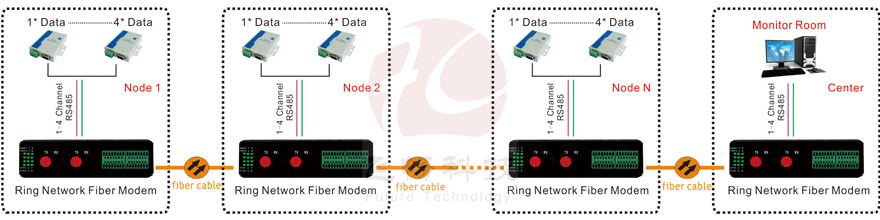

                                                                                   u chain (Line) Applications: distance between the plurality of bus communication between nodes required, or multiple nodes requires full electrical isolation interference:

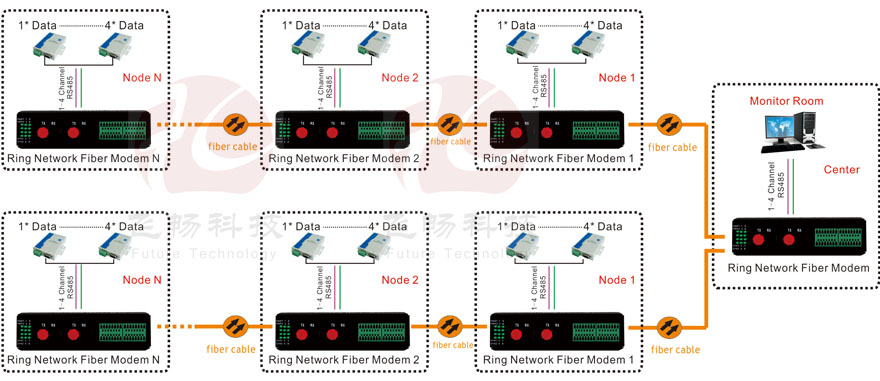

                                                                                  u Star (Star) Applications: the need for inter-bus chain topologies, or multiple nodes need to completely change when electrical isolation between the plurality of nodes;

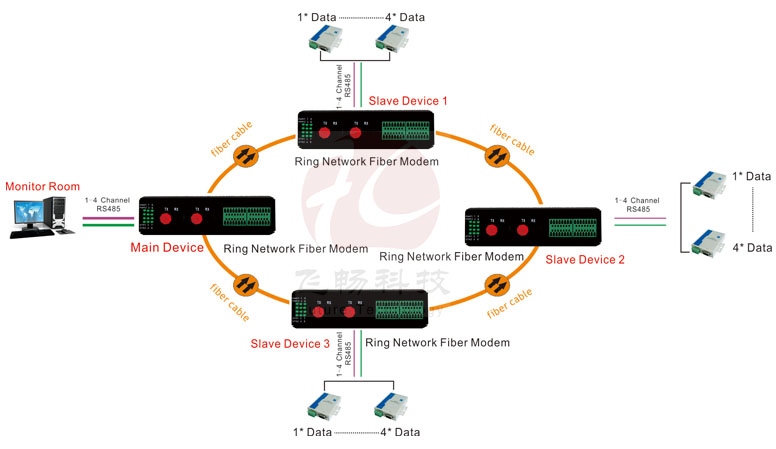

                                                                                  u  Ring (Circle) Applications:  When among a plurality of nodes required to provide redundant fiber link guarantee reliable communication bus:



                                                                                      This series of products and flexible, at the same time, the products can be dual optical port dual-fiber ring network redundancy, when somewhere in the fiber failure, the system will rebuild the network links within 10ms to ensure the normal communication systems, to achieve the self-healing protection bus signal transmission, network troubleshooting system will automatically restore;
