                                                                                  2U Intergrated Access Rack

                                                                                  Type:FCK12-a2/d2 Message

                                                                                  Description:2U Rackmount ，can insert a single port / 2 fiber media converter ，FE-E1，Fiber modem

                                                                                  Product Description

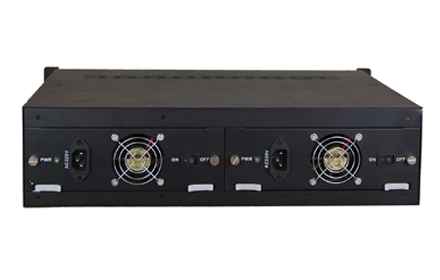

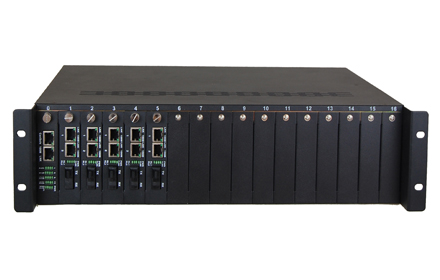

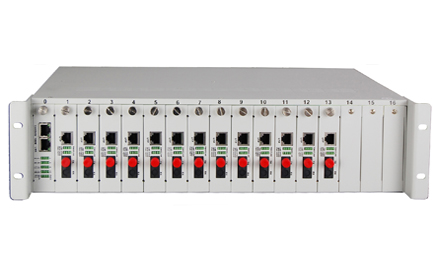

                                                                                                This is 2U 17 interfaces Rack. The rack height is 2U, can insert 17 block interface conversion cards,or1 block network management card and 16 feature cards, each card works independently. Different interface conversion cards can be inserted in and work simultaneously on the same rack. It uses communication isolation technology communication to separate system power from interface conversion card completely to ensure the reliability of the entire system
                                                                                  Functional Properties
                                                                                  ? Can insert various types of interface converter produced by our company
                                                                                  ? 19-Inch 2 U standard rack, using the principle of air, good rack radiating performance, ease of management and maintenance
                                                                                  ? Can insert up to 16 hot-plug cards, each interface conversion card can achieve conversion function independently

                                                                                  ? Two power panel slots support mutual hot spare between two power units. Each power unit can support the entire rack work full of

                                                                                         configuration.  Two power units work together through shunt on the one hand to reduce each power unit load, on the other hand

                                                                                          by mutual hot spare to ensure if one power unit having problem within the time rack inner function panel can work

                                                                                  ? Support SNMP Network Management
                                                                                  ? Fully meet Telecom operation requirements, Mean time Between Failures (MTBF) is more than 50,000 hours.
                                                                                  Technical Parameters

                                                                                  u   Power

                                                                                      Power supply:AC180V ~ 260V；DC–48V；DC +24V
                                                                                      Maximum number of power modules: 2 power modules
                                                                                      Maximum power parameters of the function card:  DC5V/1.5A (7.5W)
                                                                                      Power consumption: 100W

                                                                                  u   Dimension

                                                                                      Product size:        443X365X110mm(WXDXH)
                                                                                      Piece weight : 3.5KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity: 5%~95 % (no condensation)
                                                                                      Storage temperature: -40°C ~ 80°C
                                                                                      Storage Humidity: 5%~95 % (no condensation)

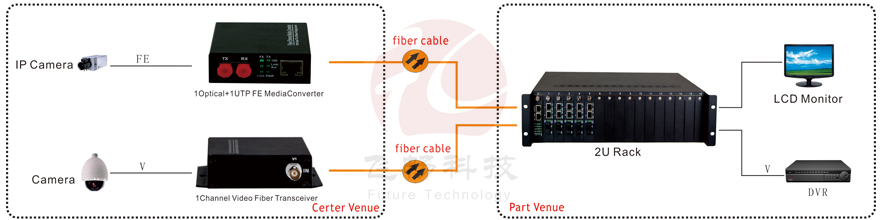

                                                                                  Application Scheme
