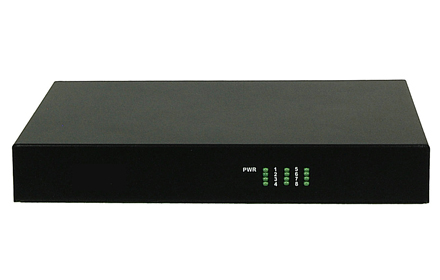

                                                                                  1*FE+8*1000 base-S/LX Ethernet Switch

                                                                                  Type: Message

                                                                                  Description:1*FE+8*1000 base-S/LX Ethernet Switch，can ever under 8 fiber direction FE fiber media converter

                                                                                  Product Description
                                                                                               This series of products is the IEEE802.3 Ethernet media converter can be achieved between two media 8 road 100base-FX and road 1000base-T 1 medium conversion or extension of the network transmission distance mainly used for optical fiber network distance (20/40/60/80/120) transmission the transmission rate and full support for 10/100/1000M for 1-8 road optical Ethernet aggregation to route 1 Gigabit Ethernet port of the occasion.
                                                                                  Functional Properties

                                                                                  Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

                                                                                  Ø   Device provides 1 Ethernet UTP 8 Ethernet optical port

                                                                                  Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

                                                                                  Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied with IEEE802.10 protocol

                                                                                  Ø   Division of VLAN base PORT this method does not affect the remote device

                                                                                  Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

                                                                                  Ø   Support the QinQ and MAC-In-MAC VLANS .



                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm 1550nm

                                                                                      Interface rate:              100 M half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                     Piece Weight: 1.8KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

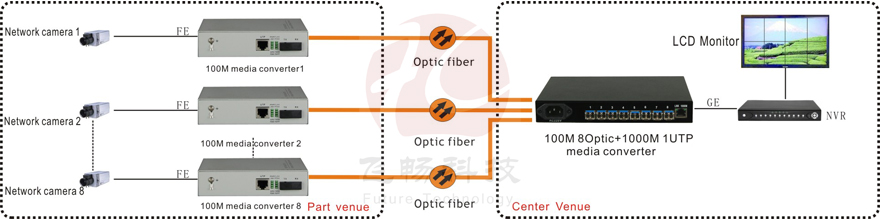

                                                                                  Application Scheme

                                                                                  Applications
