                                                                                  Products center

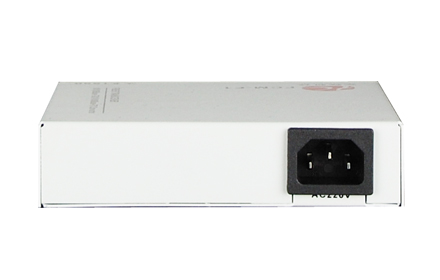

                                                                                  FE Fiber Media Converter

                                                                                  Type:FCM-F1 Message

                                                                                  Description:1*FE+1*100Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

                                                                                  Product Description
                                                                                                  The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100Base-T UTP and 10/100Base-FX or 10/100Base-T UTP and 10/100Base-FX. It mainly used for fiber network far distance (20/40/60/80/120km) transmission, supports 10/100M or 10M, 100M transmission rate. Fiber port and UTP can work through 10M or 100M rate
                                                                                  Functional Properties

                                                                                  ? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

                                                                                  ? Support full-duplex and half duplex network communication, with auto-negotiation capability;

                                                                                  ? The Ethernet interface supports jumbo frames (1600bit), which can match with the switch product complied  with IEEE802.10 protocol

                                                                                  ? Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP  has fault, transceivers will notify

                                                                                         the other end indicating fault information

                                                                                  ? With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened  on network management);

                                                                                  ? Support FX half/full duplex and link fault alarm function switch optional

                                                                                  ? Support UTP cross connection switch optional, convenient for system debugging and setup

                                                                                  ? Low power consumption, Low heating, can be stable work for a long time;

                                                                                  ? Single-core optical fiber and internal and external power optional, expands user's needs

                                                                                  Technical Parameters

                                                                                  u   Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  Optical Ethernet interface

                                                                                      Wave Length:          1310nm, 1550nm

                                                                                      Interface rate:              100 M, half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                      Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                     Product size:   136 X131 X31 mm(WXDXH)

                                                                                     Simple packaging: 295X225X84mm( WXDXH)

                                                                                     Piece weight:  0.5KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)


                                                                                  Application Scheme

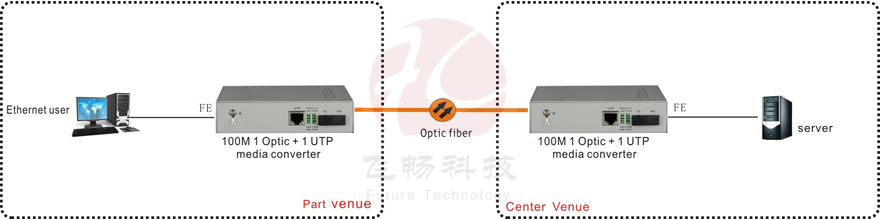

                                                                                  Applications 1



                                                                                  Applications 2
