                                                                                  16*FE+2*1000 base-S/LX Ethernet Switch

                                                                                  Type:FC2M-F16v Message

                                                                                  Description:16*FE+2*1000 base-S/LX Ethernet Switch，Console，VLAN Logic Isolation

                                                                                  Product Description
                                                                                                   FC-SW16 is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media which are 16*10/100base-T UTP and 2*1000base-S/LX. It mainly used for fiber network far distance (20/40/60/80/100km) transmission supports 10/100/1000M or 10M100M1000M transmission rate. Fiber port and UTP can work through 100M or 1000M rate.
                                                                                  Functional Properties

                                                                                  Ø Ethernet UTP/STP interface automatically adapt to 10/100Mbps environment upgrade network easily;

                                                                                  Ø Device provides 16*FE UTP/STP interface and 2*1000base-S/LX interface with SFP fiber module.

                                                                                  Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

                                                                                  Ø The max package length up to 1632 Bytes which can match with the switch product complied with IEEE802.10 protocol

                                                                                  Ø   Support UTP cross connection switch optional convenient for system debugging and setup

                                                                                  Ø Device provides Console port supports Terminal control device

                                                                                  Ø Ethernet port priority setting

                                                                                  Ø AC 220V DC-48V DC24V can be optional and DC-48V/DC24V

                                                                                       power has polarity automatic detectionfunction

                                                                                       you can install the device without differentiation between positive and negative polarity.

                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm 1550nm

                                                                                      Interface rate:              100 M half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       485X138X45mm( WX DXH))

                                                                                      Simple packaging : 522X198 X82mm ( WX DXH)

                                                                                     Piece Weight: 3.3KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

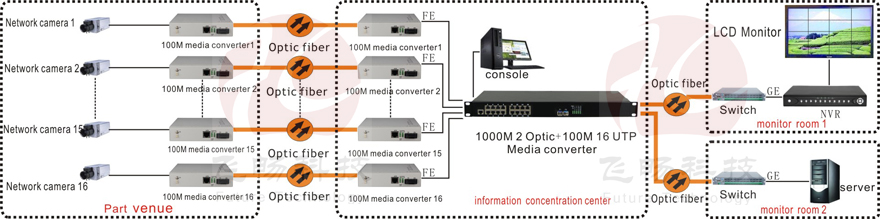

                                                                                  Application Scheme

                                                                                  Applications
