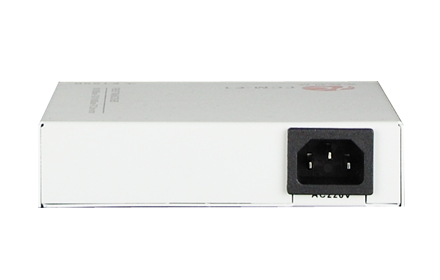

                                                                                  GE Fiber Media Converter

                                                                                  Type:FCM-G1 Message

                                                                                  Description:1*GE+1*1000Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

                                                                                  Product Description
                                                                                                 The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100/1000M UTP and optical fiber. It mainly used for fiber network far distance (20/40/60/80/120km) transmission. Fiber port and UTP can work through 10/100/1000M rate.
                                                                                  Functional Properties

                                                                                  ? International Standard: IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T

                                                                                  ? Automatically adapt to 10Mbps,100Mbps,1000 Mbps environment, upgrade network easily

                                                                                  ? Support full-duplex and half duplex network communication, with auto-negotiation capability;

                                                                                  ? The Ethernet interface supports jumbo frames, which can match with the switch product complied with  IEEE802.10 protocol

                                                                                  ? Support UTP cross connection switch optional, convenient for system debugging and setup

                                                                                  ? Low power consumption, Low heating, can be stable work for a long time;

                                                                                  ? Single-core optical fiber and internal and external power optional, expands user's needs

                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  Ethernet interface(100/100/1000M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         136X131X31mm(WXDXH)

                                                                                         Piece Weight :    1KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)







                                                                                  Application Scheme

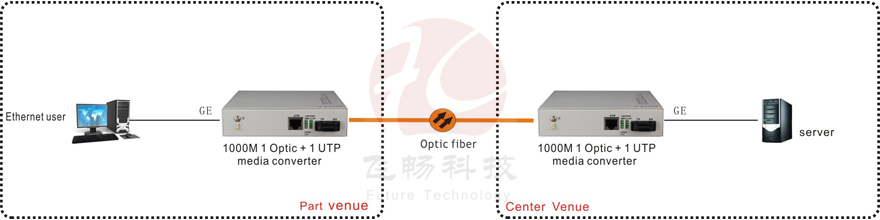

                                                                                  Applications 1

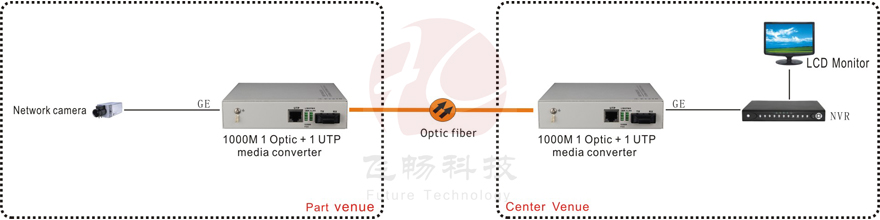

                                                                                  Applications 2


                                                                                  DataSheet Download
                                                                                  ?
