                                                                                  4FE Configurable VLAN Fiber Media Converter

                                                                                  Type:FCM-F4C1 Message

                                                                                  Description:4 * FE+1 * 100base-S/LX Ethernet Switch，Console，VLAN

                                                                                  Product Description
                                                                                                     The optical fiber transceiver is optical transmission VLAN switch. It has 5 switch interface an interface is optical fiber interface can extend local LAN through this interface. Each switch interface can divide VLAN. There are two ways of dividing VLAN: Division of VLAN base PORT this method does not affect the remote device; 802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN. The division of VLAN can be controlled by Console port. Device provides Console port supports Terminal control device
                                                                                  Functional Properties

                                                                                  Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

                                                                                  Ø   Device provides 4 Ethernet UTP 1 Ethernet optical port

                                                                                  Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

                                                                                  Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied    with IEEE802.10 protocol

                                                                                  Ø   Support UTP cross connection switch optional convenient for system debugging and setup

                                                                                  Ø   Division of VLAN base PORT this method does not affect the remote device

                                                                                  Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

                                                                                  Ø   Device provides Console port supports Terminal control device

                                                                                  Ø   Ethernet port priority setting

                                                                                  Ø   Support SNMP Network Management

                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm 1550nm

                                                                                      Interface rate:              100 M half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

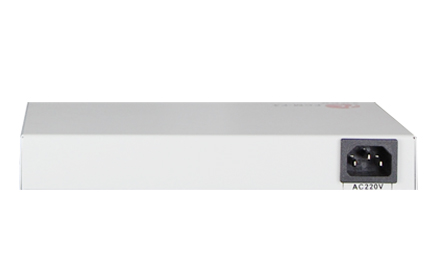

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                     Piece Weight: 1.8KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

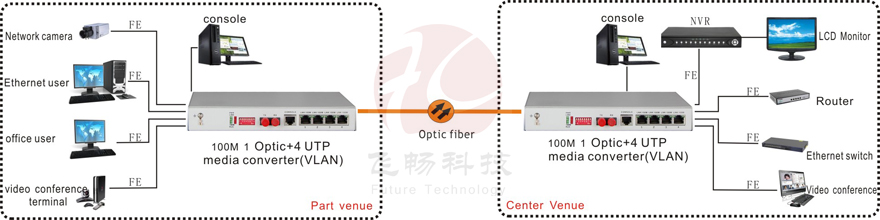

                                                                                  Application Scheme

                                                                                  Applications
