                                                                                  FE Fiber Media Converter（Network Type）

                                                                                  Type:FCM-F1 Message

                                                                                  Description:2U Rack，SNMP，management remote FE fiber media Converter

                                                                                  Product Description
                                                                                                This series is IEEE802.3 Ethernet media converters can achieve 10 / 100Base-T twisted pair and 10 / 100Base-FX or 10,100Base-T twisted pair and 10,100Base-FX between the two kinds of media the media conversion or extension of the network transmission distance, mainly for long-distance fiber-optic networks (20/40/60/80/120 km) transmission, fully supports 10 / 100M or 10M, 100M transmission rate, optical and electrical ports can working at a rate of 10M or 100M transmission applications.

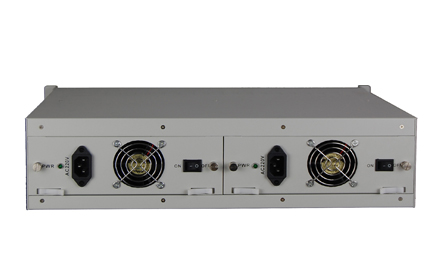

                                                                                                Chassis for 2U 17 in the chassis. Rack height 2U, 17 can be inserted into the optical fiber transceiver card, or a network card, 16 fiber optic transceiver cards, each card to work independently; isolation using communications technology to the system power and interface card is completely separate, to ensure that the the reliability of the entire system.
                                                                                  Functional Properties
                                                                                  ? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
                                                                                  ? monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
                                                                                  ? support full and half duplex network communication, with auto-negotiation capability;

                                                                                  ? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support

                                                                                        up to 1600-byte Ethernet packets;

                                                                                  ? infrastructure equipment can manage to peer desktop fiber optic transceivers

                                                                                  ? Support LFP (Link Fault Pass Through) function, when the fiber optic and twisted pair transceiver connected to either ends of a failure,

                                                                                         notify the other end of the transceiver display error messages

                                                                                  ? have FiberAlter, automatic cut-emitting optical path (open NMS) that receive light signals;
                                                                                  ? FX holding half / full duplex and link failure alarm switch selection;
                                                                                  ? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
                                                                                  ? support SNMP network management rack, 2U chassis can be inserted 16 fiber optic transceiver cards
                                                                                  ? low power consumption. Low heat, stable operation for a long time;
                                                                                  ? single fiber can choose to expand the user's needs
                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm, 1550nm

                                                                                      Interface rate:              100 M, half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                     Product size:   443 X365 X110mm(WXDXH)

                                                                                     Piece weight:  5.5KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

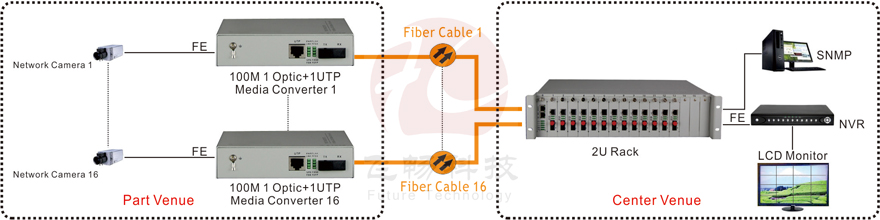

                                                                                  Application Scheme

                                                                                  Applications
