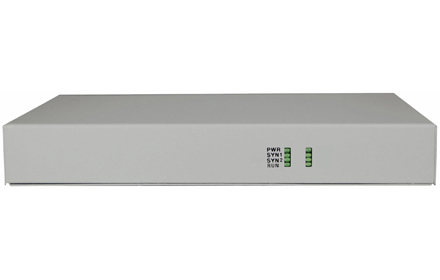

                                                                                  2 Optical + 4UTP Cascade FE Converter

                                                                                  Type:FCMJ-F4 Message

                                                                                  Description:4*FE+2*100base-fx Ethernet Switch ，Can chain type network ，with the anti death monitoring automatic reset function

                                                                                  Product Description
                                                                                                The device provides 1-4 Channel 10M/100M Ethernet interface master fiber interface and backup interface. This four Ethernet interface is switch interface can be cascaded through 2 fiber interface convenient for chain group network support VLAN.
                                                                                  Functional Properties

                                                                                  Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

                                                                                  Ø   Device provides 4 Ethernet UTP 2 Ethernet optical port

                                                                                  Ø   Support full-duplex and half duplex network communication with auto-negotiation capability;

                                                                                  Ø   The Ethernet  can match with the switch product complied with IEEE802.1Q protocol

                                                                                  Ø   Effectively isolate network conflicts and broadcast packets have broadcast storm prevention function

                                                                                  Ø   Multiple devices can be cascaded to Ethernet network

                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm 1550nm

                                                                                      Interface rate:              100 M half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                     Piece Weight: 1.8KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

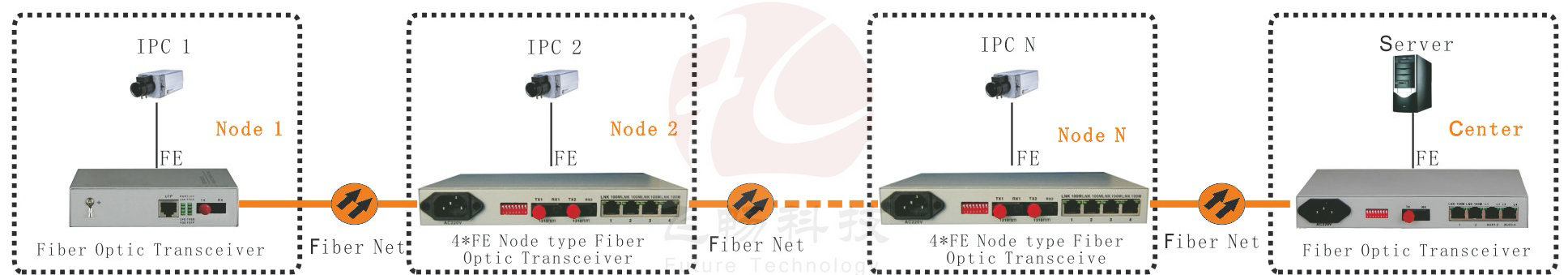

                                                                                  Application Scheme

                                                                                  Applications


                                                                                  Note:

                                                                                  Ethernet interface for 100m bandwidth use 1 ~ 2 core fiber group chain network to each 1080p video occupied 4m ~ 6m bandwidth calculation an optical fiber can be 10 road about a high-definition video signal transmission.Automatic reset function especially suitable for heavy load applications such as high definition network
