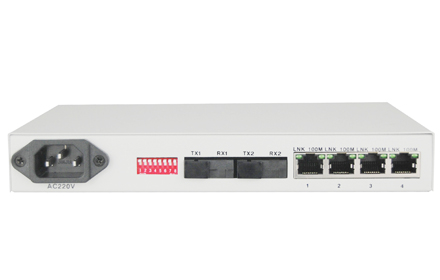

                                                                                  1+1 4FE Fiber Media Converter

                                                                                  Type:FC2M-F4b Message

                                                                                  Description:4*100 Base TX ports ，2*1+1 Backup Optic fiber,main optical fiber broken ，switch to the backup fiber

                                                                                  Product Description
                                                                                               The device provides 1-4Channel 10M/100M Ethernet interface, master fiber interface and backup interface. 4Channel Ethernet interface is switch interface, can support VLAN.
                                                                                  Functional Properties

                                                                                  ? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

                                                                                  ? Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function  ensures

                                                                                        that the business will never break;

                                                                                  ? Device provides 4 Ethernet UTP, 2 Ethernet optical port

                                                                                  ?   Support full-duplex and half duplex network communication, with auto-negotiation capability;

                                                                                  ?   The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied  with IEEE802.10 protocol

                                                                                  ?   4*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of  4 group

                                                                                         network business independently.

                                                                                  ?   Division of VLAN base PORT, this method does not affect the remote device

                                                                                  ?   802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

                                                                                  ?   Device provides Console port, supports Terminal control device

                                                                                  ?   Ethernet port priority setting

                                                                                  Technical Parameters

                                                                                   u  Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Optical Ethernet interface

                                                                                      Wave Length:          1310nm, 1550nm

                                                                                      Interface rate:              100 M, half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                     Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

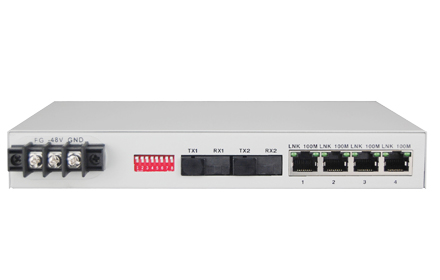

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                     Piece Weight: 1.8KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

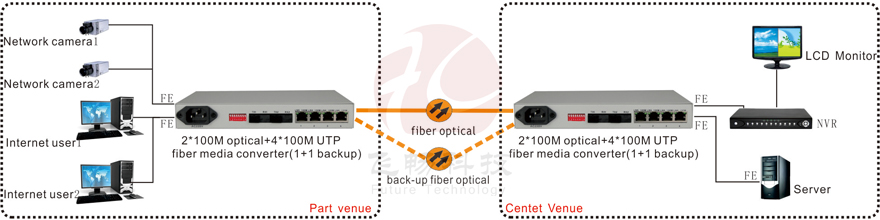

                                                                                  Application Scheme

                                                                                  Applications
