                                                                                  2FE+4RS232/422/485 Fiber Media Converter

                                                                                  Type:FCM-F2R4 Message

                                                                                  Description:single core optice fiber transmission 2 * 10/100M network port and 4 * RS232/422/485 interface

                                                                                  Product Description

                                                                                                 The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100Base-T UTP and 10/100Base-FX or 10/100 Base-T UTP and 10/100Base-FX and 4 channel RS232/422/485 serial device , the design is excellent for keeping your industrial automation applications running continuously. And each converter comes with a  relay output warning alarm to help prevent damage and loss. All the models are subjected to a 100% burn –in test, and available in models that support a standard operating temperature range of 0 to 50°C.


                                                                                  Functional Properties

                                                                                  ? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

                                                                                  ? Device provides 2 Ethernet UTP,4 RS232/422/485 serial port. 1 Ethernet optical port

                                                                                  ? Support full-duplex and half duplex network communication, with auto-negotiation capability;

                                                                                  ? The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol

                                                                                  ? Division of VLAN base PORT, this method does not affect the remote device

                                                                                  ? 802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

                                                                                  ? Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;


                                                                                  Technical Parameters

                                                                                  u  Ethernet UTP Interface

                                                                                  Interface rate: 100/1000 M, half/full duplex auto-negotiation

                                                                                  Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                  MAC Address Capability: 4096

                                                                                  Connector: RJ45, support Auto-MDIX

                                                                                  u  Optical Ethernet interface

                                                                                      Wave Length: 1310nm, 1550nm

                                                                                      Interface rate: 100 M, half/full duplex

                                                                                      Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector: FC/SC

                                                                                      Fiber TransmissionDistance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                      Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u  Serial Interface

                                                                                      Standard

                                                                                      EIA/TIA-232 RS-232 (ITU-T V.28)

                                                                                      EIA/TIA-422 RS-422 (ITU-T V.11)

                                                                                      EIA/TIA-485 RS-485 (ISO/IEC8284)

                                                                                      Serial Interface

                                                                                      RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

                                                                                      RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

                                                                                      RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

                                                                                      RS-232: RXD, TXD, Signal Ground

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size : 19 inch 1U  483X138X44mm( WX DXH))

                                                                                      Simple packaging : 19inch 522 X198 X82mm ( WX DXH)

                                                                                     Piece Weight: 2.1KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

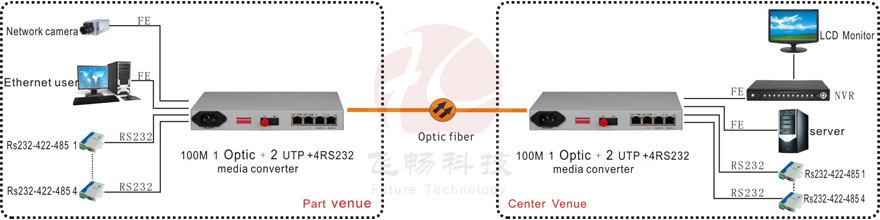

                                                                                  Application Scheme
