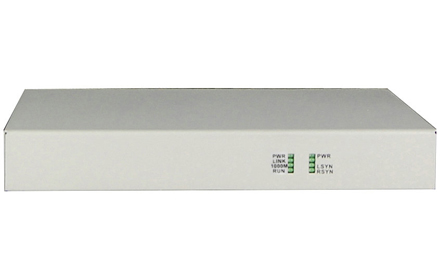

                                                                                  2 Channel Physical lsolation GE Fiber Media Converter

                                                                                  Type:FCM-G2p Message

                                                                                  Description:2 channel physical isolation 1000M Ethernet ， total Bandwidth Bi-Directional 2*1000M

                                                                                  Product Description
                                                                                   This series is IEEE802.3 Ethernet media converter, enabling four 10/100/ 1000Base-T through the optical fiber transmission, where 1,2 and 3,4 port to achieve physical isolation, were able to achieve two-way 1000M bandwidth, fiber distance (20/40/60/80/100 km), the total bandwidth of two-way 2000M.
                                                                                      Two Gigabit Ethernet port has its own independent gigabit bandwidth transmission via an optical fiber, Ethernet, peer received completely independent, non-interfering, independently of each other, that is, the physical isolation. the whole stable, reliable, low power consumption, high integration, small size.
                                                                                  Application occasions:
                                                                                      ?  finance, securities, security and construction sectors while within the network and the public information network, and requires a high degree of physical separation of the two networks for the occasion;
                                                                                      ?  cable resources particularly intense at the same time requires a lot of separate Ethernet path of the occasion;
                                                                                      ?  very suitable for use in the optical path without changing the existing situation on the DSLAM bandwidth expansion;

                                                                                  Functional Properties
                                                                                  ? Atomatically adapt to 10/100 / 1000Mbps environment, easy to upgrade the network;
                                                                                  ? provide physical isolation two 1000M Ethernet access line speed
                                                                                  ?  support full-duplex and half-duplex network communication, with auto-negotiation capability, electrical ports MDI/MDI-X adaptive without manual adjustment;
                                                                                  ? support Max MTU 10240 extra-long VLAN packets that can support IEEE802.1Q agreement Items matching switches use;
                                                                                  ? two switch ports can be divided based VLAN PORT of this partitioning method does not affect the remote device
                                                                                  ? devices with Console port supports super terminal control device
                                                                                  ? 1,2-port switch, 3 and 4-port switch, 1,2 and 3,4 physical isolation
                                                                                  ? 1,2 port can be set to VLAN isolation, 3,4 port too

                                                                                  Technical Parameters

                                                                                  u  Fiber


                                                                                  Optical encoding:              8B10B

                                                                                  Optical Rate:                   2.5G bps

                                                                                           Multi-mode Fiber


                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  1000M Ethernet


                                                                                  Interface rate:                 10/100/1000M, half/full duplex auto-negotiation

                                                                                  Interface Standard:          Compatible with IEEE 802.3ab, IEEE 802.1Q

                                                                                  MAC Address Capability:  4096

                                                                                  Connector:                       RJ45, support AUTO-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                     Piece Weight: 1.8KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

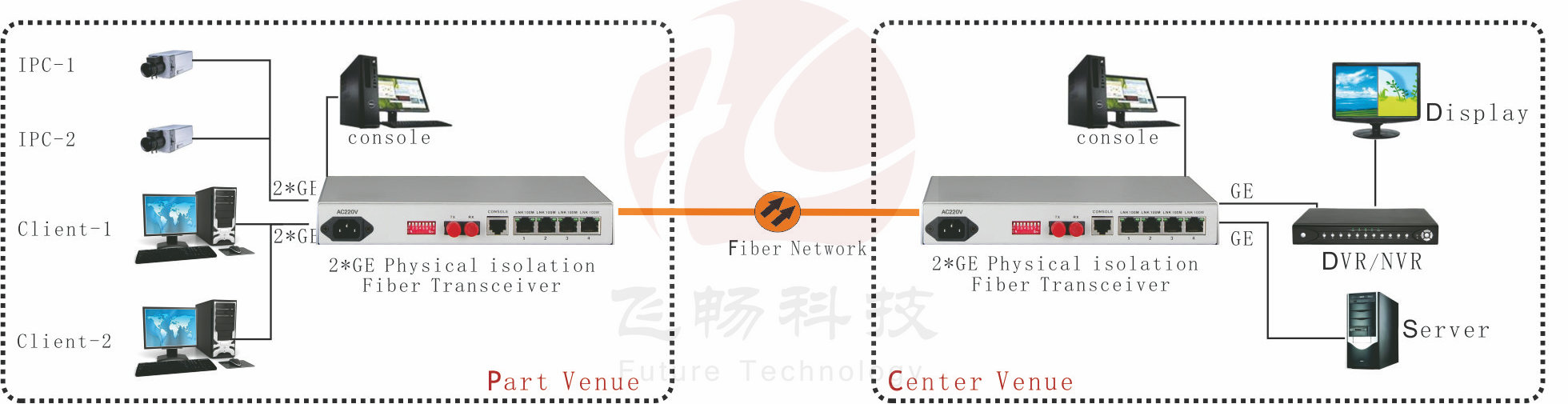

                                                                                  Application Scheme

                                                                                  Applications:



                                                                                  Note: Two Gigabit Ethernet physical isolation above the front IPC and even two Gigabit Ethernet PC, both of which have independent 1000M channel
