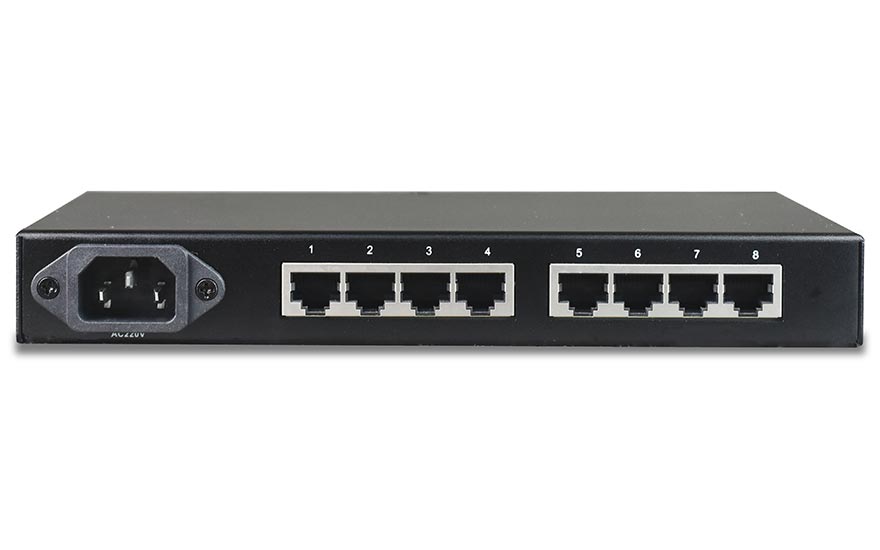

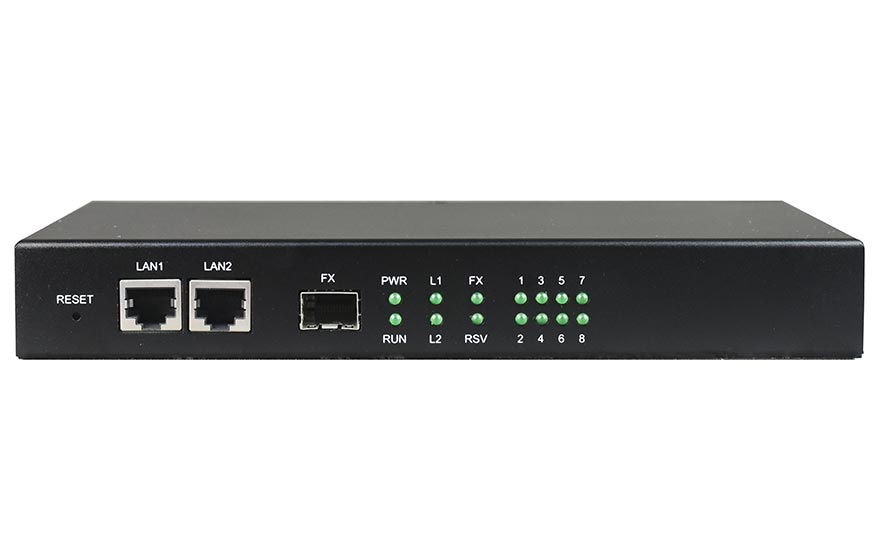

                                                                                  8channel Voice over Ethernet(IP)

                                                                                  Type:FCT-O8/FCT-S8 Message

                                                                                  Description:8*Voice over Ethernet Internal power AC220V/DC48V/DC24V can be optional.

                                                                                  Product Description
                                                                                          The converter encapsulates the voice data in the IP packet supports the UDP packet mode realizes the 1-8 voice service to the 100M Ethernet conversion in the same network segment or through the router to achieve different network segment communication.
                                                                                  Functional Properties
                                                                                  ◆ High transmit efficiency low transmit delay.
                                                                                  ◆ Provide Console(CLI)/WEB management interface easy to install and open;
                                                                                  ◆ Voice port to support FXO/FXS/2-4 Wire E&M / 2-4 wire Audio/Magnet phone interface FXO port plug into PBX FXS port is connected to the user's telephone;
                                                                                  ◆ Voice FXO / FXS interface support for caller ID / reverse polarity billing / fax function;
                                                                                  ◆ Both sides of the device support FXO+FXS hybrid access;
                                                                                  ◆ Ethernet interface rate of 10M / 100M full duplex / half duplex adaptive;
                                                                                  ◆ Support power failure or automatic network recovery;
                                                                                  ◆ Support Ethernet packet out-of-order recovery and cache to anti-network delay;
                                                                                  ◆ Adjustable frame length to balance bandwidth and transmission delay;
                                                                                  ◆ based on hardware design start fast;
                                                                                  ◆ DC-48V / DC24V power supply with polarity automatic detection  function;installation does not need to distinguish between positive and negative.
                                                                                  Technical Parameters
                                                                                  ◆ Ethernet interface(10/100M)
                                                                                  Interface rate: 10/100 Mbps half/full duplex auto-negotiation
                                                                                  Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
                                                                                  MAC Address Capability: 4096
                                                                                  Connector: RJ45 support Auto-MDIX
                                                                                  ◆ FXS Phone Interface
                                                                                  Ring voltage: 75V
                                                                                  Ring frequency: 25HZ
                                                                                  Two-line Impedance: 600 Ohm (pick up)
                                                                                  Return loss: 40 dB
                                                                                  ◆ FXO Switch Interface
                                                                                  Ring detect voltage: 35V
                                                                                  Ring detection frequency: 17HZ-60HZ
                                                                                  Two-line Impedance: 600 Ohm (pick up)
                                                                                  Return loss: 40 dB
                                                                                  EM 2/4 Line
                                                                                  AD: 0dB
                                                                                  DA: 0dB
                                                                                  Two/Four-line Impedance: 600 Ohm
                                                                                  Return loss: 20 dB
                                                                                  ◆ Working environment
                                                                                  Working temperature: -10°C ~ 50°C
                                                                                  Working Humidity: 5%~95 % (no condensation)
                                                                                  Storage temperature: -40°C ~ 80°C
                                                                                  Storage Humidity: 5%~95 % (no condensation)

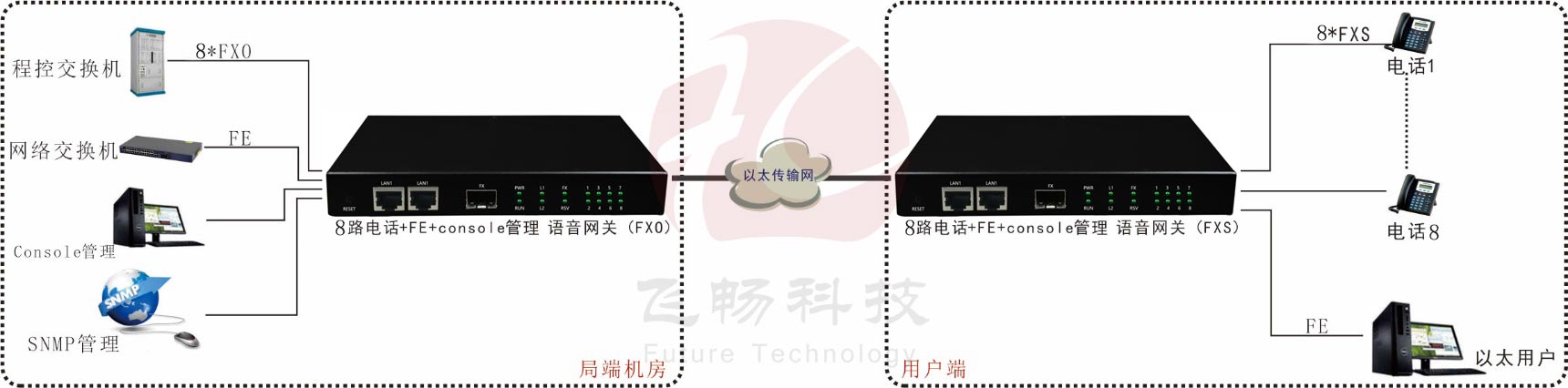

                                                                                  Application Scheme
                                                                                  8channel Voice over Ethernet(IP)
                                                                                  ?
