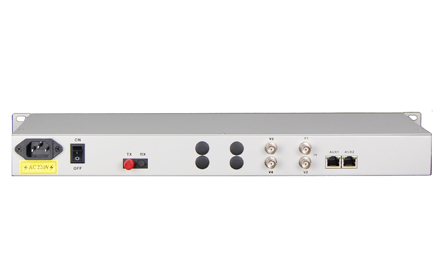

                                                                                  4 *Video+2*GE Video Fiber Transceiver

                                                                                  Type:FCV-V4G2T/R Message

                                                                                  Description:4 *Video+2*GE Video Fiber Transceiver ,2.5G bi-directional optical module, a non-wavelength-multiplexed two devices Synthesis ,With data、Audio、Talkback、telephone、E1、Ethernet、dry connect……

                                                                                  Product Description
                                                                                                 4 video + 1000M Ethernet optical transmitter / receiver uses digital coding technology, the video signal, 2 10/100 / 1000Base-T twisted pair signals, data signals, audio signals and digital signals through a single mode fiber to achieve long-range two-way transmission, professional designed to be compatible with Philips, AD, Vicon, Pelco, and other control systems. Video multi-multiplexed optical transmitter / receiver optical module and the core circuit are made of imported components, high stability, all the optical and electrical interfaces are international standards, adjustment-free installation for different working environment.

                                                                                  Functional Properties
                                                                                  ? All-digital fiber optic transmission platform, multi-service platform with flexible configuration
                                                                                  ? can provide general-desktop mini desktop, centralized card rack in many ways
                                                                                  ? Ethernet line with international standards: IEEE 802.3ab 1000Base-T
                                                                                  ? 1000M Ethernet wire-speed rate support
                                                                                  ? VLAN support the transmission of long packets;
                                                                                  ? With broadcast storm protection, balanced flow, isolation and conflict error detection functions
                                                                                  ? 10Mbps / 100Mbps / 1000Mbps automatically adapt to the electrical port MDI / MDI-X Adaptive without manual adjustment
                                                                                  ? data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
                                                                                  ? single fiber transmission, optional dual fiber
                                                                                  ? dan receive no light is detected, the remote device is powered down or disconnected fiber
                                                                                  ? PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality
                                                                                  ? asynchronous data transfer rate than 110-115.200Kbps
                                                                                  ? asynchronous data available for RS232 / RS485 / RS422 / Manchester code
                                                                                  Technical Parameters

                                                                                  u  Video interface

                                                                                      Video Bandwidth:   5Hz~10Hz
                                                                                      Rate input & output Level:  1Vp-p
                                                                                      Sampling Frequency:  16.4M (typical value)
                                                                                      Signal Impedance:  75 Ω
                                                                                      Signal Interface:  BNC/PAL/NTSC/SECAM
                                                                                      Differential Gain (DG):  <1.3 %( typical value)
                                                                                      Differential Phase (DP):  <1.3° (typical value)
                                                                                      Signal Noise Ratio (SNR):  63dB

                                                                                  u   Date interface

                                                                                      Data Interface:  RS-232、RS-422、RS-485、TTL
                                                                                      Data Mode:  NRZ、Manchester、Bi-phase
                                                                                      Data Rate:  110bps-115.200Kbps
                                                                                      Interface Port:  RJ45

                                                                                  u   Audio

                                                                                      Audio input & output Level: 0.5-4Vp-p
                                                                                      Audio input & output impedance: 600Ω (balance / imbalance)
                                                                                      Audio Bandwidth: 20Hz~20KHz
                                                                                      Nonlinear distortion coefficient: < 1 %
                                                                                      Audio signal-to-noise ratio (weighted): S/N>85dB

                                                                                      Interface Port: RJ45/RCA

                                                                                  u  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  Switch

                                                                                      Respond Time: <0.5ms
                                                                                      Switch Signal: 30VDC/0.5A

                                                                                  u  Optical

                                                                                      Respond Time: <0.5ms
                                                                                      Switch Signal: 30VDC/0.5

                                                                                      Ringing voltage:75V
                                                                                      Ringing frequency:25HZ
                                                                                      Wave Length:1470,1490,1510,1530,1550,1570,1590和1610nm
                                                                                      Fiber:Single-mode Fiber 9/125um
                                                                                      Optical interface:FC 、SC、ST
                                                                                     Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
                                                                                     Transmission distance may also be limited by fiber optic bandwidth.
                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V;DC –48V;DC +24V

                                                                                      Power consumption: ≤5W

                                                                                  u   Dimension

                                                                                      Product Size:         443X110X44mm(WXDXH)

                                                                                      Piece Weight :      1.5KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

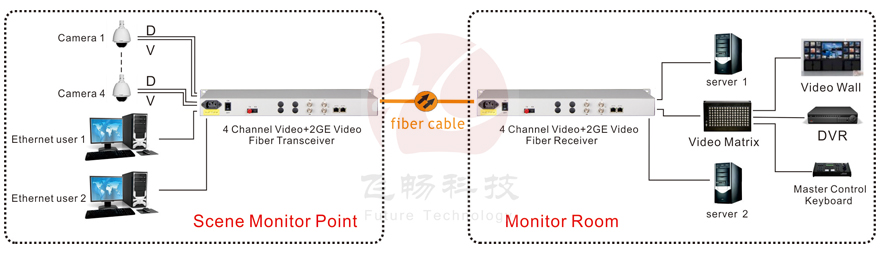

                                                                                  Application Scheme

                                                                                  Applications


                                                                                  DataSheet Download
                                                                                  ?
