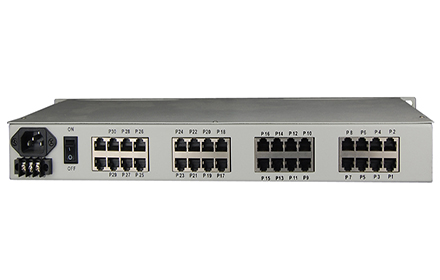

                                                                                  30FXS/FXO over E1（CAS signaling）

                                                                                  Type:FCC-CS30 Message

                                                                                  Description:30*telephone to one signaling or signaling(CAS)you can set the ABCD code by Console

                                                                                  Product Description
                                                                                                The device is transmitting equipment development based on the company developed a E1 transmission line for ultra large scale integrated circuit. Has a sound alarm function optional 1~30 voice. 16 slot and signaling No. 1 signaling or signaling to pass; electric part of equipment for the whole circuit the reliability stability low power consumption high integration small volume easy installation and maintenance.
                                                                                  Functional Properties
                                                                                  ◆   based on proprietary integrated circuit;
                                                                                  ◆   machine for board design;

                                                                                  ◆   16 signaling with the 1st slot signaling or channel associated signaling (CAS) to pass with E1 digital trunk interface cards and E1 PBX to pass;

                                                                                  ◆   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;
                                                                                  ◆   1-30 channels of voice access support caller ID function;
                                                                                  ◆   FXS voice ports support port FXS ports connected to the user's phone;
                                                                                  ◆   desktop device can support independent SNMP network management (optional);
                                                                                  ◆   multiple power mode options: AC220V DC-48V / DC24V etc;
                                                                                  Technical Parameters

                                                                                  ◆   Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um 62.5/125um

                                                                                       Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)
                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  ◆   E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  ◆    Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  ◆   FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆   FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆   EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  ◆   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  ◆   Dimension

                                                                                      Product Size:         485X200X45mm(WXDXH) 19 1U

                                                                                      Simple packaging:   522X198X82mm(WXDXH)

                                                                                      Piece Weight :  2.4KG

                                                                                  ◆   Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

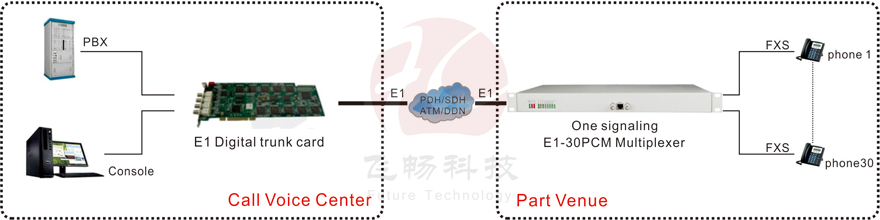

                                                                                  Application Scheme

                                                                                  Applications
