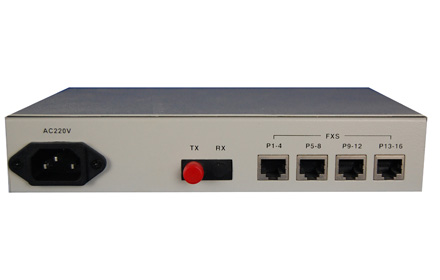

                                                                                  16*POTS Fiber Mux(Desktop Tpye)

                                                                                  Type:FCP-O16/FCP-S16 Message

                                                                                  Description:16 * telephone（Desktop Tpye）, Support 4U rackmount,SNMP

                                                                                  Product Description
                                                                                               The telephone Optical Desktop provides 16 FXO / FXS telephone, wall-mounted and can provide plug-4U rack, support SNMP network management.
                                                                                  Functional Properties

                                                                                  ? Based on proprietary integrated circuit;

                                                                                  ? support FXO voice port FXS ports and magneto telephone interface; FXO port and docking PBX,

                                                                                         FXS port is connected to the user's phone;

                                                                                  ? Voice FXO / FXS access, support caller ID function and reverse polarity billing functions;

                                                                                  ? Support Telephone Number mutual function of each site;

                                                                                  ? unrepeated transmission distance of up to 2 to 120 km;

                                                                                  ? 4U rack machines can provide plug-in, available SNMP network management;

                                                                                  ? multiple power mode options: AC220V, DC-48V / DC24V, etc;

                                                                                  ? telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs,

                                                                                        the peak output voltage 6KV open standards;

                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         216X130X42mm(WXDXH)

                                                                                         Piece Weight :    1.3KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

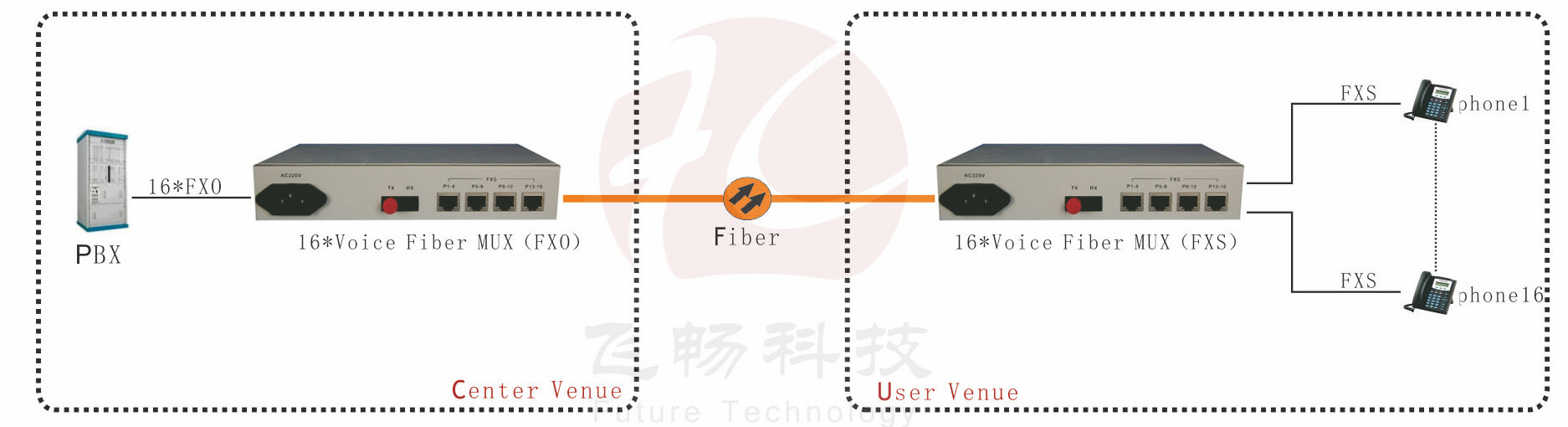

                                                                                  Application Scheme

                                                                                  Applications:
