                                                                                  Modular multi-service Fiber MUX

                                                                                  Type:FC2PM-E16 Message

                                                                                  Description:LCD display，key control 4FE，With 4 multifunction slots， with ALS function，Console or SNMP，1+1 Back up Optic fiber max voice number:64

                                                                                  Product Description

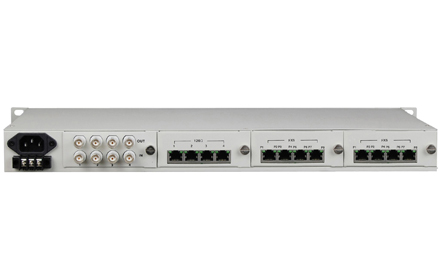

                                                                                          This device is modular structure point-to-point optical transmission equipment with LCD display uses the FPGA chips and easy to upgrade. The Main board provide 4*100M channel Ethernet data and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422 two optical interface for optional 1+1 auto protection switch (APS).

                                                                                          4 slots of tributary with variant plug-in modules which included 4xE1 channels module 4/8/16 x FXO/FXS module and 2x Nx64K V.35 module.The maximum capacity will be up 4 plug-in modules which could be combinations with above modules.The high flexibility performance is the best solution for voice/data/video services in existed market.

                                                                                  Functional Properties

                                                                                  Ø Provides total 16 E1 transparent transmission capacity ;

                                                                                  Ø With char 16*2 LCD display and SNMP agent inside.

                                                                                  Ø Provide Console manage interface(RS232)

                                                                                  Ø Provice one hotline channel for option;

                                                                                  Ø Provide two SFP fiber interfaces one as master the other as slave insuring uninterrupted service transmission.

                                                                                  Ø The rate of optical port is 155Mbps transmission range can reach 25KM 40KM 60KM 80KM or 100KM;

                                                                                  Ø   Provide two fiber interface 1+1 protect（APS）function and ALS（Automatic Laser Shutdown/Reduction）function

                                                                                  Ø   Provide 4 slots plug-in modules:



                                                                                           u 4×unframed E1 module（75Ω）/（120Ω）

                                                                                           u 4×framed E1 module（75Ω）/（120Ω）any timesolts can be set

                                                                                           u 4×FXO/FXS/EM2-4/Magnet telephone module

                                                                                           u 8×FXO/FXS/2 line audio/Magnet telephone module

                                                                                           u 16×FXO/FXS/2 line audio/Magnet telephone module

                                                                                           u 2×V.35 (2.048M Fixed speed) module

                                                                                           u 2×V.35 (N*64K N=1-32) module

                                                                                           u 4×RS232/422/485 module

                                                                                           u 4*FE to E1 bridge(wire speed 2.048M) module

                                                                                  Ø Provide 4FE(wire speed 100M)Ethernet channelsupport mutual negatiate Ethernet bandwidth is set on base on multiple of 32K.;

                                                                                  Ø Ethernet port supports full/half duplex 10M/100M auto-ataptable;

                                                                                  Ø Ethernet port supports VLAN function and has 4 devision mode for user selection;

                                                                                  Ø Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;

                                                                                  Ø Has complete alarm function and can monitor remote device status;

                                                                                  Ø Supports E1 loop from remote so as to detect and manage device conveniently;

                                                                                  Ø  The combination AC220V and DC-48V for redundant


                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um 62.5/125um

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance) 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  u  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         216X140X31mm(WXDXH)

                                                                                         Piece Weight :    1KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

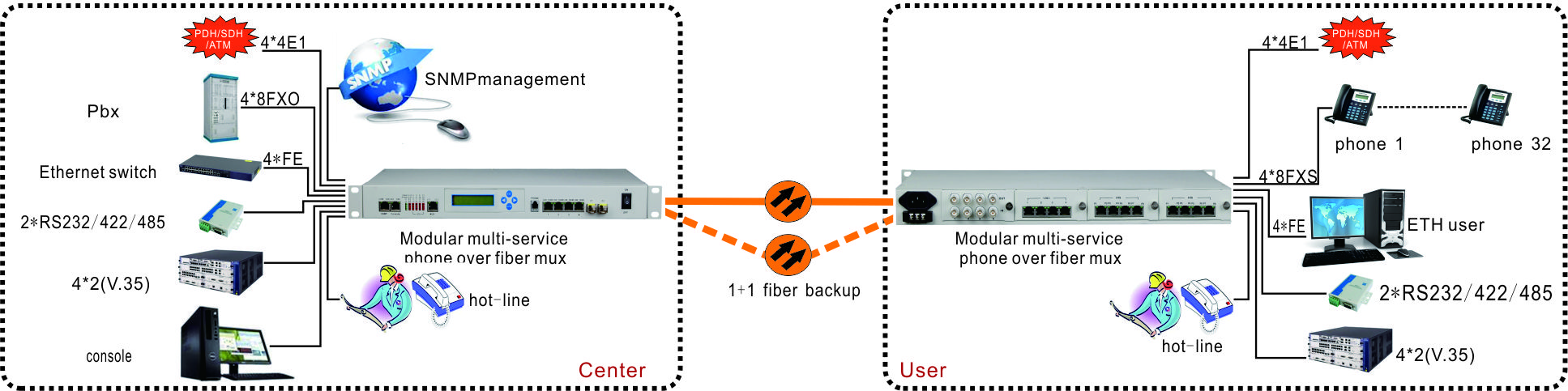

                                                                                  Application Scheme

                                                                                  Applications





                                                                                  The motherboard provides:
                                                                                        1. LCD display;
                                                                                        2.4-way wire-speed 100M shared Ethernet channel;
                                                                                        3.2-way transparent RS232 / 422/485 asynchronous channels;
                                                                                        4.1 channel public telephone
                                                                                        5. SNMP network management

                                                                                  4 slot supports mixed insertion provide:
                                                                                            u  4 × E1 module (75Ω) / (120Ω)
                                                                                            u  4 × framing E1 module (75Ω) / (120Ω) you can set an arbitrary time slot
                                                                                            u  4 × FXO / FXS / EM2-4 / magnet module
                                                                                            u  8 × FXO / FXS /2 wire audio / magnet module
                                                                                            u  16 × FXO / FXS /2 wire audio / magnet module
                                                                                            u  2 × V.35 (2.048M fixed rate) module
                                                                                            u  2 × V.35 (N * 64K N = 1-32) module
                                                                                            u  4 × RS232 / 422/485 / switch module
                                                                                            u  4 Ethernet bridge (rate 2.048M) module
                                                                                  As above if you want to achieve 8E1 + 4FE + 32-way telephone (FXO / FXS) function you can configure two 4E1 cards two 16xFXO / S telephone cards
