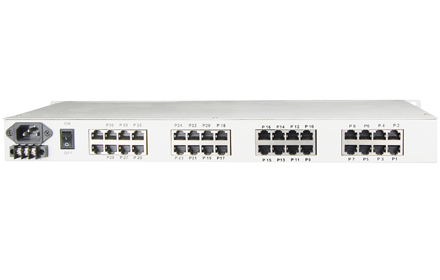

                                                                                  Fiber-30Voice + 4E1 + 4FE + 4RS232 Multiplexer

                                                                                  Type:FCP-O30E4F4R4C1/FCP-S30E4F4R4C1 Message

                                                                                  Description:30 * telephone，4E1，4*100 Mbps Ethernet，Console or SNMP，Support 6U rackmount

                                                                                  Product Description

                                                                                              This device provides 30Channel telephone 1-4Channel E1 interface, 4Channel 10M/100M Ethernet interface (Line Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.


                                                                                  Functional Properties

                                                                                  ? Based on self -copyright IC

                                                                                  ? E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology Voice port supports FXO and FXS port,

                                                                                  ? Voice port supports FXO port and FXS ports, EM2 / 4 audio interface, magneto telephone interface;

                                                                                        FXO port and docking PBX connected to FXS port and the user's phone;

                                                                                  ? Voice FXO/FXS access, supports caller ID feature and reverse polarity billing functions
                                                                                  ? Support various sites mutual number allocation function
                                                                                  ? Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;

                                                                                       1~4Channel voice, 1~8Channel switch or two/four line audio and so on
                                                                                  ? Ethernet interface supports10M/100M, half/full duplex auto- adaptable, support VLAN

                                                                                  ? 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation

                                                                                  ? Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)
                                                                                  ? The transmission distance is up to 2-120Km without interruption
                                                                                  ? AC 220V, DC-48V, DC24V can be optional


                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         485X200X45mm(WXDXH) 19 1U

                                                                                      Simple packaging:   522X198X82mm(WXDXH)

                                                                                      Piece Weight :  2.4KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)







                                                                                  Application Scheme

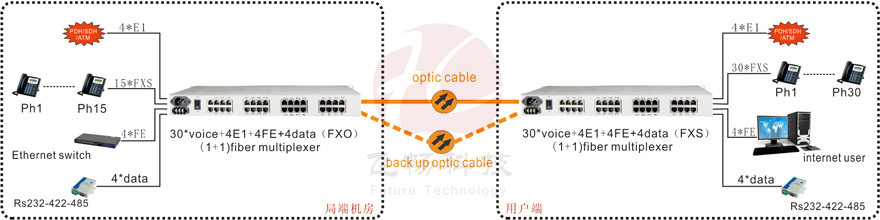

                                                                                  Applications  1

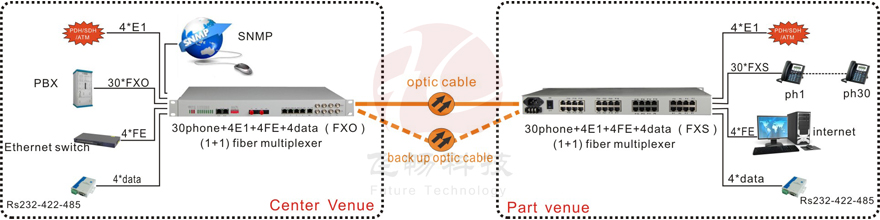

                                                                                  Applications  2
