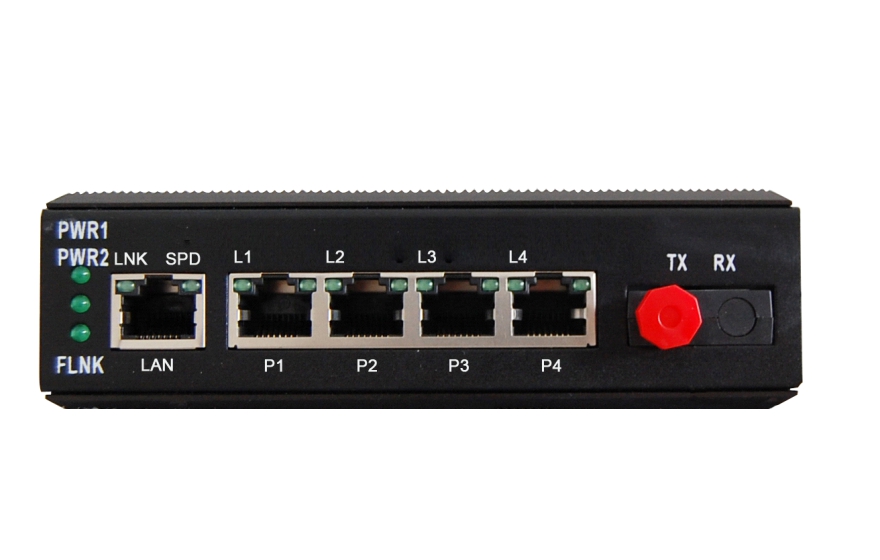

                                                                                  Industrial Rail ４*Voice +1*FE Fiber MUX

                                                                                  Type:FCPG-O4F1/FCPG-S4F1 Message

                                                                                  Description:This series of products, is developed in the companys special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice access, 1*FE interface (wire speed

                                                                                  Product Description
                                                                                    This series of products, is developed in the company's special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice  access, 1*FE  interface (wire  speed  100M).
                                                                                  Functional Properties
                                                                                  ◆  Based on independent intellectual property rights of integrated circuits;
                                                                                  ◆  Voice port support FXO / FXS / E&M2-4  / 2-4 wire audio / magnet telephone interface, FXO port and program-controlled switches docking, FXS port and the user's telephone connected;
                                                                                  ◆  1-4 voice access, support caller ID / reverse polarity billing / fax function; support each site of the number of features;
                                                                                  ◆  1 channel FE Ethernet, bandwidth for the wire speed 100M, automatically adapt to 10/100Mbps environment, easy to upgrade the network;
                                                                                  ◆  Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability, MDI / MDI-X adaptive without manual adjustment;
                                                                                  ◆  Optical port without relay transmission distance of up to 2 to 120 km;
                                                                                  ◆  Support 2U chassis card, support SNMP network management;
                                                                                  ◆  Support a wide range of AC and DC input;
                                                                                  ◆  Support internal isolation, redundant dual power input;
                                                                                  ◆  Power supply support overload protection, anti-reverse protection;
                                                                                  ◆  Meet the requirements of industrial four electromagnetic compatibility;
                                                                                  ◆  Super lightning protection: anti-lightning, anti-sensor high pressure, anti-surge, etc .;
                                                                                  ◆  No fan efficient cooling, reduce the repair time;
                                                                                  ◆  IP40 enclosure protection class, able to withstand the harsh environment of the test;

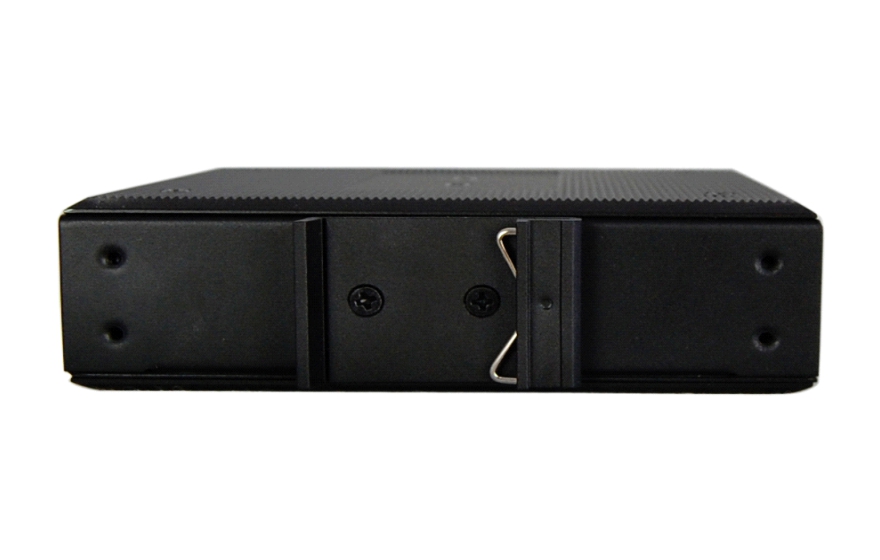

                                                                                  ◆  Rail or wall mounted Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃, all models are 100% roasting machine test;
                                                                                  ◆  Telephone / ethernet  interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
                                                                                  Technical Parameters

                                                                                  ◆   Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um 62.5/125um

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)



                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  ◆   FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆   FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆   EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  ◆   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  ◆   Dimension

                                                                                      Product Size:    Mini Type    216X140X31mm(WXDXH)

                                                                                                            19inch       485X200X45mm(WXDXH)

                                                                                       Piece Weight :    mini 1KG / 19inch  2.4KG

                                                                                  ◆   Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

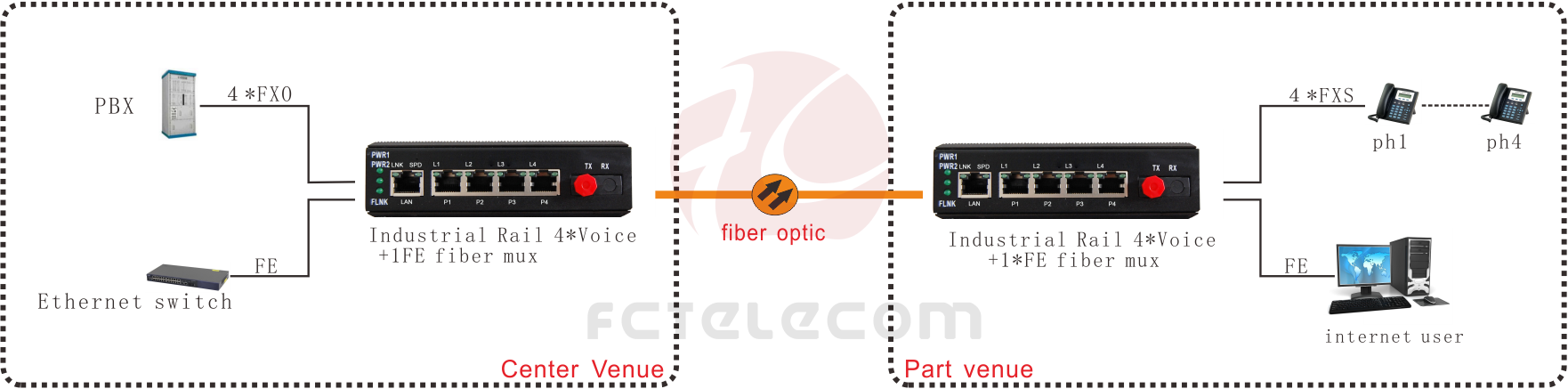

                                                                                  Application Scheme
