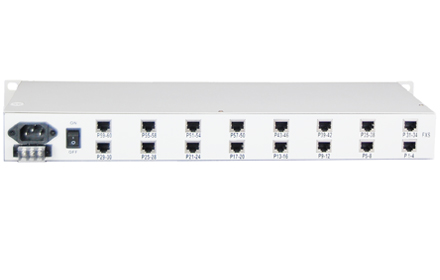

                                                                                  Fiber-60Voice + 4E1 + 4FE Multiplexer

                                                                                  Type:FCP-O60E4F4C1/FCP-S30E4F4C1 Message

                                                                                  Description:60 * telephone，4E1，4*100 Mbps Ethernet，Console or SNMP，Support 6U rackmount

                                                                                  Product Description

                                                                                               This series of equipment is developed by our company special vlsi PDH optical fiber transmission on the basis of the development of point-to-point optical transmission equipment. This product is a 19 inch 1 u rack installation, 60 phone 1 ~ 4 road E1 interface, 4 road 10 m / 100 m (100 m) wire speed fast Ethernet interface. Road 4 Ethernet interface for the exchange, can support vlans. The application is very flexible. Have perfect alarm function, the machine work stable and reliable, low power consumption, high integration, small volume.



                                                                                  Functional Properties

                                                                                  ? Based on proprietary integrated circuit;
                                                                                  ? 1U19-inch rack-mount;

                                                                                  ? 1-60 channels of voice access, supports Caller ID and reverse polarity billing functions;
                                                                                  ? Support Telephone Number mutual function of each site;

                                                                                  ? FXO and FXS voice ports support port, FXO port and docking PBX, FXS port is connected to the user's phone;

                                                                                  ? E1 interface complies with G.703 recommends using digital clock recovery and smooth phase-locked technology;

                                                                                  ? optional 4-channel Ethernet interface for the exchange of the mouth, it can be divided VLAN;

                                                                                  ? Ethernet interface rate of 10M / 100M, full / half duplex adaptive;

                                                                                  ? can detect when the optical signal is lost for the end device powered down or fiber barrier, and through the LED indicates alarm;

                                                                                  ? with this end in view job status display function remote device;

                                                                                  ? Provide command remote loopback interface, easy to line maintenance;

                                                                                  ? Provide Console management interface, easy to install open;

                                                                                  ? unrepeated transmission distance of up to 2 to 120 km;

                                                                                  ? multiple power mode options: AC220V, DC-48V / DC24V, etc;

                                                                                  ? DC-48V / DC24V power supply with automatic polarity detection function, when installed without distinction between positive

                                                                                       and negative;

                                                                                  ? telephone interface with lightning protection, lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs,

                                                                                         open-peak output voltage 6KV standards.

                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         485X200X45mm(WXDXH) 19 1U

                                                                                      Simple packaging:   522X198X82mm(WXDXH)

                                                                                      Piece Weight :  2.4KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

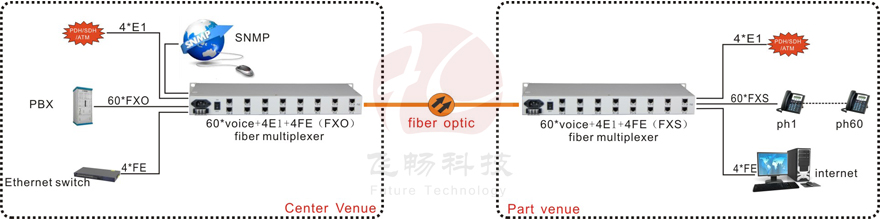

                                                                                  Application Scheme
