                                                                                  4*Voice+4FE+2*Serial(Desktop Tpye)

                                                                                  Type:FCP-O4F1/FCP-S4F1 Message

                                                                                  Description:4 * telephone（Desktop Tpye），4*100 Mbps Etherne4*RS232/422/485 serial interface， Support 4U rackmount，SNMP

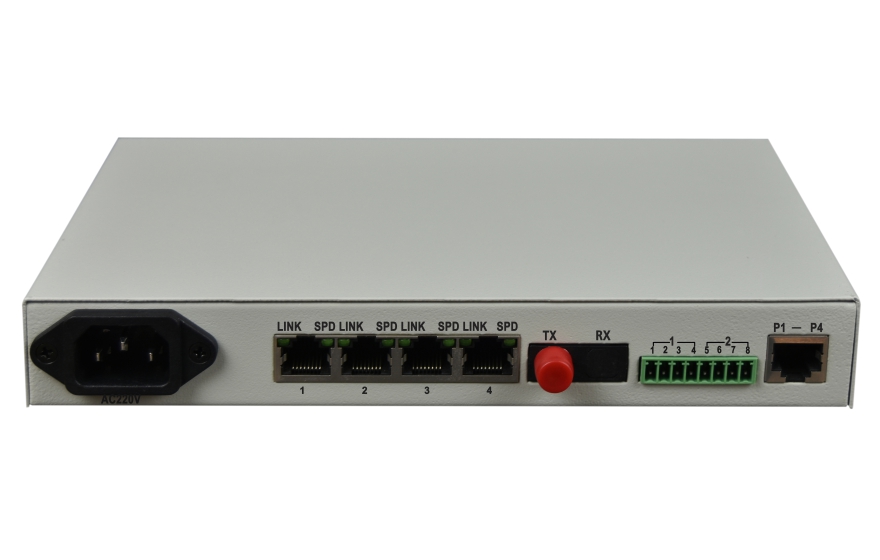

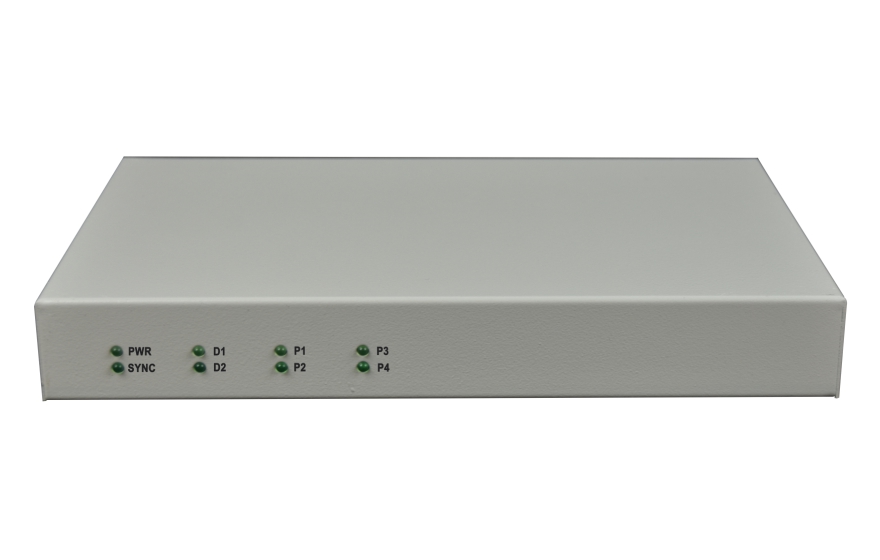

                                                                                  Product Description
                                                                                      The Equipment supports 4*100M Ethernet +4*Voice+ 2*RS232/422/485/Dry contact  interface to the optical fiber converter to achieve network + telephone + serial data + Dry contact 4 type interface in the same core Optical fiber transmission is widely used in a variety of industrial control card instrumentation and other occasions not only save fiber resources but also save fiber equipment reduce the point of failure to facilitate the maintenance of equipment. 4*100M Ethernet interface bandwidth for the wire speed 100M the Ethernet interface on the market are generally 10M /50M or <100M speed;
                                                                                  Functional Properties
                                                                                  ◆  Equipment to provide 4*100M FE port; 4*voice interface 2*serial data interface / 4*dry contact;
                                                                                  ◆  Voice port support FXO/FXS/2 Wire Audio/Magnet phone interface FXO port plug into PBX  FXS port is connected to the user's telephone;
                                                                                  ◆  FXO/FXS telephone interface support caller ID / reverse polarity billing / fax function;
                                                                                  ◆  Both sides of the device support FXO+FXS hybrid access;
                                                                                  ◆  RS232/RS485/RS422/TTL/Dry contact transmission channel flexible application;
                                                                                  ◆  Serial interface can be transmitted asynchronously from 300-115200 baud rate adaptive serial data;
                                                                                  ◆  4*FE bandwidth is wire speed 100M automatically adapt to 10/100Mbps environment easy to upgrade the network;
                                                                                  ◆  Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability MDI / MDI-X adaptive without manual adjustment;
                                                                                  ◆  A variety of power options: AC220V DC-48V / DC24V;
                                                                                  ◆  Telephone/Ethernet/serial-data interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;



                                                                                  Technical Parameters

                                                                                  ◆  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um 62.5/125um

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  ◆  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45 support Auto-MDIX

                                                                                  ◆  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  ◆  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  ◆  Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  ◆  Dimension

                                                                                      Product Size:         216X140X31mm(WXDXH)

                                                                                         Piece Weight :    1KG

                                                                                  ◆  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

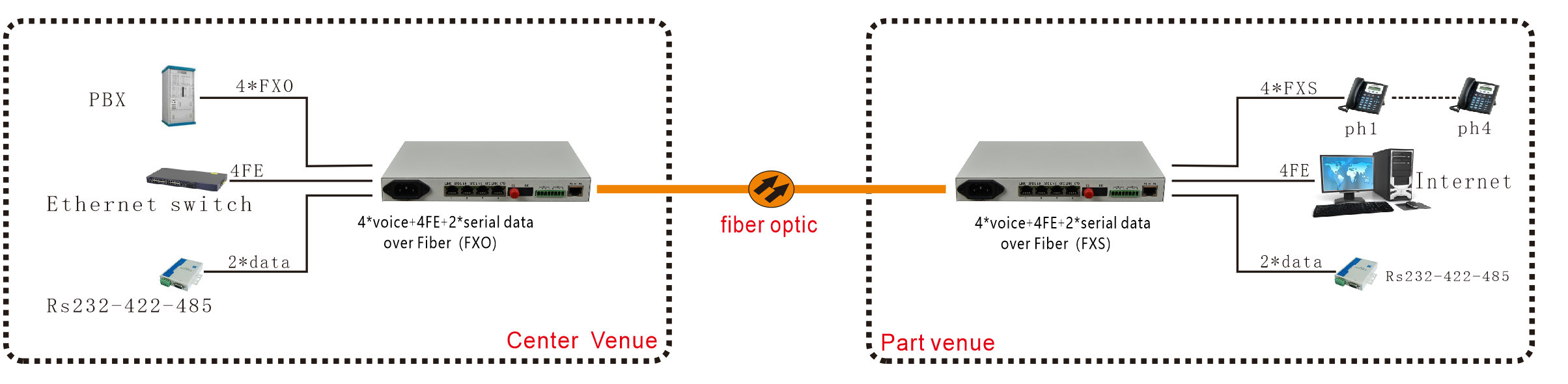

                                                                                  Application Scheme

                                                                                  Applications

                                                                                  4*Voice+4FE+2*Serial(Desktop Tpye)
