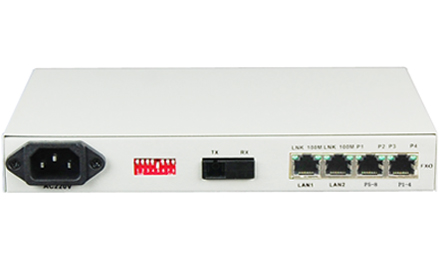

                                                                                  8*POTS+2FE Fiber Mux(Desktop Tpye)

                                                                                  Type:FCP-O8R4/FCP-S8R4 Message

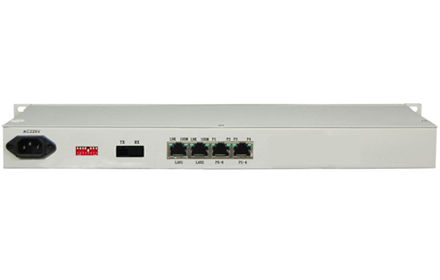

                                                                                  Description:8 * telephone（Desktop Tpye），2*100 Mbps Ethernet， Support 4U rackmount，SNMP

                                                                                  Product Description
                                                                                                This series is based on the company's proprietary research on VLSI, developed point optical transmission equipment. This product provides four-way telephone; two-way Fast Ethernet interface, support VLAN division. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.
                                                                                  Functional Properties

                                                                                  ? Based on proprietary integrated circuit;

                                                                                  ? 1 ~ 4-way voice access, support caller ID function and reverse polarity billing functions;

                                                                                  ? 2-way Ethernet interface, the rate of 10M / 100M, full / half duplex adaptive, two-way Ethernet can be set to logical isolation;

                                                                                  ? support FXO voice port FXS ports and port, FXO port and docking PBX, FXS port is connected to the user's phone;

                                                                                  ? Support Telephone Number mutual function of each site;

                                                                                  ? optical port unrepeated transmission distance of up to 2 to 120 km;

                                                                                  ? multiple power mode options: AC220V, DC-48V / DC24V, etc;

                                                                                  ? DC-48V / DC24V power supply with automatic polarity detection function, when installed without distinction

                                                                                         between positive and negative.


                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  E1 Interface

                                                                                      Interface Standard:      comply with protocol G.703;
                                                                                      Interface Rate:             n*64Kbps±50ppm;
                                                                                      Interface Code:            HDB3;

                                                                                      E1 Impedance:             75Ω (unbalance), 120Ω (balance);

                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823

                                                                                      Allowed Attenuation:   0~6dBm

                                                                                  u  Ethernet interface(100/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  FXS Phone Interface

                                                                                      Ring voltage: 75V

                                                                                      Ring frequency: 25HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  FXO Switch Interface

                                                                                      Ring detect voltage: 35V

                                                                                      Ring detection frequency: 17HZ-60HZ

                                                                                      Two-line Impedance: 600 Ohm (pick up)

                                                                                      Return loss: 40 dB

                                                                                  u  EM 2/4 Line

                                                                                      AD: 0dB

                                                                                      DA: -3.5dB

                                                                                      Two/Four-line Impedance: 600 Ohm

                                                                                      Return loss: 20 dB

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         136X131X31mm(WXDXH)

                                                                                         Piece Weight :    1KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)







                                                                                  Application Scheme

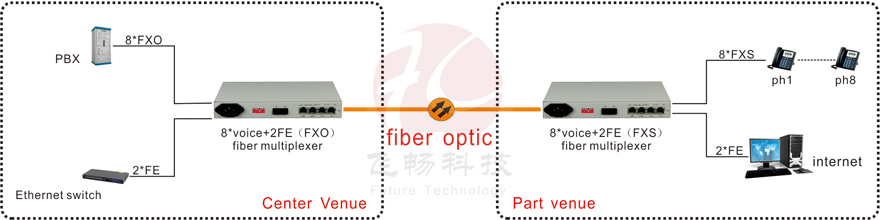

                                                                                  Applications  1

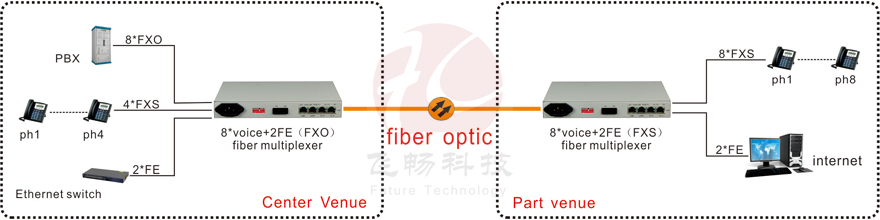

                                                                                  Applications 2
