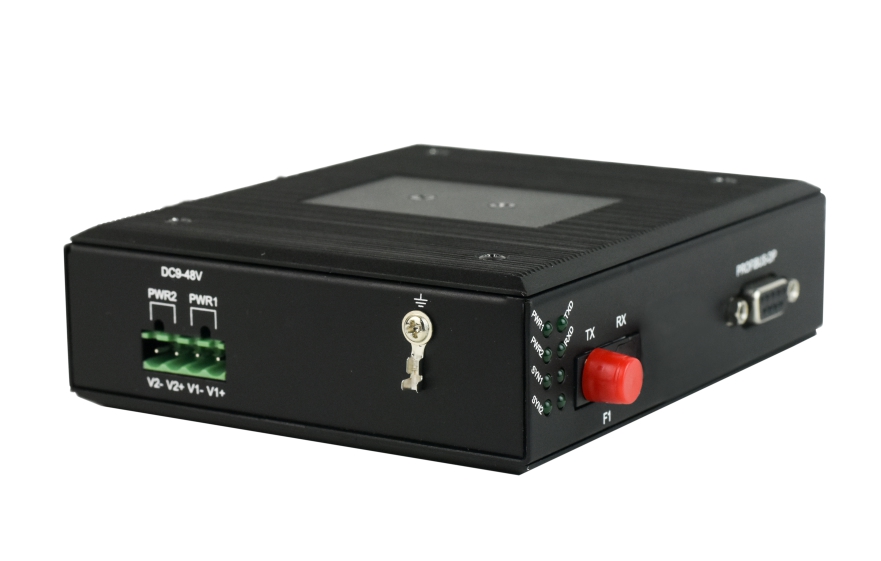

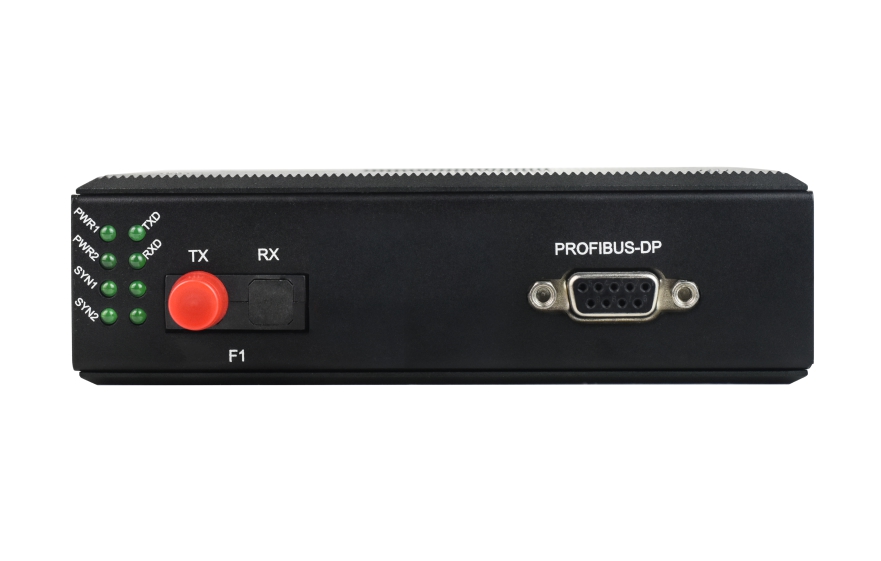

                                                                                  Industrial rail 1 port Profibus-DP Multiplexer

                                                                                  Type:FCP-P1G Message

                                                                                  Description:Transmit 1 port Profibus DP interface over fiber optic;1 fiber optic interface; 1 Profibus DP interface.

                                                                                  Product Description
                                                                                          This series of equipment using large FPGA design, using the original technology, can support a channel Profibus-DP to fiber optic repeater, communication rate 0-12Mpbs. , IP40 protection grade, wavy aluminum reinforced case, 35mm DIN rail mounting, AC & DC (9~55V) wide power input, power supply redundancy and isolation protection. -40~75°C operating temperature range, able to meet the requirements of various industrial sites, providing convenient fiber optic communication solutions.
                                                                                  Functional Properties
                                                                                  ◆ The device is used in pair, the signal input terminal, a signal output terminal;
                                                                                  ◆ Provide 1 Profibus DP field bus, communication baud rate adaptive 9600-12Mbps;
                                                                                  ◆ Multimode/single mode fiber optional, multimode can transmit 2KM, single mode can transmit 20-120KM, ST/SC/FC interface is optional;
                                                                                  ◆ With signal fault protection function; omnidirectional display of electrical interfaces and fiber operating conditions
                                                                                  ◆ Profibus DP interface anti-radar to IEC61000-4-5 (8/20μS). Differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard;
                                                                                  ◆ Support wide range of 9-48V AC and DC input, support internal isolation, redundant dual power input, power supply overload protection, anti-reverse protection；
                                                                                  ◆ Meet the industrial four-level electromagnetic compatibility requirements;
                                                                                  ◆ Super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc；
                                                                                  ◆ Fanless efficient heat dissipation, reducing repair time；
                                                                                  ◆ IP40 enclosure protection level, can withstand the harsh environment；

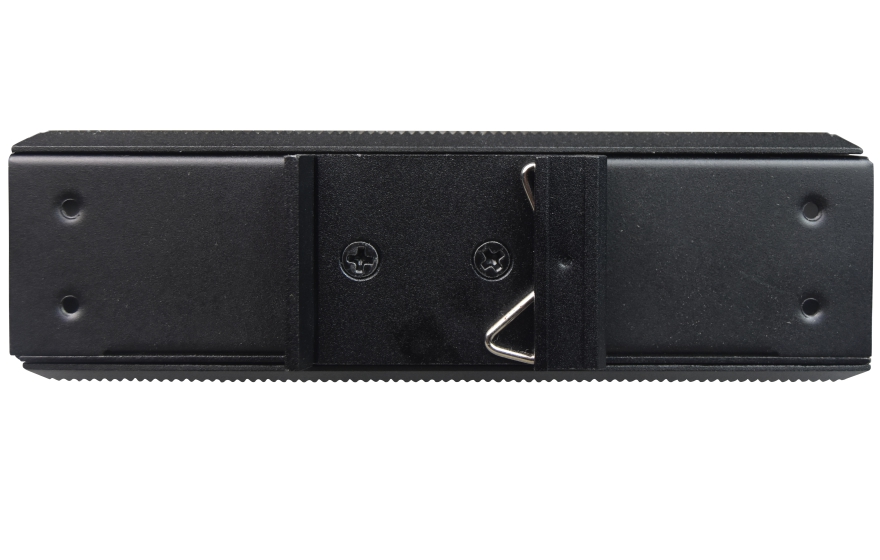

                                                                                  ◆ DIN 35mm rail or wall mount；
                                                                                  ◆ Wide temperature type: working temperature -40 ° C ~ +85 ° C；
                                                                                  ◆ All models are tested by 100% baking machine, warranty period: 5 years.
                                                                                  Technical Parameters
                                                                                  ◆ Fiber optic
                                                                                  Optical port: 1
                                                                                  Optical fiber: single fiber and dual fiber
                                                                                  Fiber Interface: FC/SC/ST/LC (SFP)
                                                                                  Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
                                                                                  No relay transmission distance: 20~120Km
                                                                                  Typical transmit power:
                                                                                  Single mode 1310/1550nm: ≥-9dBm
                                                                                  Multimode 850nm: -18dBm
                                                                                  Multimode 1310nm: -25dBm
                                                                                  Acceptable sensitivity range: -28dBm~- 40dBm
                                                                                  ◆ Profibus DP interface
                                                                                  Standard：Support Profibus?DP standard
                                                                                  Rate：9.6kBit/s、19.2?kBit/s、45.45kBit/s、 93.75k?kBit/s、187.5kBit/s、500kBit/s、 1.5MBit/s、6MBit/s?and?12MBit/s.
                                                                                  Physical interface： 9-pin D-Sub jack connector with pin definitions in accordance with Profibus DP protocol specifications
                                                                                  Rate setting: 9600-12Mbps/s automatic identification
                                                                                  Signal delay (electrical port): ≤11Bit
                                                                                  Terminal resistance: This unit does not have a terminating resistor, please connect as needed
                                                                                  ◆ Working environment
                                                                                  Working temperature: -40℃—+85℃
                                                                                  Storage temperature:  -40℃—+85℃
                                                                                  Working humidity: 0%—95%（no condensation）
                                                                                  MTBF：   ＞100,000 hours

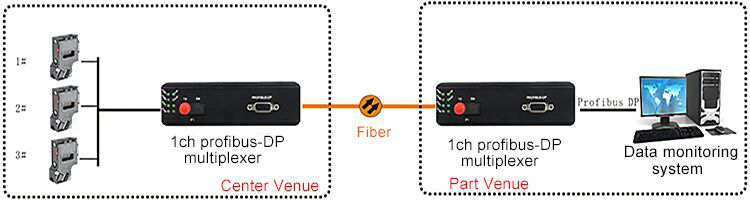

                                                                                  Application Scheme
                                                                                  Industrial rail 1 port Profibus-DP Multiplexer
                                                                                  ?
