                                                                                  Products center

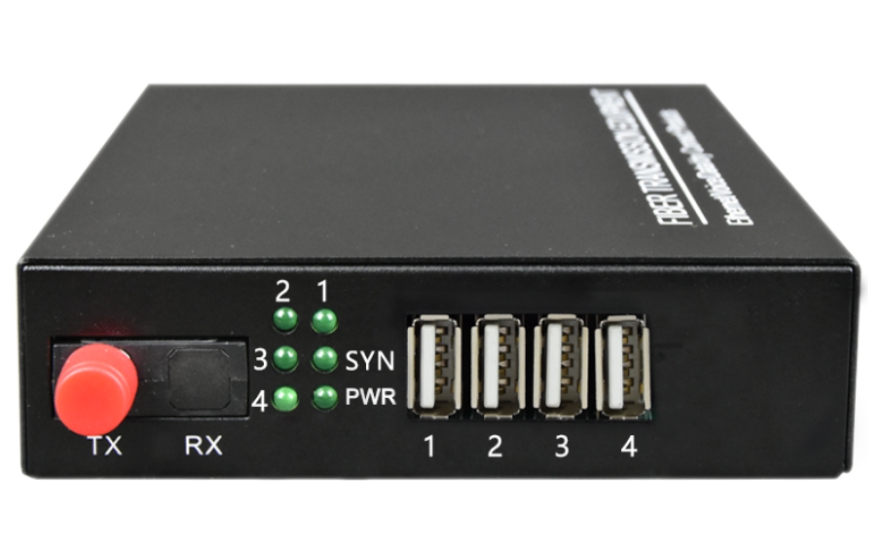

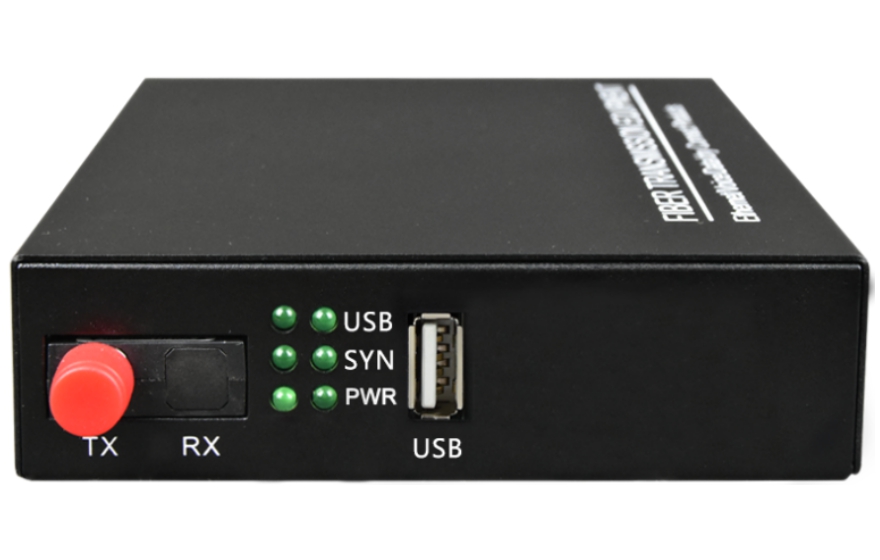

                                                                                  USB 2.0 Fiber Modem

                                                                                  Type:FCP-UT/FCP-UR Message

                                                                                  Description:1 fiber interface;1USB2.0 interface;Transmit one USB2.0, and expand to four USB interfaces at the remote end.

                                                                                  Product Description
                                                                                          This series of USB 2.0 fiber modem consists of a transmitter and a receiver. The USB interface(USB2.0) of the host computer is extended to a remote terminal and expanded to four USB ports through a single-mode or multi-mode optical fiber. Maximum transmission distance is 10KM( single mode fiber). Support USB1.1 and 2.0 type high-speed cameras, hard disk drives, printers, scanners, audio devices, touch screens, game controllers and other devices. This product can be applied in video conference, multimedia information publishing, governments departments, medical systems, commercial displays, multimedia function rooms, security monitoring, utilities and other fields.
                                                                                  Functional Properties
                                                                                  ◆ Compatible with USB2.0 and USB1.1 protocols, support USB cameras, printers, USB flash drives, scanners, touch screens and other devices;
                                                                                  ◆ Automatic recognition of high-speed(25Mbps~480Mbps), full-speed(500Kbps to 12Mbps), and low-speed( 10Kbps to 1.5Mbps) USB devices;
                                                                                  ◆ Optical fiber transmission distance 10KM( single mode fiber);
                                                                                  ◆ The optical fiber extends to the remote end and expands to four USB ports, total current up to 2000mA;
                                                                                  ◆ Fiber transmission, no drive, compatible with any system, plug and play;

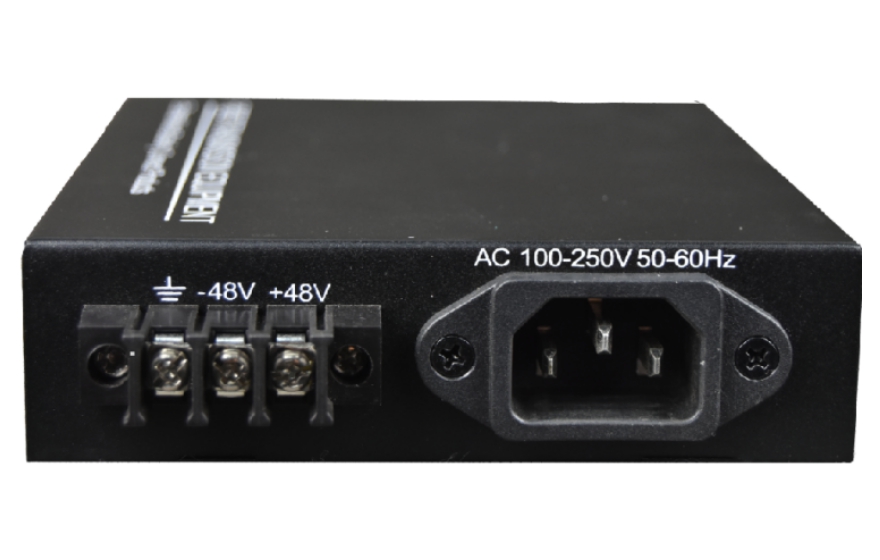

                                                                                  ◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc.
                                                                                  Technical Parameters
                                                                                  ◆ Ethernet optical interface
                                                                                  Number of Fiber Ports: 1
                                                                                  Fiber core ：Single fiber/dual fiber
                                                                                  Connector：FC/SC/ST/LC(SFP)
                                                                                  Wavelength：850nm/1310nm multi mode；1310nm/1550nm single mode
                                                                                  Transmission distance：0~10Km
                                                                                  Typical output power:
                                                                                  Single mode 1310/1550nm: >-9dBm
                                                                                  Multi-mode 850nm:-18dBm
                                                                                  Multi-mode 1310nm:-25dBm
                                                                                  Receiver Sensitivity: -28dBm~- 40dBm
                                                                                  ◆ USB2.0 interface
                                                                                  Standard: USB2.0
                                                                                  High-speed（25Mbps～480Mbps）
                                                                                  Full-speed（500Kbps～12Mbps）
                                                                                  Low-speed（10Kbps～1.5Mbps）
                                                                                  Total current: Max up to 2000mA
                                                                                  ◆ Environmental indicators
                                                                                  Operating temperature: -10 ℃ - +60 ℃
                                                                                  Storage temperature: -40 ℃ - +85 ℃
                                                                                  Humidity: 0% -95% (non-condensing)
                                                                                  MTBF:> 100,000 hours

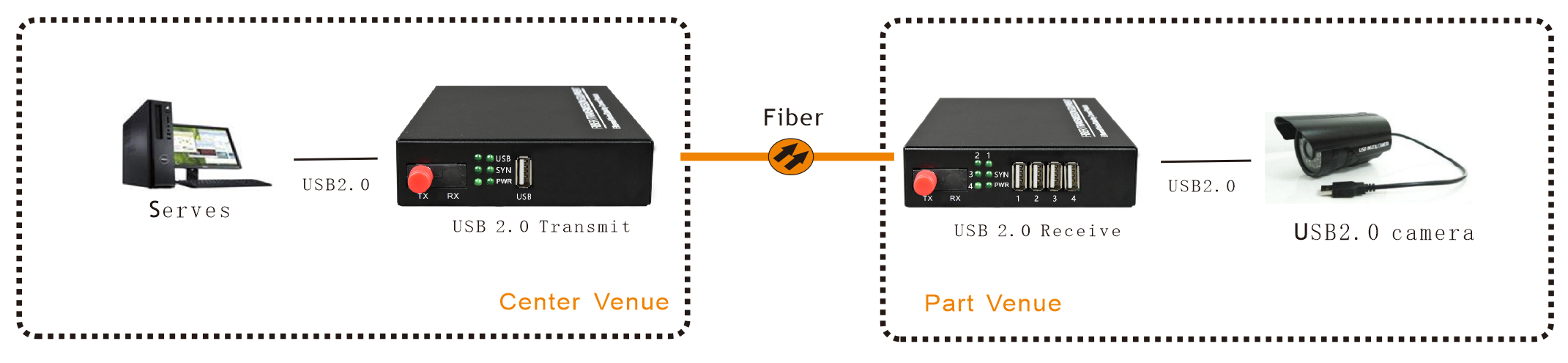

                                                                                  Application Scheme
                                                                                  USB 2.0 Fiber Modem
                                                                                  ?
