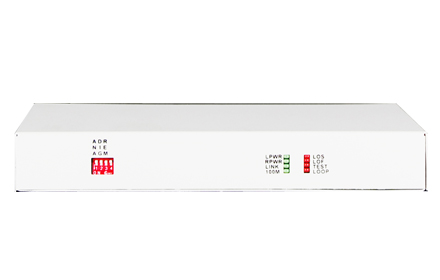

                                                                                  Co-Directional 64K-FE Converter

                                                                                  Type:FCC-E1tF1 Message

                                                                                  Description:10 / 100M Ethernet data transmission channel in the same direction on the G.703 (Co-Directional G.703), Ethernet rate 64K

                                                                                  Product Description
                                                                                            The G.703 (Co-Directional G.703) interface divides 64Kbps cycle into 4 unit intervals, it uses“0101” represent  “0”, “1100” represent “1". By alternating transformation polarity of the adjacent block, binary signals convert three-level signals. In every 8th group destroyed block of alternating polarity, thus to transmit 8KHz timing signal. By the above coding, G.703 co-directional 64Kbps signal could achieve transmitting the timing signal of 64KHz and 8KHz and 64KHz and the data signal of 64Kbit/s in the same direction with a pair balanced line.
                                                                                            This interface converter provides one co-directional G.703 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the G.703 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide G.703 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

                                                                                  Functional Properties

                                                                                  ?  Based on self -copyright  IC
                                                                                  ?  Can Realize Ethernet data transmission in one Co-directional G.703 circuit
                                                                                  ?  Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
                                                                                  ?  The local device can manage the remote device
                                                                                  ?  Have the function of G.703 loop back check, and indicate on LED
                                                                                  ?  Can differentiate the reason of Co-directional G.703 lose signal is that the remote device power-off or directional G.703 line broken
                                                                                  ?  Ethernet interface supports 10M/100M, half/full duplex auto- adaptable, supports VLAN
                                                                                  ?  Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable );
                                                                                  ?  Provide 2 clock types: Co-Directional G.703 master clock and G.703 line clock;
                                                                                  ?  The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)
                                                                                  ?  Have three Loop Back Mode: G.703 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote Ethernet

                                                                                       interface Loop Back(REM)
                                                                                  ?  Support self-adaptable 120 Ohm balance;


                                                                                  Technical Parameters
                                                                                  u   Co-Directional G.703 Interface

                                                                                      Interface Standard:      comply with protocol ITU-T G.703;

                                                                                      Interface Rate:             64Kbps±50ppm;
                                                                                      E1 Impedance:             120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Maximum Transmission Distance: up to 500m
                                                                                  u   Ethernet interface (10/100M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                      Piece Weight: 1.2KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C

                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

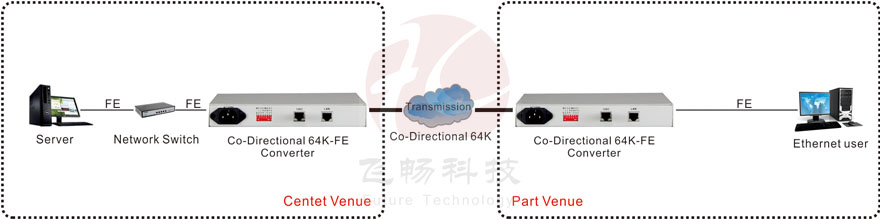

                                                                                  Application Scheme
