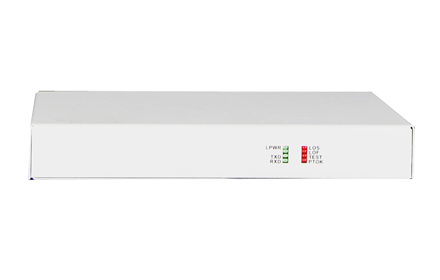

                                                                                  Co-Directional 64K-V.35 Converter

                                                                                  Type:FCC-E1tV1 Message

                                                                                  Description:Co-Directional 64K-V.35 Converter, V.35 rate 64K

                                                                                  Product Description

                                                                                              The G.703 (Co-Directional G.703) interface divides 64Kbps cycle into 4 unit intervals, it uses“0101” represent  “0”, “1100” represent “1". By alternating transformation polarity of the adjacent block, binary signals convert three-level signals. In every 8th group destroyed block of alternating polarity, thus to transmit 8KHz timing signal. By the above coding, G.703 co-directional 64Kbps signal could achieve transmitting the timing signal of 64KHz and 8KHz and 64KHz and the data signal of 64Kbit/s in the same direction with a pair balanced line.

                                                                                              64K-V.35/V.24interface converter provides the physical layer conversion between ITU-T co-directional 64K G.703 standard E1 interface and standard V.35/V.24 interface. It provides secure and seamless connectivity for communication between different interface device in the network. The E1 channel timeslots of the transmission device are available for use. Device that needs to be transmitted data only be V35/V24 output. The data interface mode is DCE, which can be docked with the DTE or DCE device.


                                                                                  Functional Properties

                                                                                  ? Based on self -copyright  IC

                                                                                  ?   Provide 2 clock types: Co-Directional G.703 master clock and G.703 line clock;

                                                                                  ?   Have two Loop Back Mode: G.703 interface Loop Back , V.35 interface Loop Back

                                                                                  ?   Have pseudo random code test function, easy the installation

                                                                                  ?   Support 120 Ohm balance;

                                                                                  ?   V.35 interface supports hot-plug

                                                                                  ?   Provide 3 clock types: Internal clock, External clock,E1 line clock;

                                                                                  ?   AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

                                                                                  Technical Parameters
                                                                                  u   Co-Directional G.703 Interface

                                                                                      Interface Standard:      comply with protocol ITU-T G.703;

                                                                                      Interface Rate:             64Kbps±50ppm;
                                                                                      E1 Impedance:             120Ω (balance);
                                                                                      Jitter tolerance:            In accord with protocol G.742 and G.823
                                                                                      Maximum Transmission Distance: up to 500m
                                                                                  u   V.35/V.24 interface

                                                                                      Interface rate:              64Kbps
                                                                                      Interface Standard:

                                                                                      Compatible with V.35/V.24 standard

                                                                                      Connector:                  DB25

                                                                                      Connect Mode:         DCE

                                                                                      Clock Type:                G.703 internal clock, external clock

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size :       216X140X31mm( WX DXH))

                                                                                      Simple packaging : 274X193 X84mm ( WX DXH)

                                                                                      Piece Weight: 1.2KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C

                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

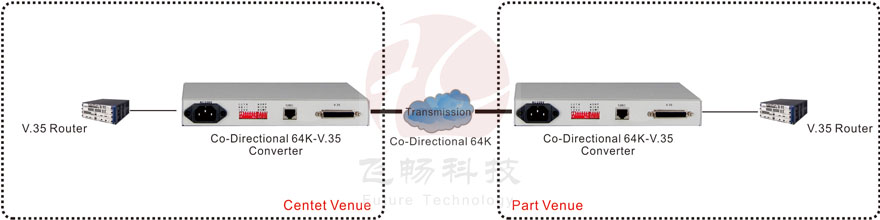

                                                                                  Application Scheme
