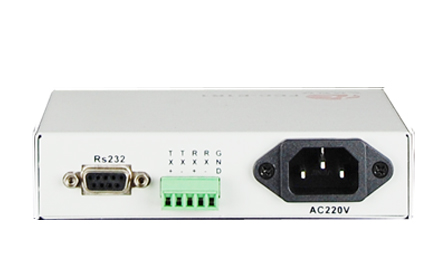

                                                                                  CAN BUS Fiber Modem （Desktop Tpye）

                                                                                  Type: Message

                                                                                  Description:

                                                                                  Product Description
                                                                                                 The cats can achieve optical fiber CAN CAN bus signals are converted to optical signals on optical fiber transmission, extended the role played CAN bus communication distance, and because the use of optical fiber communication, to solve the electromagnetic interference, ground loop interference and lightning damage, greatly improving the reliability of data communications, security and confidentiality, can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banks, electricity and electromagnetic interference environment departments have special requirements and systems.

                                                                                  Functional Properties
                                                                                  ? Based on proprietary integrated circuit;
                                                                                  ? Provide a CAN bus interface, an optical port
                                                                                  ? CAN transparent data transmission, without any set
                                                                                  ? CAN interface Maximum number of nodes 128
                                                                                  ? CAN interface rate 0-500Kbps
                                                                                  ? CAN interface speed in line with international CAN1.0, CAN2.0 standard
                                                                                  ? multiple power mode options: AC220V, DC-48V / DC24V etc.

                                                                                  ? DC-48V / DC24V power supply with automatic polarity detection function,

                                                                                         when installed without distinction between positive and negative

                                                                                  ? CAN interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5)

                                                                                         Short circuit current wave 8 / 20μs, open standard peak output voltage 6KV

                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u   CAN Bus interface

                                                                                      Rate: 0-500Kbps

                                                                                      Interface characteristics: compliance with international CAN1.0, CAN2.0 standard
                                                                                      Connector: Phoenix terminal
                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                      Product Size:         103X93X28mm(WXDXH)

                                                                                      Simple packaging:   200X176X55mm(WXDXH)

                                                                                      Piece Weight :      1.2KG

                                                                                   u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

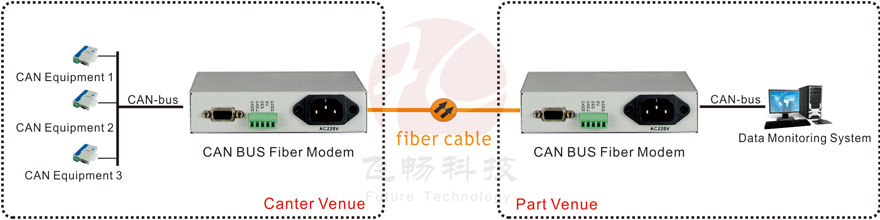

                                                                                  Application Scheme

                                                                                  Applications
