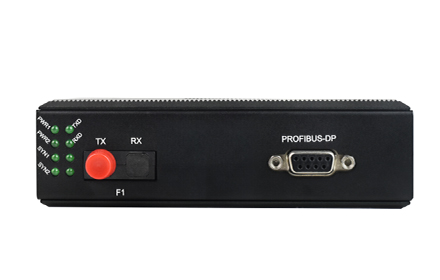

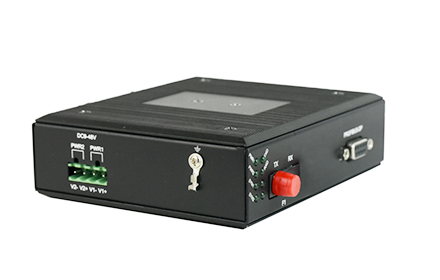

                                                                                  Industrial rail 1 port Profibus-DP Multiplexer

                                                                                  Type:FCP-P1G Message

                                                                                  Description:This series of equipment using large FPGA design using the original technology can support a channel Profibus-DP to fiber optic repeater communication rate 0-12Mpbs. IP40 protection grade wavy aluminum reinforced case 35mm DIN rail mo

                                                                                  Product Description
                                                                                  This series of equipment using large FPGA design using the original technology can support a channel Profibus-DP to fiber optic repeater communication rate 0-12Mpbs. IP40 protection grade wavy aluminum reinforced case 35mm DIN rail mounting AC & DC (9~55V) wide power input power supply redundancy and isolation protection. -40~75°C operating temperature range able to meet the requirements of various industrial sites providing convenient fiber optic communication solutions
                                                                                  Functional Properties
                                                                                  The device is used in pair the signal input terminal a signal output terminal;
                                                                                  ?Provide 1 Profibus DP field bus communication baud rate adaptive 9600-12Mbps;
                                                                                  ?Multimode/single mode fiber optional multimode can transmit 2KM single mode can transmit 20-120KM ST/SC/FC interface is optional;
                                                                                  ?With signal fault protection function; omnidirectional display of electrical interfaces and fiber operating conditions
                                                                                  ?Profibus DP interface anti-radar to IEC61000-4-5 (8/20μS). Differential mode: 6KV impedance (2Ω); Common mode: 6KV impedance (2Ω) standard;
                                                                                  ?Support wide range of 9-48V AC and DC input support internal isolation redundant dual power input power supply overload protection anti-reverse protection；
                                                                                  ?Meet the industrial four-level electromagnetic compatibility requirements;
                                                                                  ?Super lightning protection function: lightning protection anti-induction high voltage anti-surge etc；
                                                                                  ?Fanless efficient heat dissipation reducing repair time；
                                                                                  ?IP40 enclosure protection level can withstand the harsh environment；
                                                                                  ?DIN 35mm rail or wall mount；
                                                                                  ?Wide temperature type: working temperature -40 ° C ~ +85 ° C；
                                                                                  Technical Parameters
                                                                                  ◆Fiber optic
                                                                                  Optical port: 1
                                                                                  Optical fiber: single fiber and dual fiber
                                                                                  Fiber Interface: FC/SC/ST/LC (SFP)
                                                                                  Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
                                                                                  No relay transmission distance: 20~120Km
                                                                                  Typical transmit power:
                                                                                      Single mode 1310/1550nm: ≥-9dBm
                                                                                      Multimode 850nm: -18dBma
                                                                                      Multimode 1310nm: -25dBm
                                                                                  Acceptable sensitivity range: -28dBm~- 40dBm
                                                                                  ◆Profibus DP interface
                                                                                  Standard：Support Profibus DP standard
                                                                                  Rate：9.6kBit/s、19.2 kBit/s、45.45kBit/s、 93.75k kBit/s、187.5kBit/s、500kBit/s、 1.5MBit/s、6MBit/s and 12MBit/s.
                                                                                  Physical interface： 9-pin D-Sub jack connector with pin definitions in accordance with Profibus DP protocol specifications
                                                                                  Rate setting: 9600-12Mbps/s automatic identification
                                                                                  Signal delay (electrical port): ≤11Bit
                                                                                  Terminal resistance: This unit does not have a terminating resistor please connect as needed
                                                                                   ◆Working environment
                                                                                  Working temperature: -40℃—+85℃
                                                                                  Storage temperature:  -40℃—+85℃
                                                                                  Working humidity: 0%—95%（no condensation）
                                                                                  MTBF：   ＞100000 hours

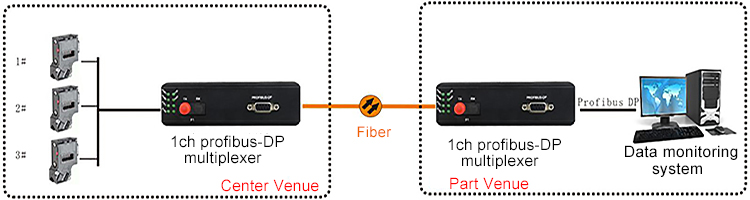

                                                                                  Application Scheme




                                                                                  ?
