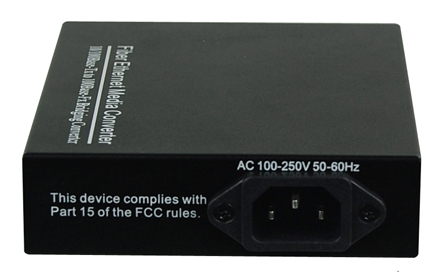

                                                                                  FE Fiber Media Converter（ internal power）

                                                                                  Type:FCMB-F1 Message

                                                                                  Description:1*FE+1*100Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

                                                                                  Product Description
                                                                                                 This series of products are IEEE802.3 Ethernet media converter, can realize 10/100Base-T twisted pair and 10/100Base-FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100M transmission rate.
                                                                                  Functional Properties
                                                                                  ? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
                                                                                  ? monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
                                                                                  ? support full and half duplex network communication, with auto-negotiation capability;

                                                                                  ? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used

                                                                                         to support up to 1600-byte Ethernet packets;

                                                                                  ? Support FX half / full duplex and link failure alarm switch selection;
                                                                                  ? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
                                                                                  ? low power consumption. Low heat, stable operation for a long time;
                                                                                  ? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
                                                                                  Technical Parameters

                                                                                  u   Ethernet UTP Interface

                                                                                      Interface rate:              10/100 M, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u  Optical Ethernet interface

                                                                                      Wave Length:          1310nm, 1550nm

                                                                                      Interface rate:              100 M, half/full duplex

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                      MAC Address Capability: 4096

                                                                                      Connector:                  FC/SC

                                                                                      Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

                                                                                      Transmission distance may also be limited by fiber optic bandwidth.

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                     Product size:   140 X110 X30 mm(WXDXH)

                                                                                     Simple packaging: 295X225X84mm( WXDXH)

                                                                                     Piece weight:  0.75KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

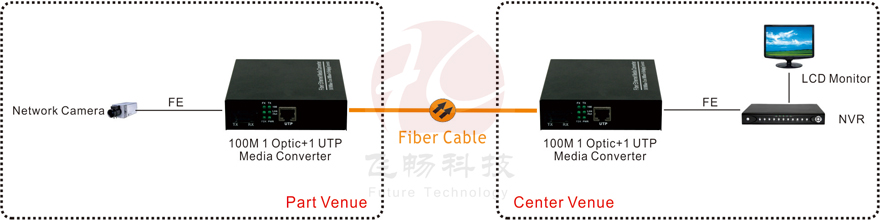

                                                                                  Application Scheme

                                                                                  Applications
