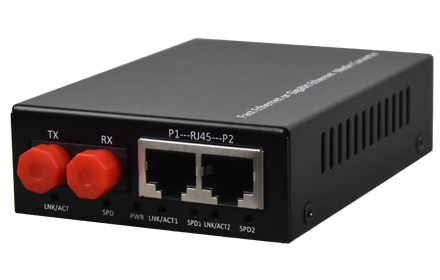

                                                                                  2GE fiber media converter(external power)

                                                                                  Type:FCM-G2L-B Message

                                                                                  Description:2 * 10 / 100/1000M fiber media converter，standard 0-25KM ，external power supply, and three anti-function.

                                                                                  Product Description
                                                                                     This series of products are IEEE802.3 Ethernet media converter, can be achieved between two media 10/100/1000M twisted pair fiber medium converting or extend the network transmission distance of optical fiber network, mainly used for long distance (20/40/60/80/100 km) transmission, the transmission speed of full support for 10/100/1000M.
                                                                                  Functional Properties
                                                                                  ? International standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;
                                                                                  ? Monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
                                                                                  ? Support full and half duplex network communication, with auto-negotiation capability;
                                                                                  ? VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;
                                                                                  ? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
                                                                                  ? Low power consumption. Low heat, stable operation for a long time;
                                                                                  ? Single fiber and within the external power supply options, expand the user's needs;
                                                                                  ? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
                                                                                  Technical Parameters
                                                                                  u Fiber
                                                                                  Multi-mode Fiber
                                                                                  50/125um, 62.5/125um,
                                                                                  Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)
                                                                                  Wave Length: 820nm
                                                                                  Transmitting power: -12dBm (Min) ~-9dBm (Max)
                                                                                  Receiver sensitivity: -28dBm (Min)
                                                                                  Link budget: 16dBm
                                                                                  Single-mode Fiber
                                                                                  8/125um, 9/125um
                                                                                  Maximum transmission distance: 40Km
                                                                                  Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
                                                                                  Wave Length: 1310nm
                                                                                  Transmitting power: -9dBm (Min) ~-8dBm (Max)
                                                                                  Receiver sensitivity: -27dBm (Min)
                                                                                  Link budget: 18dBm
                                                                                  u Ethernet interface(10/100/1000M)
                                                                                  Interface rate:   10/100 Mbps, half/full duplex auto-negotiation
                                                                                  Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
                                                                                  MAC Address Capability:  4096
                                                                                  Connector:    RJ45, support Auto-MDIX
                                                                                  u Working environment
                                                                                  Working temperature: -10°C ~ 50°C
                                                                                  Working Humidity: 5%~95 % (no condensation)
                                                                                  Storage temperature: -40°C ~ 80°C
                                                                                  Storage Humidity: 5%~95 % (no condensation)

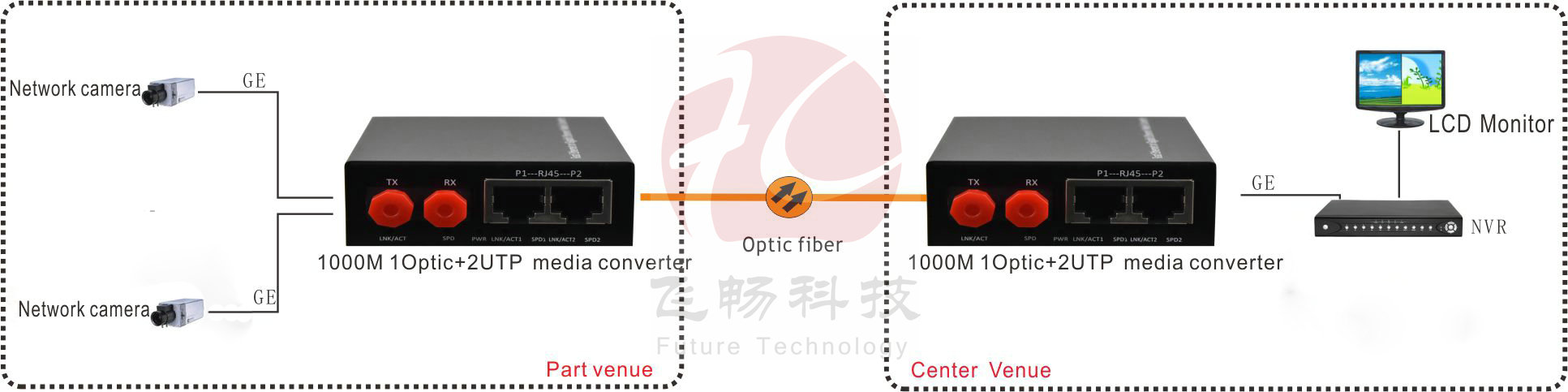

                                                                                  Application Scheme

                                                                                  Applications


                                                                                  DataSheet Download
