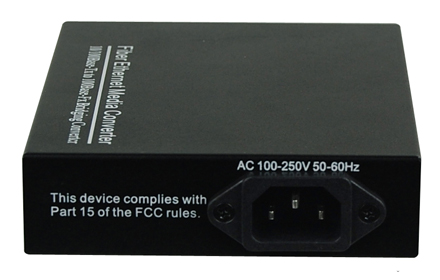

                                                                                  GE Fiber Media Converter（ internal power）

                                                                                  Type:FCMB-G1e Message

                                                                                  Description:1*GE+1*1000Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

                                                                                  Product Description
                                                                                                This series of products are IEEE802.3 Ethernet media converter, can be achieved between two media 10/100/1000M twisted pair fiber medium converting or extend the network transmission distance of optical fiber network, mainly used for long distance (20/40/60/80/100 km) transmission, the transmission speed of full support for 10/100/1000M.
                                                                                  Functional Properties
                                                                                  ? international standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;
                                                                                  ? monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
                                                                                  ? support full and half duplex network communication, with auto-negotiation capability;
                                                                                  ? VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;
                                                                                  ? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
                                                                                  ? low power consumption. Low heat, stable operation for a long time;
                                                                                  ? single fiber and within the external power supply options, expand the user's needs;
                                                                                  ? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
                                                                                  Technical Parameters

                                                                                  u  Fiber

                                                                                           Multi-mode Fiber

                                                                                      50/125um, 62.5/125um,

                                                                                      Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

                                                                                      Transmitting power: -12dBm (Min) ~-9dBm (Max)

                                                                                      Receiver sensitivity: -28dBm (Min)

                                                                                      Link budget: 16dBm

                                                                                          Single-mode Fiber

                                                                                      8/125um, 9/125um

                                                                                      Maximum transmission distance: 40Km

                                                                                      Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

                                                                                      Wave Length: 1310nm

                                                                                      Transmitting power: -9dBm (Min) ~-8dBm (Max)

                                                                                      Receiver sensitivity: -27dBm (Min)

                                                                                      Link budget: 18dBm

                                                                                  u  Ethernet interface(100/100/1000M)

                                                                                      Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

                                                                                      Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

                                                                                     MAC Address Capability: 4096

                                                                                      Connector:                  RJ45, support Auto-MDIX

                                                                                  u   Power

                                                                                      Power supply: AC180V ~ 260V；DC –48V；DC +24V

                                                                                      Power consumption: ≤10W

                                                                                  u   Dimension

                                                                                     Product size:   140 X110 X30mm(WXDXH)

                                                                                     Simple packaging: 295X225X84mm( WXDXH)

                                                                                     Piece weight:  0.75KG

                                                                                  u  Working environment

                                                                                      Working temperature: -10°C ~ 50°C
                                                                                      Working Humidity:        5%~95 % (no condensation)

                                                                                      Storage temperature:   -40°C ~ 80°C
                                                                                      Storage Humidity:         5%~95 % (no condensation)

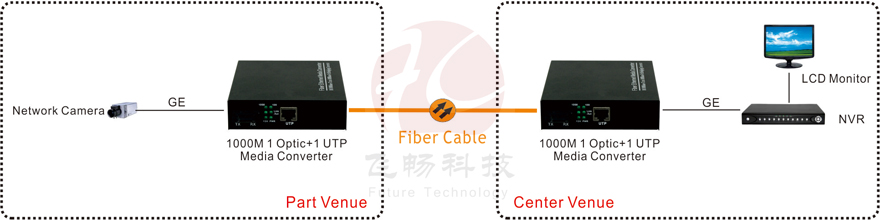

                                                                                  Application Scheme

                                                                                  Applications
