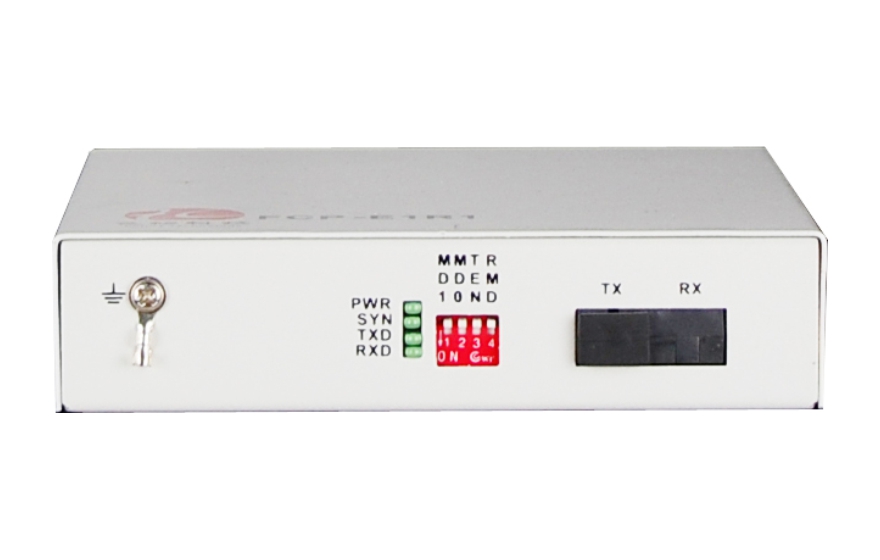

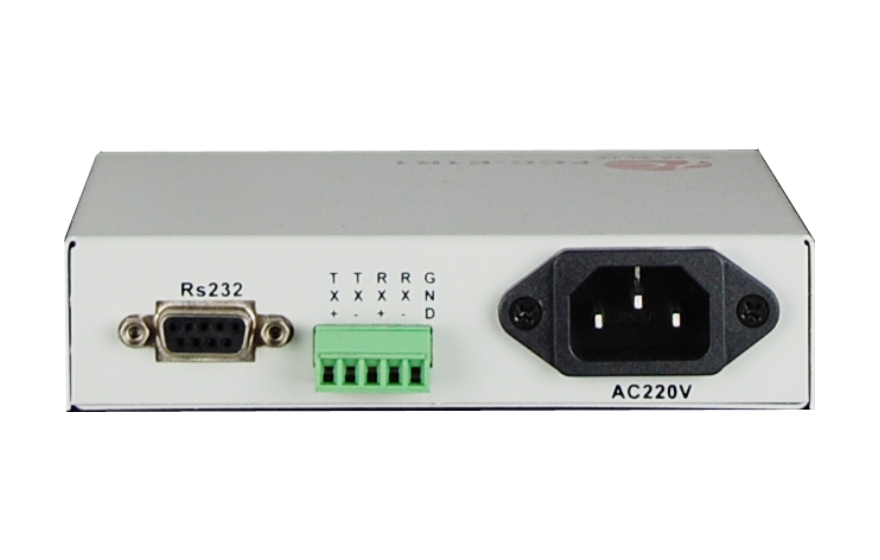

                                                                                  CAN BUS Fiber Modem （Desktop Type）

                                                                                  Type:FCP-C1 Message

                                                                                  Description:One channel CAN fiber modem;One channel CAN fiber modem;Power supply: AC180V ~ 260VDC –48VDC +24V.

                                                                                  Product Description
                                                                                          The device can achieve optical fiber CAN bus signals converted to optical signals on optical fiber transmission extended the CAN bus communication distance and because the use of optical fiber communication solve the electromagnetic interference ground loop interference and lightning damage greatly improving the reliability of data communications security and confidentiality can be widely used in various industrial control process control and traffic control and other occasions especially for banks electricity and electromagnetic interference environment departments have special requirements and systems..
                                                                                  Functional Properties
                                                                                  ◆ based on proprietary integrated circuit;
                                                                                  ◆ Provide a CAN bus interface an optical port;
                                                                                  ◆ CAN transparent data transmission without any set;
                                                                                  ◆ CAN interface Maximum number of nodes 128;
                                                                                  ◆ CAN interface rate 0-500Kbps;
                                                                                  ◆ CAN interface speed in line with international CAN1.0 CAN2.0 standard multiple power mode options: AC220V DC-48V / DC24V etc;
                                                                                  ◆ DC-48V / DC24V power supply with automatic polarity detection function when installed without distinction between positive and negative;
                                                                                  ◆ CAN interface with lightning protection lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs open standard peak output voltage 6KV.
                                                                                  Technical Parameters
                                                                                  ◆ Fiber
                                                                                  Multi-mode Fiber
                                                                                  50/125um 62.5/125um
                                                                                  Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)
                                                                                  Wave Length: 820nm
                                                                                  Transmitting power: -12dBm (Min) ~-9dBm (Max)
                                                                                  Receiver sensitivity: -28dBm (Min)
                                                                                  Link budget: 16dBm
                                                                                  Single-mode Fiber
                                                                                  8/125um 9/125um
                                                                                  Maximum transmission distance: 40Km
                                                                                  Transmission distance: 40Km @ 9 / 125um single mode fiberattenuation (0.35dbm/km)
                                                                                  Wave Length: 1310nm
                                                                                  Transmitting power: -9dBm (Min) ~-8dBm (Max)
                                                                                  Receiver sensitivity: -27dBm (Min)
                                                                                  Link budget: 18dBm
                                                                                  ◆ CAN Bus interface
                                                                                  Rate:  0-500Kbps
                                                                                  Interface characteristics: compliance with international CAN1.0 CAN2.0 standard
                                                                                  Connector: Phoenix terminal
                                                                                  ◆ Working environment
                                                                                  Working temperature: -10°C ~ 50°C
                                                                                  Working Humidity: 5%~95 % (no condensation)
                                                                                  Storage temperature: -40°C ~ 80°C
                                                                                  Storage Humidity: 5%~95 % (no condensation)

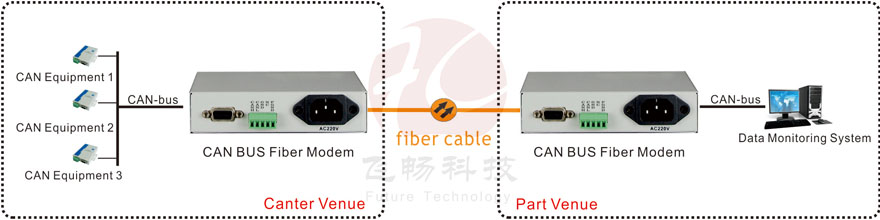

                                                                                  Application Scheme
                                                                                  CAN BUS Fiber Modem
                                                                                  ?
